DC Geared Motor
DC Motor – 3RPM – 12Volts
SKU: 2143₹ 175.00(inc GST)
₹ 148.31 (+18% GST extra)
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 3 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 16
- Stall Torque(kg-cm): 60
60 RPM BO Motor – Straight
SKU: 25339₹ 55.00(inc GST)
₹ 46.61 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 60 RPM
- Rated Torque: 1 Kgcm
100 RPM BO Motor – Straight
SKU: 2154₹ 55.00(inc GST)
₹ 46.61 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 100 RPM
- Rated Torque: 1 Kgcm
150 RPM BO Motor- L Shape
SKU: 2166₹ 70.00(inc GST)
₹ 59.32 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 150 RPM
- Rated Torque: 0.8 Kgcm
DC Motor – 10RPM – 12Volts
SKU: 5643₹ 175.00₹ 158.00(inc GST)
₹ 133.9 (+18% GST extra)
You save: ₹ 17.00
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 10 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 7
- Stall Torque(kg-cm): 28

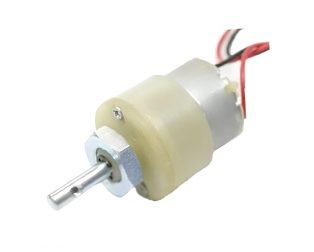

DC Motor – 45RPM – 12Volts
SKU: 356386₹ 175.00₹ 158.00(inc GST)
₹ 133.9 (+18% GST extra)
You save: ₹ 17.00
- The metal gears have better wear and tear properties.
- The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 30 RPM at 12V, the motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 4.2
- Stall Torque(kg-cm): 16
DC Motor – 30RPM – 12Volts
SKU: 5653₹ 175.00₹ 158.00(inc GST)
₹ 133.9 (+18% GST extra)
You save: ₹ 17.00
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 30 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 5
- Stall Torque(kg-cm): 18.8
DC Motor – 60RPM – 12Volts
SKU: 5663₹ 175.00(inc GST)
₹ 148.31 (+18% GST extra)
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 60 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 3.6
- Stall Torque(kg-cm): 15
DC Motor – 100RPM – 12Volts
SKU: 5673₹ 175.00₹ 158.00(inc GST)
₹ 133.9 (+18% GST extra)
You save: ₹ 17.00
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 100 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 2.9
- Stall Torque(kg-cm): 11.4
DC Motor – 150RPM – 12Volts
SKU: 5683₹ 157.00(inc GST)
₹ 133.05 (+18% GST extra)
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 150 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
- Operating Voltage(V): 12
- Rated Torque(kg-cm): 2
- Stall Torque(kg-cm): 7.8

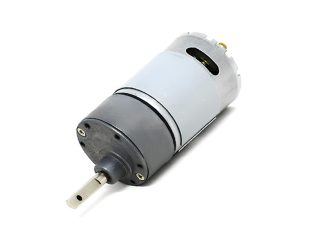

RS-37 10 RPM High Torque Side Shaft DC Geared Motor
SKU: 434462₹ 659.00₹ 593.00(inc GST)
₹ 502.54 (+18% GST extra)
You save: ₹ 66.00
RS-37 Gear motor is widely used for Industrial Applications. Carries torque greater as compared to Johnson Geared Motors and consumes less current as well. This motor has higher durability and is able to work for hours at a time
300 RPM L-Shape BO Motor
SKU: 103957₹ 75.00(inc GST)
₹ 63.56 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 300 RPM
- Rated Torque: 0.35 Kgcm
300 RPM Dual Shaft BO Motor-Straight
SKU: 104024₹ 69.00(inc GST)
₹ 58.47 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 300 RPM
- Rated Torque: 0.35 Kgcm
300 RPM BO Motor-Straight
SKU: 103984₹ 65.00(inc GST)
₹ 55.08 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 300 RPM
- Rated Torque: 0.35 Kgcm
100 RPM Dual Shaft BO Motor-Straight
SKU: 104043₹ 59.00(inc GST)
₹ 50 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 100 RPM
- Rated Torque: 0.35 Kgcm
100 RPM BO Motor – L Shape
SKU: 103841₹ 65.00(inc GST)
₹ 55.08 (+18% GST extra)
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 100 RPM
- Rated Torque: 1 Kgcm
