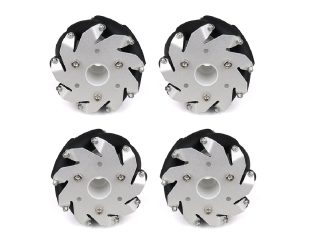

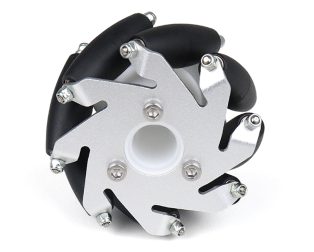

100mm Aluminium Mecanum wheels (Bearing type rollers) Right
100mm Aluminium Mecanum wheels (Bearing type rollers) Right 100mm Aluminium Mecanum wheels (Bearing type rollers) Right 100mm Aluminium Mecanum wheels (Bearing type rollers) Right 100mm Aluminium Mecanum wheels (Bearing type rollers) LEFT

100mm Aluminium Mecanum wheels (Bearing type rollers) Right

Availability: In stock
SKU: 1952

QUICK OVERVIEW

  1. Size: 4″ (100mm) Diameter,
  2. Thickness of wheel: 45mm
  3. Weight: 340 grams.
  4. Roller Material: Nitrile rubber
  5. Side plates: Aluminum(High-Grade alloy aluminum)
  6. Plate Thickness 2.5mm
  7. Bearing Type used: Single groove ball bearing, Double sealed.
  8. Holes for Mounting: PCD 47.5mm
  9. Maximum load capacity: 15KG
  10. Number of rollers: 9
  11. Plates each wheel: 2
  12. Body material: aluminum alloy
  13. Roller material: Rubber
  14. Spacer material: nylon

 3,790.00

(inc GST)

₹ 3211.86 (+18% GST extra)

In stock

Purchase this product now and earn 38 Robu Points!

The 100mm Aluminium Mecanum wheels (Bearing type rollers) allow a robot to achieve omnidirectional movement while supporting large weights.The 4″(100mm)  Mecanum wheel utilize 9 rollers positioned between 2 plates. These mecanum wheels are usually designed for movement in any direction. The rollers translate the force in the rotational direction of the wheel to a force normal to the wheel direction.

Compatible couplings :

Package Includes:

1 x 100mm Aluminium Mecanum wheels (Bearing type rollers) RIGHT
3 x m5×65 Allen Bolts for coupling

Specifications and Features:

  1. Size: 4″ (100mm) Diameter.
  2. Thickness of wheel: 45mm.
  3. Weight: 340 grams.
  4. Roller Material: Nitrile rubber.
  5. Side plates: Aluminum(High-Grade alloy aluminum).
  6. Plate Thickness 2.5mm.
  7. Bearing Type used: Single groove ball bearing, Double sealed.
  8. Holes for Mounting: PCD 47.5mm.
  9. Diameter of Holes: 5mm (m5 bolt compatible).
  10. Diameter of each wheel: 100mm.
  11. Length of roller: 19mm.
  12. Maximum load capacity: 15KG.
  13. Number of rollers: 9
  14. Plates each wheel: 2
  15. Body material: aluminum alloy
  16. Roller material: rubber
  17. Spacer material: nylon



Roller Type

Bearing

Body Material

Aluminium

Internal Diameter(ID)(mm)

18

Length of Roller

47.5

Load Capacity(Kg)

12-15 kg

Net weight

400g

Number of Plates

2

Number of Rollers per Wheel

9

Outer Diameter (OD)(mm)

100 mm(4 inch)

Roller Material

Nylon+ TPR

Spacer material

Nylon

Wheel Width

54 mm

Plate Thickness

2.5mm

Diameter of Holes

5 mm (M5 bolt compatible).

Holes for Mounting

PCD 47.5 mm.

Nut Type

Hex
Nyloc Nut.

Shipment Dimensions

15 x 15 x 8 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
