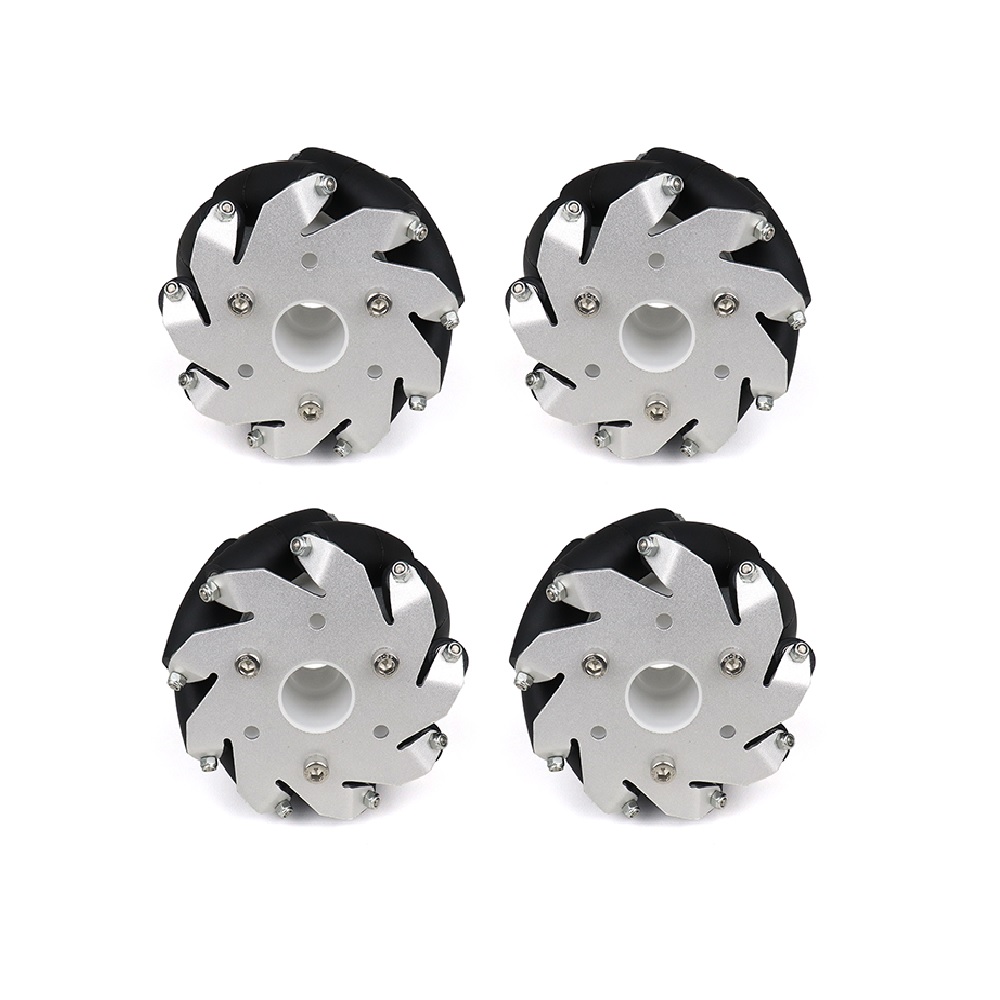

100mm Aluminium Mecanum wheels (Bush type rollers) Right
100mm Aluminium Mecanum wheels (Bush type rollers) Right 100mm-aluminum-mecanum-wheel-right-14092 100mm-aluminum-mecanum-wheel-right-14092-1 100mm-aluminum-mecanum-wheel-right-14092-3 100mm-mecanum-wheels-connection-diagram DSC_0175 DSC_0180

100mm Aluminium Mecanum wheels (Bush type rollers) Right

Availability: In stock
SKU: 2735

QUICK OVERVIEW

  1. Size :4″(100mm) Diameter
  2. Thickness of wheel: 50mm
  3. Weight: 340 grams.
  4. Roller Material: Nitrile rubber
  5. Side plates: Aluminum(High-Grade alloy aluminum)
  6. Plate Thickness 2.5mm
  7. Nut: Nylock Nut
  8. Bearing Type used: Single groove ball bearing, Double sealed.

 2,590.00

(inc GST)

₹ 2194.92 (+18% GST extra)

In stock

Purchase this product now and earn 26 Robu Points!

The 100mm Aluminium Mecanum wheels (Bush type rollers) allow a robot to achieve omnidirectional movement while supporting large weights.The 4″(100mm)  Mecanum wheel utilize 9 rollers positioned between 2 plates. These mecanum wheels are usually designed for movement in any direction. The rollers translate the force in the rotational direction of the wheel to a force normal to the wheel direction.

The Mecanum wheels allow a robot to achieve omnidirectional movement while supporting large weights.The 4″(100mm)  Mecanum wheel utilize 9 rollers positioned between 2 plates.

Package Includes:

1 x 100mm Aluminium Mecanum wheels (Bush type rollers) Right

3 x m5×65 Allen Bolts for coupling

Specifications and Features:

  1. Size :4″(100mm) Diameter
  2. Thickness of wheel: 50mm
  3. Weight: 340 grams.
  4. Roller Material: Nitrile rubber
  5. Side plates: Aluminum(High-Grade alloy aluminum)
  6. Plate Thickness 2.5mm
  7. Nut: Nylock Nut
  8. Bearing Type used: Single groove ball bearing, Double sealed.
  9. Holes for Mounting: PCD 47.5mm
  10. Diameter of Holes: 5mm (m5 bolt compatible)

Attachments and links:

 Drawing & Description

PDF ICON

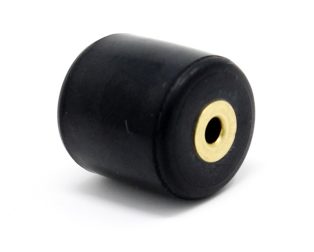

Roller Type

Bush

Body Material

Aluminium

Internal Diameter(ID)(mm)

18

Length of Roller

47.5

Load Capacity(Kg)

12-15 kg

Net weight

400g

Number of Plates

2

Number of Rollers per Wheel

9

Outer Diameter (OD)(mm)

100 mm(4 inch)

Roller Material

Nylon+ TPR

Spacer material

Nylon

Wheel Width

50 mm

Plate Thickness

2.5mm

Diameter of Holes

5 mm (M5 bolt compatible).

Holes for Mounting

PCD 47.5 mm.

Nut Type

Hex
Nyloc Nut.

Shipment Weight

0.6 kg

Shipment Dimensions

15 x 15 x 6 cm
