EasyMech 100mm Double Aluminium Omni Wheel (BEARING TYPE ROLLER)

Availability:

In stock


SKU: 1914
  1. Model: EasyMech100
  2. Diameter: 100 mm.
  3. Total Width: 39 mm.
  4. Axial OD: 18 mm.
  5. Load capacity: 25 kg.

 3,599.00

(Including GST)

In stock

Select below products to add together

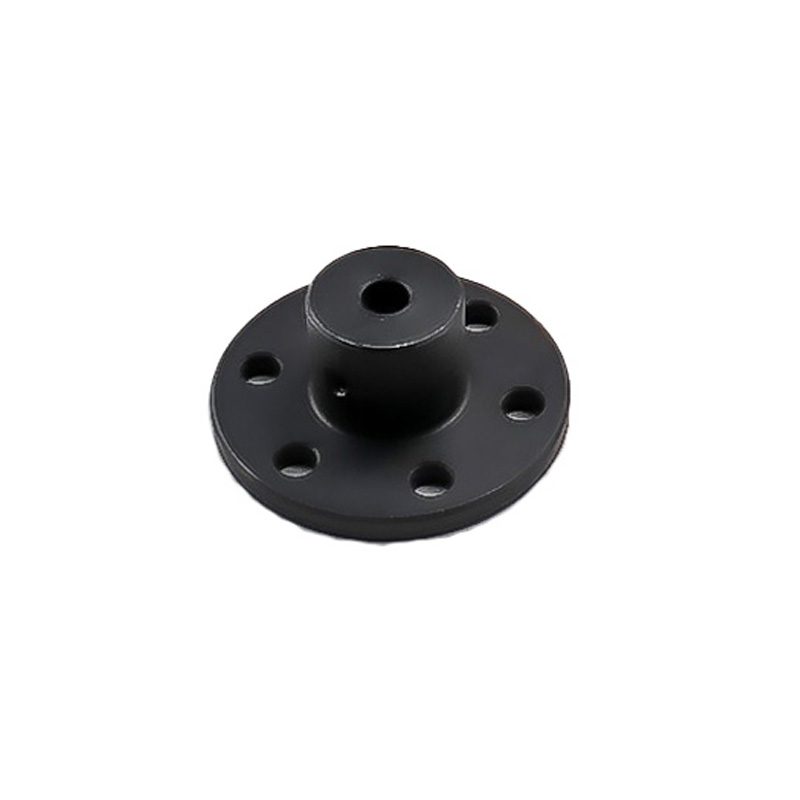

EasyMech ID-6mm Motor Coupling Hub (Small) ₹ 409
EasyMech ID-8mm Motor Coupling Hub (Small) ₹ 409
EasyMech ID-10mm Motor Coupling Hub (Small) ₹ 299

New Price: ₹ 3599


Purchase this product now and earn 36 Robu Points!

Very Low Stock. Order Now !



Have any issues, Get support here.
Have a bulk requirement, mail us to [email protected]
Didn’t Find what you are looking for?

Brand: EasyMech
Category: Omni Wheels
Tags: EasyMech, Holonomic wheel, HD Wheel, Omni Wheel, Robotic Wheel, Aluminum Omni Wheel

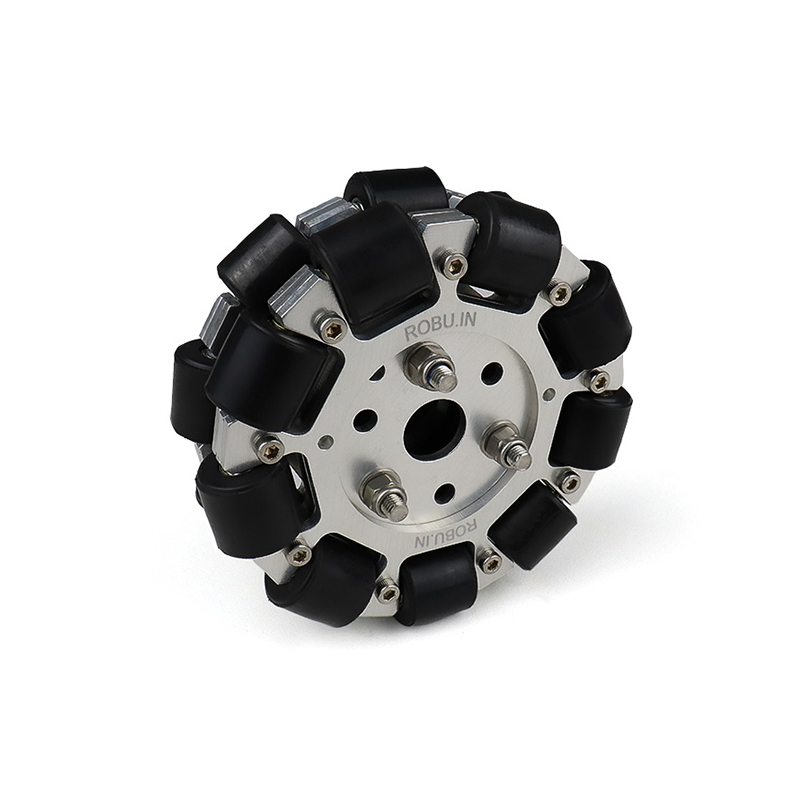

This is a EasyMech 100mm Double Aluminium Omni Wheel (BEARING TYPE ROLLER).

Our Omnidirectional wheels will make your application/robot move in all the direction!!!!!

These motor possess special design which includes Aluminum plates instead of Glass Fiber plates. The use of Aluminum gives good strength to this wheels and increases the loading capacity of the wheel. The wheel has the load capacity of 25kg.

The EasyMech 100mm Double Aluminium Omni Wheel gives your robot more controllable degrees of freedom as compared to conventional wheels which give only 2 degrees of freedom i.e moving forward and backward. The EasyMech Omni Wheels provide easy 360° movement; with rotational and sideways maneuverability.

Thus this is the mostly used sophisticated technology to convert a robot from Non-Holonomic to Holonomic. This omnidirectional wheels from EasyMech are used in robotics, trolleys, transfer conveyor, shipping carts, luggage and so on.

This motor is different than all other Omni wheels available at Robu.in as it has PCD of 35mm for mounting couplings. You can couple your wheel and motor using EasyMech’s Small Hub Coupling which has 35mm PCD.

So, what makes this wheels move in all direction? those are the small rollers along the wheel circumference. These Rollers are placed in such a way that the rotational axis of this rollers is perpendicular to the rotational axis of the main wheel. So, the Omni wheels can rotate in a forward and a backward direction like ordinary wheels and also rotate freely around itself i.e 360° rotation because of such two rotational axes within one wheel.

The EasyMech 100mm Double Aluminium Omni Wheel equips 3 aluminum discs for each wheel plate. They feature rubber rollers along the circumference of the wheel which avoids slipping while moving sideways and gives minimum friction in movement. The rollers of this wheels have two bearings to allow the wheel to move smoothly and easily in ANY direction.

We have the large number of motors available which are ready to be coupled with this wheel some of them are mentioned below or you can directly check our Motors Category for more,

>>> Planetary DC Geared Motor
>> DC Geared Motor with Encoder
>> Square Gear Box DC Motor


Features :

  1. Branded high-quality wheel
  2. It can bear loads around 25 kg.
  3. 6 disc assembly gives them good strength.
  4. These are heavy duty wheels.
  5. Compatible with couplings of PCD-35 mm

Package Includes :

1 x EasyMech 100mm Double Aluminium Omni Wheel


To know more about our brand EasyMech, please do read our following article,

What is EasyMech?

Model

EasyMech100

Body Material

Aluminium

Diameter (mm):

100

Total Body Width (mm)

39

Load Capacity(Kg/Wheel)

25

Pitch Circle Diameter (PCD) mm

35

Number of Plates

6

Number of Rollers per Wheel

18

Roller Type

Bearing

Roller Material

Nitrile Rubber.

Roller Diameter (mm)

19 mm

Roller Width (mm)

18

Weight (g):

360

Color:

silver

Shipping Weight 0.45 kg
Shipping Dimensions 11 × 11 × 6 cm
15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “EasyMech 100mm Double Aluminium Omni Wheel (BEARING TYPE ROLLER)”

There are no reviews yet.

Schematic

EasyMech 100mm Double Aluminium Omni Wheel (BEARING TYPE ROLLER)

What is EasyMech?

EasyMech is a brand of Robu.in which intends to make the life of users easy; by providing easy to use mechanical products.

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: India
