28BYJ-48 Stepper Motor DC 5V

Availability:

In stock


SKU: 1230924
  1. Rated voltage: 5V DC
  2. Reduction Ratio: 64:1
  3. Step Angle: 5.625° /64
  4. Frequency: 100Hz
  5. Self-positioning Torque: >34.3mN.m
  6. Friction torque: 600-1200 gf.cm
  7. Pull in torque: 300 gf.cm

 75.00

(Including GST)

In stock

Select below products to add together

10CM Female to Female Breadboard Jumper DuPont 2.54MM 1P-1P Cable 40 Pcs ₹ 29
ULN2003A Driver Module Stepper Motor Driver ₹ 53
ULN2003A Driver Module Stepper Motor Driver Board ₹ 44

New Price: ₹ 75


Purchase this product now and earn 1 Robu Point!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: Generic
Category: Small DC Motors

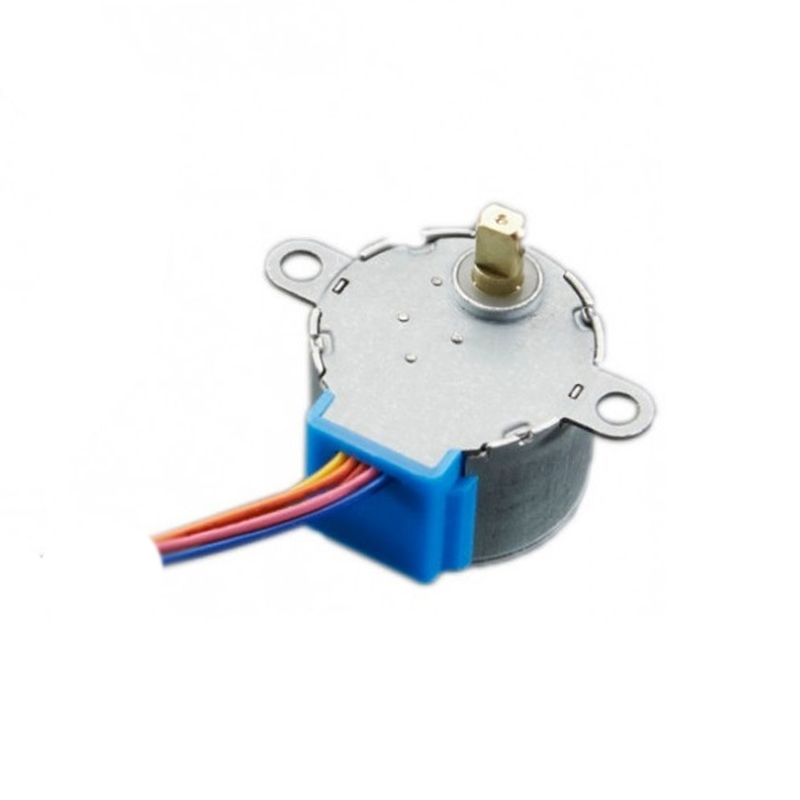

This  28BYJ-48 Stepper Motor  DC 5V is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.

Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed the quality of these compact stepper motors.

The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor that has 5-wires.

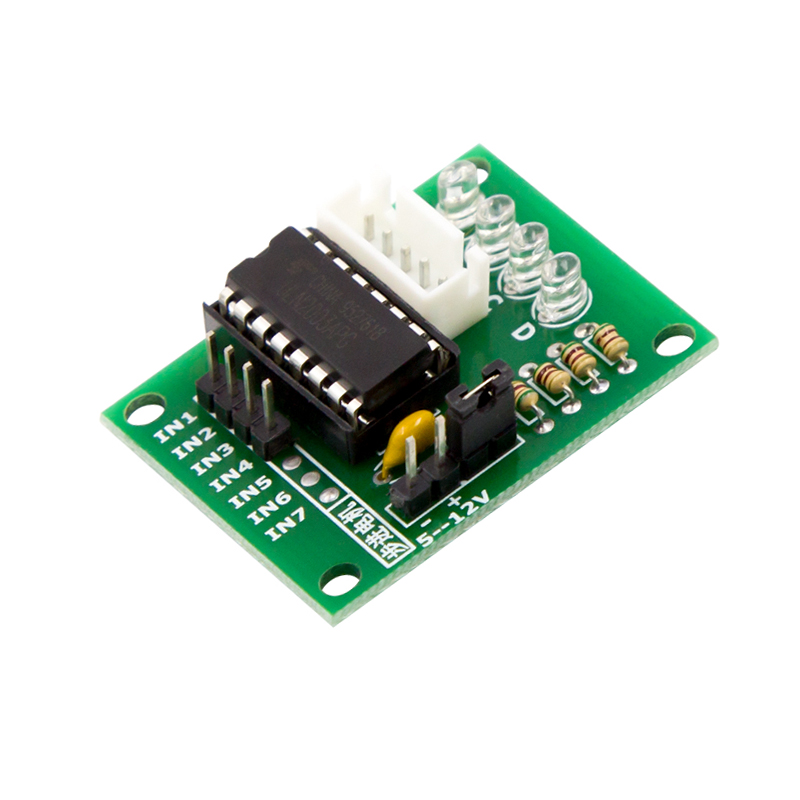

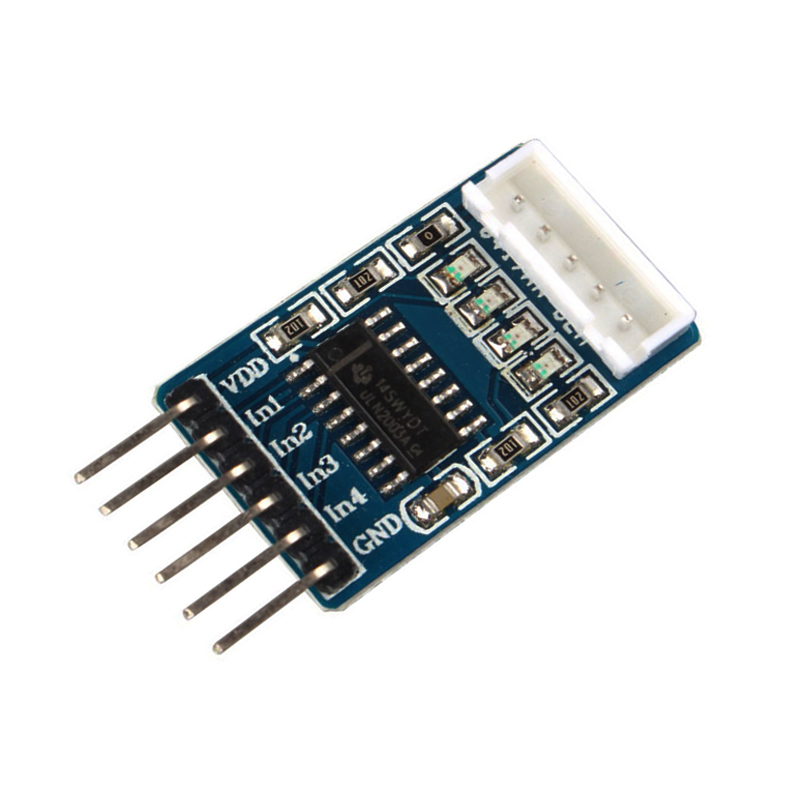

As stated before the pack contains ULN2003 Stepper Motor Driver which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor.

Note:

  1. The system is recommended to run on Half-step mode(8 step control signal sequence) for excellent performance experience.
  2. ULN2003 Stepper Motor Driver is not included in the package you have to buy it separately

Features :

  1. Brand new and high-quality product.
  2. Stepper motor with a standard interface, when used directly pluggable.
  3. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
  4. Compact size stepper motor perfect for small robotics applications.

Useful Links:

Control 28BYJ-48 Stepper Motor with ULN2003 Driver & Arduino




Package Includes :

1 x 28BYJ-48 Stepper Motor

SKU: 1230924 Category:
Reduction Ratio

64:1

Step Angle

5.625° /64

Frequency

100Hz

Self-positioning Torque

>34.3mN.m

Friction torque

600-1200 gf.cm

Pull-in torque

300 gf.cm

Shipping Weight 0.037 kg
Shipping Dimensions 14 × 8 × 4 cm
