Makerbase 7 Inch TFT70 V1.1 Full Color Screen for 3D Printers

Availability:

In stock


SKU: 1121270
  1. Operating Voltage: 24~24VDC
  2. 32-bit high-speed ARM chip
  3. Support WIFI function
  4. Display Size: 7 inch

 11,269.00

(inc GST)

In stock

Purchase this product now and earn 113 Robu Points!
Category: 3D Printer Display and Controller, Displays
Tags: 3D printer, TFT Display, 3D Printer Display, Touch Screen LCD

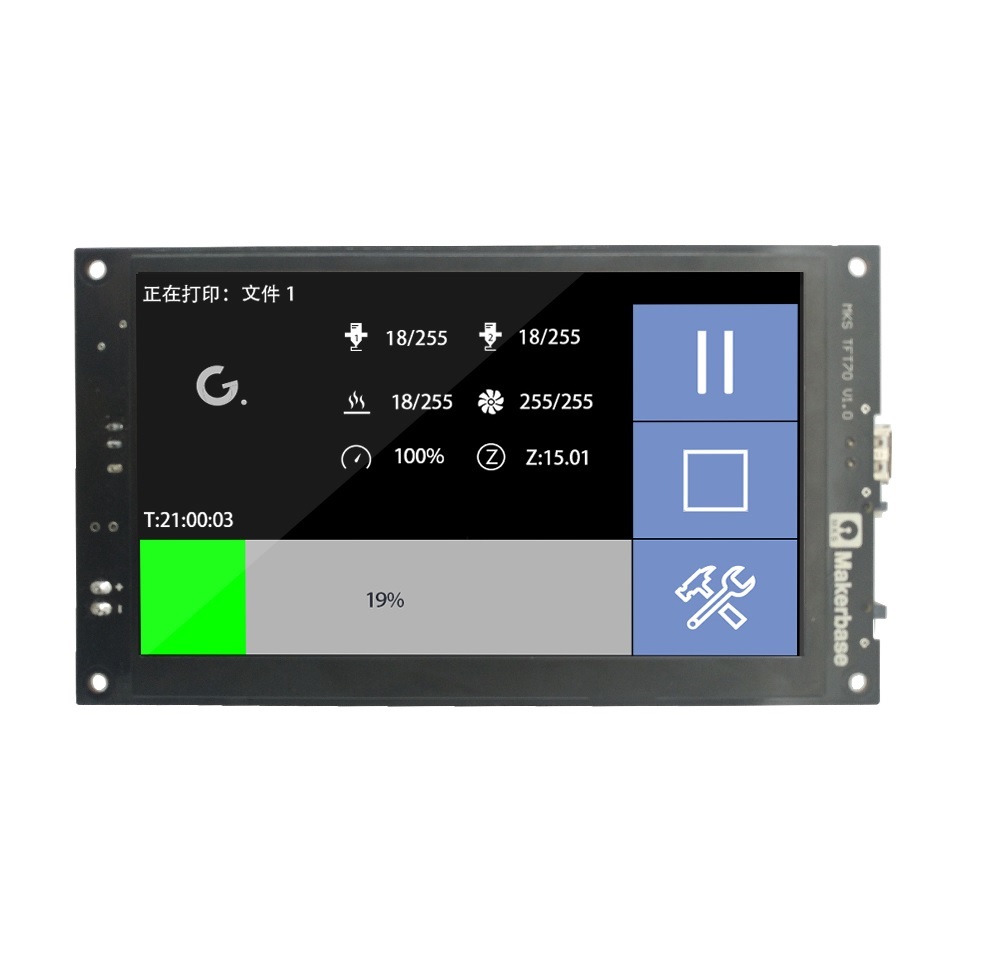

The Makerbase 7 Inch TFT70 V1.1 Full-Color Screen for 3D Printers has a simple operation interface and firmware can be easily upgraded through an SD card. The user interface can be customized and can be switched online in 7 languages, preview Gcode model picture, suitable for building the DIY 3D printer or replacement for the display.

Note: This Display needs an external 12~24V DC Power Supply which does not come with this display. You have to arrange it separately


Features:

  1.  Support online switching in 7 languages
  2.  Support preview file model display, display model picture in print
  3. 7.0 inch TFT touch screen, simple operation interface, high sensitivity
  4.  Support WIFI function, through mobile phone APP control or computer web control, mobile phone APP support Android, IOS system, support in English and Chinese
  5. Upgrade and configure firmware through SD card, the operation is simple and convenient
  6.  Boot logo and all buttons and other interfaces can be designed on their own; can customize up to 13 instructions
  7.  Support breakpoint continued to play function, power save function, broken material detection function, after the shutdown function
  8.  Support Main firmware, smoothie ware firmware

Specifications:

  1. Model: MKS TFT70 V1.1
  2. Size: 196.7 * 111mm
  3. Mounting Hole size: 185.7 * 100mm
  4. Colour touch screen: 7.0-inch touch screen
  5. Microprocessor: 32-bit STM32 processor
  6. Update method: SD file update
  7. Support storage system: SD card, U disk
  8. Supported file formats: Gcode
  9. Expandable modules: WIFI module, shutdown module after power off, material detection switch, continuous power off, external card slot.

Package Includes:

1 x Makerbase 7 Inch TFT70 V1.1 Full-Color Display

1 x 8-Pin Connecting Cable (50 cm)
