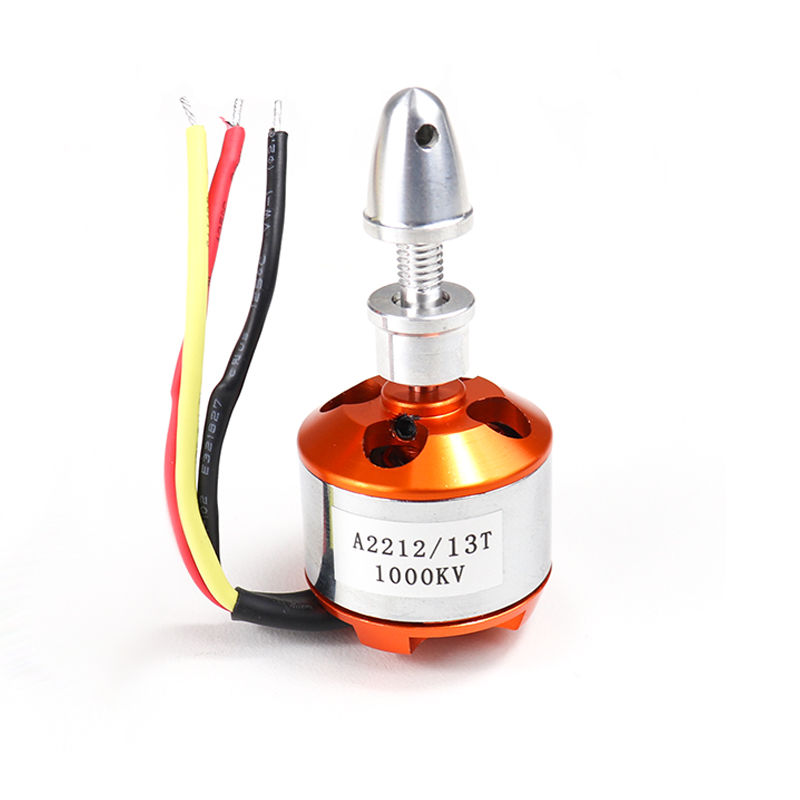

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC and 1045 Propeller Set
A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC and 1045 Propeller Set A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC and 1045 Propeller Set A2212 10T 13T 1400KV Brushless Motor for Drone (Soldered Connector) -- ROBU A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC and 1045 Propeller Set A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - ROBU A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC - ROBU

A2212 1000 KV BLDC Brushless DC Motor with SimonK 30A ESC and 1045 Propeller Set

4 Review(s)
Availability: In stock
SKU: 5923

QUICK OVERVIEW

  1. Offers great performance and value for money.
  2. Suitable for airplane, aircraft, quadcopter.
  3. Motor KV: 1000
  4. LiPO Batteries: 2S-3S
  5. Shaft Diameter: 3.17 mm
  6. ESC used has an On-Board BEC.
  7. Propeller: 1045

 880.00

(inc GST)

In stock

Purchase this product now and earn 9 Robu Points!
Brand: Generic

This is the cheapest ever 1000 KV BLDC motor + ESC + propeller for drones. This set is recommended to the newbie drone enthusiast and the wise pilots who are not willing to ruin the motors at the test stages.

Even when they are available at a price everyone can afford, their shocking performance is what makes everyone like them (except A2212, at this price no Brushless Motor in the Market will give you the thrust around 700gm in fly). The low price of this motor is recognized with its low-quality bearings and magnets. This motor produces noise and vibration. Also, they become warm while operating at high speed. But all these shortfalls are negligible and doesn’t affect the performance of the motor.

We import this A2212 1000 KV BLDC Motors from China. Our quality control team ensures the quality of prop-adapter by randomly selecting motors from each batch before setting them on sell. Also, we have tested the quality and performance of the ESC’s included in this pack for developing the proper matching and throttle response between Brushless Motor and ESC.

Flashing this 30A ESC is so easy with the help of quickly available SimonK firmware, making this 1000 KV BLDC Motor and ESC combo ready to go !!!! The 30A ESC comes with male and the Brushless Motor comes with female 3.5mm bullet connector.

The 1045 propellers set included in this pack are branded propeller by Orange. The Orange brand from Robu supplies quality and well-balanced propellers to deliver best aerodynamic efficiency, good lifting capacity. The brand Orange deals in variety RC Products like LiPO Batteries, DC Motors, Propellers, etc. don’t forget to explore them by clicking here

The A2212 1000 KV Brushless Motor for Drone equips shaft of 3.7mm. This motor is equipped with the solid metal case which makes it reliable and durable in the crash.

Many of our customers use this combo of A2212 1000KV Brushless Motor + 30A ESC + 1045 Propeller on a Q450 Quadcopter Frame.



We are selling the following variations of this 1000KV Brushless Motor for Drone,
Set of 4 A2212 1000KV Brushless Motor + SimonK 30A ESC + 1045 Propeller
A2212 1000Kv Brushless Motor + SimonK 30A ESC
A2212 1000Kv Brushless Motor (Soldered Connector)
A2212 1000KV Brushless Moto (Unsoldered Connectors)

Other useful links
A2212
Brushless Motors for Drones
Q450 Quadcopter Frame
SimonK 30A ESC
1045 Propeller

TIP: “This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of input supply.”




Features :
  1. The steel design is capable of withstanding competitional conditions.
  2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
  3. Compact size.
  4. Offers great performance and value for money.
  5. ESC used has an On-Board BEC.
  6. Faster and Better speed control.
  7. Pack includes branded Orange Propellers.
  8. Propellers are of good quality and well-balanced.




Package Includes :

1 x A2212 1000 KV BLDC Brushless DC Motor with Soldered Connector
1 x Prop Adapter
A Motor Holder (X-type) and a set of screws
1 x SimonK 30A BLDC ESC
2 x 1045(10×4.5) SF Propellers(1CW, 1CCW).
2 x Sets of prop reducers.

**********Brushless Motor

*****************************************************************************************************************************************************

Model

A2212

Motor KV (RPM/V)

1000

LiPO Batteries

2S-3S

Shaft Diameter (mm)

3.17

Max. Efficiency Current

4-10A

Maximum Watts(W)

150

No-Load Current

0.5A @10V

Internal Resistance(mΩ)

90

Maximum Efficiency

80%

Poles

14

Length (mm)

27.5

Width (mm)

27

Weight (gm)

64

**************ESC************

*****************************************************************************************************************************************************

Constant Current

30 A

BEC

3 A

Suitable Batteries

2-3S LiPo

Dimensions (mm) LxWxH

45 x 24 x 9

Weight(gm)

23

**************Propeller******

*****************************************************************************************************************************************************

Brand

Orange

No. of Blades

2

Length

10 Inch ( 25.4 cm )

Material

ABS

Shaft Hole Diameter

6 mm.

Color

Black

Pitch

4.5 Inch

Reducer Set

2.75, 3, 3.17, 4, 4.70, 5, 6, 6.25

*********Shipment Details

*****************************************************************************************************************************************************

Shipment Weight

0.13 kg

Shipment Dimensions

12 x 8 x 5 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
