Analog Temperature Module
Analog Temperature Module Analog Temperature Module Analog Temperature Module Analog Temperature Module Analog Temperature Module

Analog Temperature Sensor Module

Availability: In stock
SKU: 223501

QUICK OVERVIEW

  1. Operating Voltage : 5v.
  2. Temperature measurement range : -55°C to 125°C.
  3. Measurement Accuracy : ±0.5°C.

 49.00

(inc GST)

₹ 41.53 (+18% GST extra)

In stock

Purchase this product now and earn 1 Robu Point!
Brand: Generic

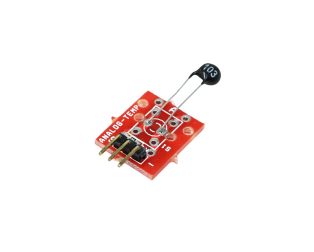

The Analog Temperature Module is based on the thermistor (resistance increases with the ambient temperature changes) which sense the real-time temperature of the surrounding environment changes. Change in temperature data in analog form can be taken from this module on analog IO pins, then through any microcontroller, it can be easily converted and displayed in Celsius degrees or any other respective Unit.

Test Code:
double Thermister(int RawADC)

   double Temp;

   Temp = log(((10240000/RawADC) – 10000));

   Temp = 1 / (0.001129148 + (0.000234125 + (0.0000000876741 * Temp * Temp ))* Temp );

   Temp = Temp – 273.15;// Convert Kelvin to Celcius

   return Temp;

   }

   void setup() {

   Serial.begin(9600);

   }

   void loop() {

   Serial.print(Thermister(analogRead(0)));

   Serial.println(“c”);

   delay(500);
               }




Features:

  1. Operating Voltage: 5v.
  2. Temperature measurement range : -55°C to 125°C.
  3. Measurement Accuracy : ±0.5°C.

Package Includes:

1 x Analog Temperature Module.

Operating voltage (v)

5

Temperature measurement range (°C)

-55 ~ +125

Measurement Accuracy

±0.5°C

Length (mm)

24.5

Width (mm)

16

Height (mm)

7

Weight (gm)

1

Shipment Weight

0.085 kg

Shipment Dimensions

8 x 5 x 3 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
