ARF Quadcopter Upgraded Combo Kit (Robu.in)
ARF Quadcopter Upgraded Combo Kit (Robu.in) ARF Quadcopter Upgraded Combo Kit (Robu.in) ARF Quadcopter Upgraded Combo Kit (Robu.in) ARF Quadcopter Upgraded Combo Kit (Robu.in)

ARF Quadcopter Upgraded Combo Kit

Availability: Out stock
SKU: 56061

QUICK OVERVIEW

  1. Pack contains quality products
  2. All products are tested and ready to perform
  3. All essential equipments required to build a Quadcopter are included in this upgraded combo pack.

 17,999.00

(inc GST)

Out of stock - Join the waitlist to be emailed when this product becomes available

Category:

This is ARF Quadcopter Upgraded Combo Kit which will help you become a quadcopter pilot. Simply get out the soldering iron, put on your safety goggles and began soldering. This Upgraded kit has very good products and is available at affordable cost.

For someone new to the multirotor hobby, putting together your first quadcopter parts list and bringing them home can be extremely daunting. Trying to figure out what to buy and what parts will work together is tough, especially for people who don’t come from a background in radio controlled planes or helicopters. For the people who want to build a quadcopter but don’t know where to start. It can be frustrating trying to sort things and figure out what to do. We’ve heard from a lot of peoples who are in similar positions and this bunch of products is designed to spell out exactly what you need for your quadcopter build. While we will recommend a complete list of specific parts that we have tested for a complete quadcopter build, the main purpose providing an ARF Quadcopter Upgraded Combo Kit needed to build a quadcopter. Here’s what an Upgraded Kit contains:

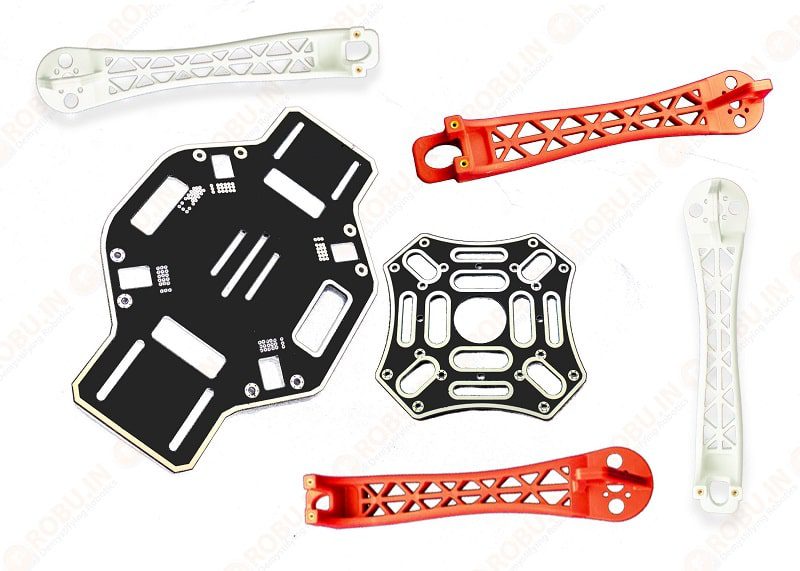

Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB

Every quadcopter or other multirotor aircraft needs a frame to house all the other components. Things to consider here are weight, size, and materials. This Q450 QUADCOPTER FRAME is a well thought out 450mm quad frame built from quality materials. The main frame is glass fiber while the arms are constructed of ultra-durable polyamide nylon. This version 3 of the Q450 QUADCOPTER FRAME features integrated PCB connections for direct soldering of your ESCs. This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy. V3 also comes with stronger molded arms over V1 and V2, so no more arm breakage at the motor mounts on a hard landing.

The more information about Q450 Quadcopter Frame is available at Robu.in.

2212 920KV Brushless motor

The motors have an obvious purpose: to spin the propellers. There are many motors available on the Robu.in suitable for quadcopters. Following two motors are included in this combo pack,

  • 2212 920KV Brushless motor for DJI (CCW) -Silver Cap
These motors are good Copy of DJI motors and give the best performance for multi-rotors. Price and Quality are also perfect for people who don’t want cheap Chinese motors as well don’t want to shell out huge amounts for super costly motors. These motors spin the propellers in the counter-clockwise direction. Please avoid take off and landing in Dirt (Or loose soil, Dirt gets inside motors and spoils them). Clean the motors with hair drier OR blower after 4-5 flights to get the extended life. Dimensions and Weight may have ±2% error.

The more information about 2212 920KV Brushless motor for DJI (CCW) -Silver Cap is available at Robu.in.

  • 2212 920KV Brushless motor for DJI (CW)

This is the DJI 2212 920Kv OEM Brushless Motor for all of the Flame Wheel airframes F330, F450 & F550.  These motors are very reliable and efficient delivering a significant amount of thrust with the matched 10″ propellers or the 8″ Propellers. These motors spin the propellers in the clockwise direction. When using a 4s Lipo pack the motors should use with 8″ props and 10″ props when using a 3s Lipo pack.

The more information about 2212 920KV Brushless motor for DJI (CW) is available at Robu.in.

Orange HD Propellers 1045(10X4.5) ABS Props Black

A quadcopter has four propellers, two “normal” propellers that spin counter-clockwise, and two “pusher” propellers that spin clockwise. Orange HD Propellers 1045(10X4.5) ABS Props 2CW+2CCW-1pair Black are high-quality Robu.in propellers specially designed for multi-copters. The Orange props have lightweight, to help improve the air-powered efficiency and aerofoil stability. Orange HD Propellers 1045(10X4.5) ABS Props has 15° angle design at the end of the propeller to avoid whirlpool multi-copter flying.

The more information about Orange HD Propellers 1045(10X4.5) ABS Props 1CW+1CCW-1pair Black is available at Robu.in.

SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane

The electronic speed control, or ESC, is what tells the motors how fast to spin at any given time. You need four ESCs for a quadcopter, one connected to each motor. The ESCs are then connected directly to the battery. SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs. SimonK firmware is a firmware specifically for ESCs (electronic speed controllers) developed by Simon Kirby. This firmware has been found to offer faster response compared to normal ESC firmware, easy handling, and good compatibility, all of which greatly enhances multirotor performance.

The more information about SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane is available at Robu.in.

APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass for FPV RC Drone Aircraft

The flight control board is the ‘brain’ of the quadcopter. It houses the sensors such as gyroscopes and accelerometers that determine how fast each of the quadcopter’s motors spin. Flight control boards range from simple to highly complex. APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass for FPV RC Drone Aircraft is the new APM 2.8 flight controller. The sensors are exactly the same as the APM 2.6 flight controller, however, this has the option to use the built-in compass, or external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers.

The APM 2.8 Multicopter Flight Controller is a complete open source autopilot system and the bestselling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints. The more information about APM 2.8 Multicopter Flight Controller is available at Robu.in.

FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver

The radio transmitter and receiver allow you to control the quadcopter. There are many suitable models available at Robu.in, but you will need at least four channels for a basic quadcopter. We recommend using a radio with 6 channels, so there is more flexibility. FlySky FS-i6 2.4G 6CH PPM RC Transmitter is a 6-channel telemetry 2.4GHz transmitter that uses the reliable Automatic Hopping Digital System (AFHDS).  You get a slim, modern radio transmitter that fits nicely in your hands and weighs just under 400g and so won’t test your arm stamina on those long flights. This radio is also really practical with a 3-position switch as well as two adjustable knobs for flight modes/ multiple flap positions.

You also get the new FS-iA6B receiver with this kit. This is a compact 6-channel receiver with a range exceeding 500m and it comes with a dual antenna for excellent reception and interference rejection capabilities.  Each transmitter has a unique ID and so when binding, the receiver remembers this ID and accepts data from that transmitter only. This avoids picking up other transmitter signals and dramatically decreases inference and increases safety.

The more information about FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver is available at Robu.in.

Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo)

Quadcopters typically use LiPo batteries which come in a variety of sizes and configurations. We typically use 3S1P batteries, which indicates 3 cells in parallel. Each cell is 3.7 volts, so this battery is rated at 11.1 volts. LiPo batteries also have a C rating and a power rating in mAh (which stands for milliamps per hour). The C rating describes the rate at which power can be drawn from the battery, and the power rating describes how much power the battery can supply. Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo) batteries are known for performance, reliability, and price. Orange batteries deliver the full rated capacity at a price everyone can afford.

Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo) batteries are equipped with heavy duty discharge leads to minimize resistance and sustain high current loads. Orange batteries stand up to the punishing extremes of aerobatic flight and RC vehicles. Each pack is equipped with gold plated connectors and JST-XH style balance connectors. All Orange Lithium Polymer batteries packs are assembled using IR matched cells. The more information about Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo) is available at Robu.in.

Lipo Voltage Checker 2-8S

Li-Po voltage checker one of the basic essential tool used for the Quadcopters, It is used to use the battery more efficiently and increase the life of the battery by proper management. It is a very compact module that you can use it with much ease as you wish. 2-8S Cell Checker with low voltage alarm features loud twin piezo alarms to notify you once your cells reach a user defined voltage. You can customize the alarm to sound at a voltage between 2.7v~3.8v per cell in 0.10v increments by pressing the setting mode button.

This unit also features a handy built-in LED display that will show the voltage of each cell followed by the overall voltage of the pack. The more information about Lipo Voltage Checker 2-8S is available at Robu.in.

XT60 Male w/ 12AWG Silicon Wire 10cm (1pcs/bag)

The connector wires are useful while connecting your battery and ESC. These are widely used Li-PO battery connectors XT60 Male w/ 12AWG Silicon Wire 10cm (1pcs/bag) makes the connection between the battery and different module much flexible.

These are heavy duty cables, great for projects that involve bigger motors and controllers, such as our high-power motor drivers and Simple Motor Controllers. The XT60 Male w/ 12AWG Silicon Wire 10cm (1pcs/bag) is capable of connection with XT60 Female Connector. These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in. The shape of this generic XT60 prevents reverse polarity, and when plugged in the connection is super-solid.

These connectors are compatible with batteries provided in the pack. The more information about XT60 Male w/ 12AWG Silicon Wire 10cm (1pcs/bag) is available at Robu.in.

10CM Male to Male Servo Lead (JR) 26AWG (1pc)

If you are willing to connect your servos securely for the safe operation of the Quadcopter, these lead extension cable will stand the need. The 10CM Male to Male Servo Lead (JR) 26AWG (1pc) wire is 15cm long and equipped with the high-strand silicon wire with soldered and crimped plugs for its outstanding operation

This is 10CM Male to Male Servo Lead (JR) 26AWG (1pc) used to make connection such as between RC servo controllers or RC receivers and motor controllers with an RC interface. These Servo Lead Extention comes with “JR”-style connectors. This has a male connector on one side and one female connector on another side.

The more information about 10CM Male to Male Servo Lead (JR) 26AWG (1pc) is available at Robu.in.

Note: Any one of the following chargers are required to Charge/Discharge the different cells of  Li-PO batteries which are not included in this pack. Used for better operation and also to enhance the life of the Li-PO battery for this we need a Balance Charger. We suggest you buy any of the following battery Charger/Discharger according to your choice.

  1. SkyRC IMAX B6 50W 5A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC (SKU: 45191)
  2. IMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC (SKU: 45192)

  3. IMAX B6AC Charger/Discharger 1-6 Cells (SKU: 4056)

All the above products are essential and main components of Quadcopter, including them all that you wish and want to make and modify i.e from the solder wire of soldering gun to the Gimbal to house your camera in the Quadcopter is available at Robu.in.

Package Includes :

1 x Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB
2 x 2212 920KV Brushless motor for DJI (CCW) -Silver Cap
2 x 2212 920KV Brushless motor for DJI (CW)
4 x Orange HD Propellers 1045(10X4.5) ABS Props 1pair Black
4 x SimonK 30A BLDC ESC Electronic Speed Controller
1 x APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass for FPV RC Drone Aircraft
1 x CT6B FlySky 2.4Ghz 6CH Transmitter w/FS-R6B Receiver Mode 2
1 x Orange 5200mAh 3S 30C/60C Lithium polymer battery Pack (LiPo)
1 x Lipo Voltage Checker 2-8S
1 x XT60 Male w/ 12AWG Silicon Wire 10cm (1pcs/bag)
4  x 10CM Male to Male Servo Lead (JR) 26AWG (1pc)

Specification and Features :

  1. Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB
    1. Materials: glass fiber + polyamide nylon
    2. Frame Weight: 280g.
    3. Height: 55mm
    4. Colored arms for orientation to keep you flying in the right direction.
    5. Power distribution board included in this item(inbuilt PCB).
    6. Pre-threaded brass sleeves for all frame bolts.
    7. Large mounting tabs on main frame bottom plate for easy camera mounting.
  2. 2212 920KV Brushless motor for DJI (CCW) -Silver Cap

    1. KV: 920 rpm/V.
    2. Voltage: DC 7-12V.
    3. Weight: 60gm.
    4. Motor Shaft diameter: 6 mm.
    5. Motor Body diameter: 28 mm.
    6. Total Motor height: 46 mm.(with cap).
    7. Silver cap Height: 14 mm.
  3. 2212 920KV Brushless motor for DJI (CW)

    1. Size: 22 x 12 mm.
    2. RPM/V: 920 Kv.
    3. Prop: 10 x 45.
    4. Battery: 3-4S LiPo.
    5. Motor Shaft diameter: 6 mm.
    6. Motor Body diameter: 28 mm.
    7. Total Motor height: 46 mm.(with cap).
  4. Orange HD Propellers 1045(10X4.5) ABS Props 1CW+1CCW-1pair Black

    1. Material: ABS.
    2. Epoxy resin cover.
    3. Very strong and lightweight.
    4. Length : 10″.
    5. Pitch: 4.5″.
    6. Weight: 25 gm.
    7. Shaft diameter: 9.5 mm.
    8. Total length : 10 inch / 250 mm.
    9. a set of reducers (3,3.17,4,5,6,8 mm)
  5. SimonK 30A Brushless Speed Controller ESC Multicopter Helicopter Airplane

    1. Current 30A:
    2. Burst current: 35 A
    3. Size: 32 X 24 X 7 mm
    4. Voltage range: 4 V-16.8V
    5. BEC output: 5 V 3A
    6. Firmware: SIMONK
  6. APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass for FPV RC Drone Aircraft
    1. Needle: straight.
    2. Power supply: LP2985-3.3.
    3. Max voltage: 16V.
    4. Add a 47uF tantalum capacitor.
    5. Port: MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
    6. Arduino Compatible!
    7. Includes 3-axis gyro, accelerometer, along with a high-performance barometer
    8. Onboard 4 MegaByte Dataflash chip for automatic data logging.
    9. Optional off-board GPS, a uBlox LEA-6H module with Compass.
  7. FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver

    1. Channels: 6 Channels
    2. Model Type: Glider/Heli/Airplane
    3. RF Range: 2.40-2.48GHz
    4. Bandwidth: 500KHz
    5. Band: 142
    6. RF Power: Less Than 20dBm
    7. 2.4ghz System: AFHDS 2A and AFHDS
    8. Code Type: GFSK
    9. Sensitivity: 1024
    10. Low Voltage Warning: less than 4.2V
    11. DSC Port: PS2;Output:PPM
    12. Charger Port: No
    13. ANT length: 26mm*2(dual antenna)
    14. Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight.
    15. Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, Ch 5 & 6 open to assignment to other functions.
  8. Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo)
    1. Model No: Orange 5200mAh 40C 3S1P
    2. Capacity : 5200mAh
    3. Weight : 360.0g
    4. Voltage : 11.1V
    5. Dimensions : 28x44x137(mm )
    6. Max Continuous Discharge : 40C(208.0A)
    7. Balance Plug : JST-XH
    8. Max Burst Discharge : 80C(416.0A)
    9. Discharge Plug : XT-60
    10. Charge Rate : 1-3C Recommended, 5C Max
  9. Lipo Voltage Checker 2-8S
    1. Input: 2-8S
    2. Battery type: Lipo/LiFe/Li-ion
    3. Cell Voltage Display Range: 0.5v-4.5v
    4. Total Voltage Display Range: 3.7-36v
    5. Alarm set values: Off or 2.7-3.8v
  10. XT60 Male w/ 12AWG Silicon Wire 10cm (1pcs/bag)
    1. Connector Type: XT60 Male
    2. Material of Connector: High-Temp nylon
    3. Length: 10 cm.
    4. High-Quality Connector
    5. Designed for heavy duty
    6. High Power Application
  11. 10CM Male to Male Servo Lead (JR) 26AWG
    1. Connector: JR-Style
    2. Length: 10 cm
    3. Weight: 5 gm
    4. High-Quality cable
    5. One male and one female connector

Attachments and Links :

FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver

Datasheet:

https://drive.google.com/file/d/1V6qYjXk7ofLw2QplBnJ0eBOYkw9KL4p_/view?usp=sharing

Binding and Setting up the FlySky:

Li-PO Battery – Orange 3000mAh 3S 30C/60C Lithium polymer battery Pack (LiPo)

User Manual:

https://drive.google.com/file/d/1V6qYjXk7ofLw2QplBnJ0eBOYkw9KL4p_/view?usp=sharing


Useful Link:

Drone Building Video Tutorials

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
