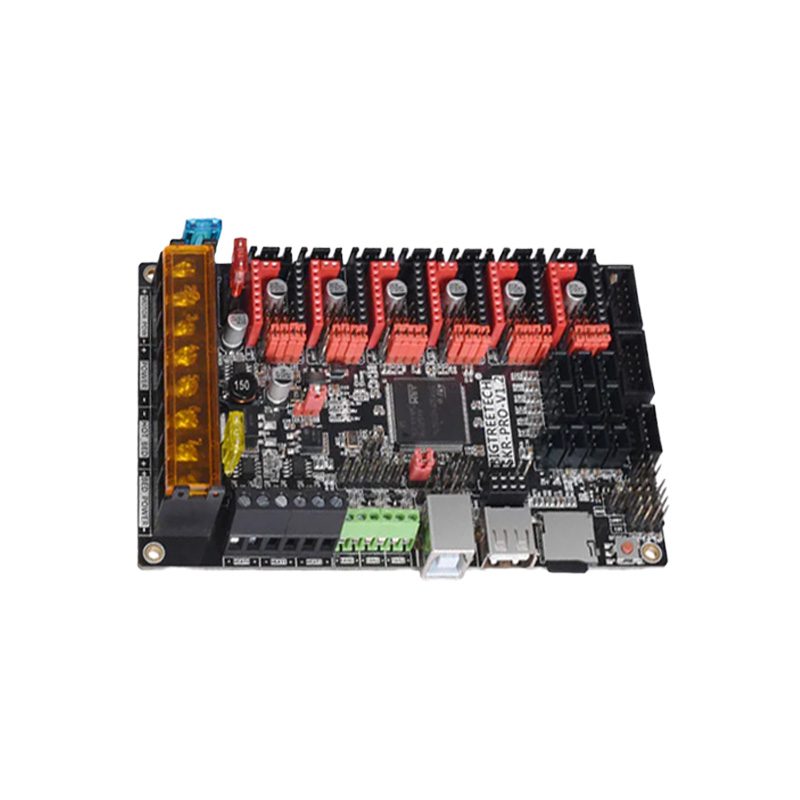

BIGTREETECH BTT SKR PRO V1.2 32 Bit Control Board

Availability:

Out of stock

Approx Restocking Date: 25 to 30 Days
SKU: 1604107
  1. Supports Resume Printing While Power Off , Filament Break Detection, Automatic Shutdown After Printing and so on
  2. High performance MOSFET tube, better heat dissipation effect
  3. Using removable fuse makes the replacement process easier
  4. Reserved extended port SERVOS and Probe to support BL Touch
  5. Supports RGB light bar

 5,578.00

(Including GST)

Out of stock


Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Category: 3D Printer Display and Controller

BIGTREETECH SKR Pro BIGTREETECH SKR V1 .4 motherboard is a 32 bit 3D printer motherboard optimized and upgraded by the 3D printing team of Shenzhen Big Tree Technology CO., LTD for the deficiencies of V1.3 version, especially suitable for small and medium sized printers. The main control uses the ARM-level Cortex-M4 series with a 32-bit dominant frequency of 168 MHz STM32F407ZGT6 chip, performance is greatly improved. BIGTREETECH SKR PRO V1.2 32 Bit Control Board equipped with highly modular open source firmware Marlin2.0, it is convenient for users to DIY and further-development, to avoid the worry of not being able to master the core code.

Note: Display screen & motor driver are not included with the product. You need to buy them separately.

Choose the best suitable display screens (robu.in).

Buy E3D and other Stepper Motor and Driver for 3D printer (robu.in)


Features:

  1. Supports various motor drivers and display screens
  2. Modular open source firmware Marlin2.0 for DIY and further-development
  3. Reserve extended ports for more functions
  4. Supports power-off continuous printing and material cut detection
  5. Van support dual Z-axis printers
  6. 32-bit Cortex-M4 series chip for better performance

Bigtreetech Bigtreetech Skr Pro V1.2 32 Bit Control Board


Package Includes:

1 x BIGTREETECH SKR PRO V1.2 32 Bit Control Board

1 x USB cable

1 x Power cable

1 x Black jumper set

SKU: 1604107 Category:
Item Type:

Controller Board Only

Model Series:

BTT SKR Series

Microcontroller

ARM Cortex M4

MCU Type

ARM 32-bit Cortex-M4 CPU

Input Voltage (V)

DC12V – DC24V

Driver Working Mode

STEP/DIR, TMC2130-SPI, TMC2208-UART, TMC5160-SPI

Compatible Display

BIGTREETECH TFT28, BIGTREETECH TFT35, LCD12864, LCD2004

Motor driver interface

2, E0, E1, X, Y, Z

Dimensions (mm)

145 x 95 x 15

Weight (g):

152

Shipping Weight 0.328 kg
Shipping Dimensions 21 × 14 × 5 cm
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.


What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “BIGTREETECH BTT SKR PRO V1.2 32 Bit Control Board”

There are no reviews yet.

Questions and answers of the customers

    Makerbase MKS TFT24 support turned on?
  1. 0 votes
    Q Makerbase MKS TFT24 support turned on? answer now
    Asked by koriyajigar1995 on March 21, 2024 7:40 am
    A Yes, it supports Makerbase MKS TFT24 also the best... Read more
Only registered users are eligible to enter questions
Country Of Origin: China
