100 RPM BO Motor – Straight

(4 customer reviews)
Availability:

In stock


SKU: 2154
  1. Low density: lightweight, low inertia.
  2. Capability to absorb shock and vibration as a result of elastic compliance.
  3. Ability to operate with minimum or no lubrication, due to inherent lubricity.
  4. The relatively low coefficient of friction.
  5. Operating Voltage(VDC): 3~12
  6. Shaft Length (mm): 8.5
  7. Shaft Diameter (mm): 5.5 (Double D-type)
  8. No Load Current: 40-180mA.
  9. Rated Speed(After Reduction): 100 RPM
  10. Rated Torque: 1 Kgcm

 55.00

(inc GST)

₹ 46.61 (+18% GST extra)

In stock

Select below products to add together

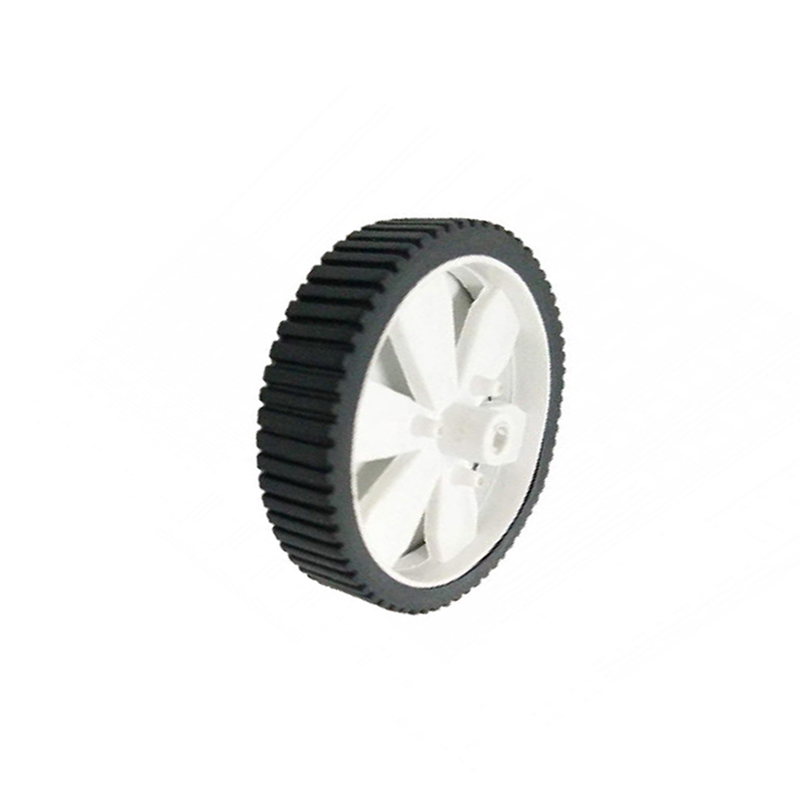

BO Wheel 7cm Dia. x 1cm Width - 4pcs ₹ 69

New Price: ₹ 55


Purchase this product now and earn 1 Robu Point!
Brand: Generic
Category: BO motors
Tags: MOTOR, DC Motor, DC Geared Motor, BO motor, Battery Operated, Single Shaft, Single Shaft Motor

It is a BO Series 1 100RPM DC Motor Plastic Gear Motor. The BO series straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.

A small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & lightweight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.

Low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. Available with 60 and 150 RPM.

The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.

We are supplying the range BO(Battery Operated) Motors with varying RPM and Gear-Box arrangement, click on the name below for more information

BO Motors

Note: These Motors are available in three different colors i.e. Yellow, Black, and white, we will ship it randomly.

Features :

  1. Cost-effectiveness of the injection-molding process.
  2. Elimination of machining operations.
  3. Low density: lightweight, low inertia.
  4. Uniformity of parts.
  5. Capability to absorb shock and vibration as a result of elastic compliance.
  6. Ability to operate with minimum or no lubrication, due to inherent lubricity.
  7. The relatively low coefficient of friction.
  8. Corrosion-resistance; elimination of plating, or protective coatings.
  9. The quietness of operation.
  10. Tolerances are often less critical than for metal gears, due in part to their greater resilience.
  11. Consistency with the trend to greater use of plastic housings and other components.

Package Includes :

1 x 100 RPM BO Motor – Straight

Operating Voltage (VDC)

3 ~ 12

Shaft Length (mm)

8.5

Shaft Diameter (mm)

(Double D-type)
5.5

No Load Current (mA)

40-180mA.

Rated Speed After Reduction (RPM)

100

Rated Torque (Kg-Cm)

1

Weight (gm)

30

Dimensions in mm (LxWxH)

64 x 22 x 18

Shipment Weight

0.033 kg

Shipment Dimensions

8 × 4 × 4 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 4 reviews

2.5 overall
1
0
1
0
2

Add a review

  1. Deena (verified owner)

    Nice product

    Deena

  2. samay

    excilent

    samay

  3. samay

    very good

    samay

  4. Arpit Verma

    Very good product

    Arpit Verma

Dimensional Drawing
