CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Breakout Board for Arduino

Availability:

In stock


SKU: 44580

1.Wide Analog Input Voltage Range: +/-5V
2.Low “ON” Resistance: 80 ohm (type) at Vcc = 4.5V; 70 ohm (type) at Vcc = 6.0V; 60 ohm (type) at Vcc = 9.0V
3.Logic Level Translation: to enable 5V to communicate with +/-5V analog signals
4.Board Size: 30 x 19 mm

 70.00

(Including GST)

In stock

Select below products to add together

20CM DuPont Wire Color Jumper Cable 2.54mm 1P-1P Female to Female 40PCS ₹ 35

New Price: ₹ 70


Purchase this product now and earn 1 Robu Point!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: Generic
Category: Logic Level Converter

This is CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Sensor Module Breakout Board for Arduino. 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1, and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

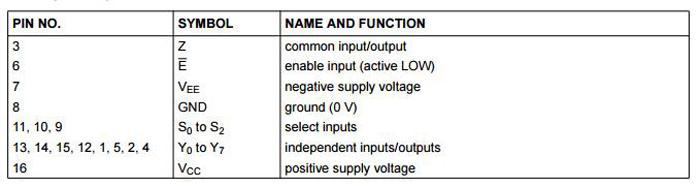

Pin Description:

Cjmcu-4051 74Hc4051

Cjmcu-4051 74Hc4051

Generic 9906 1

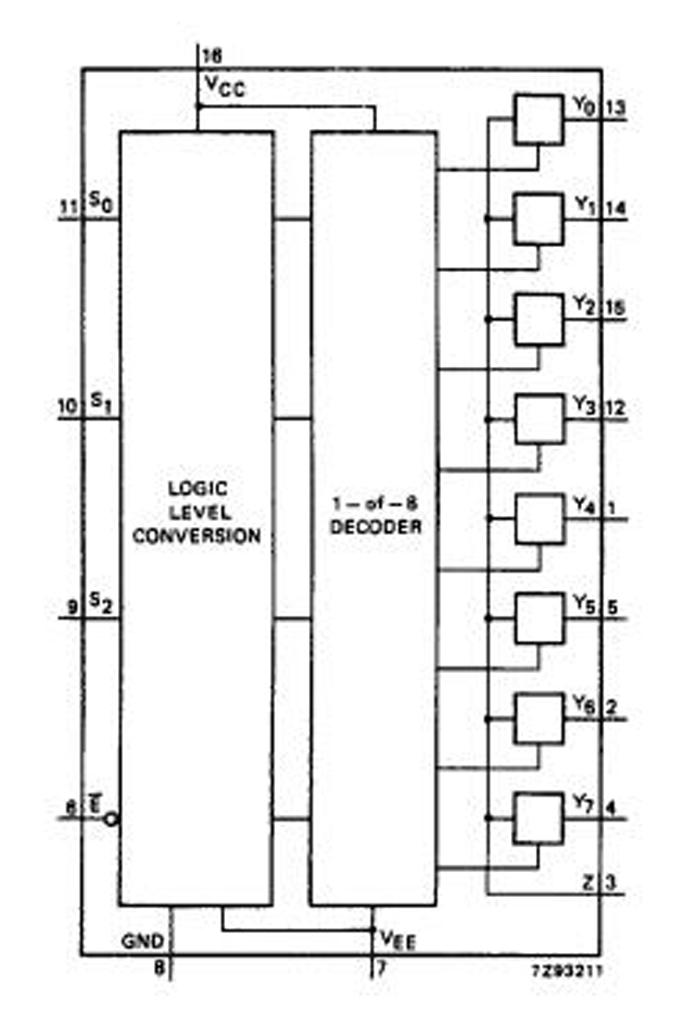

Generic 9906 2Functional Diagram:

Generic Cjmcu 4051 74Hc4051 3 1

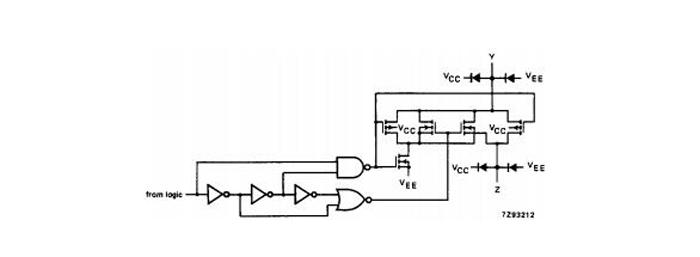

Generic 9906 3Schematic Diagram (one switch):

Generic 9906 4

Cjmcu-4051 74Hc4051


Specifications and Features :

1.Wide Analog Input Voltage Range: +/-5V
2.Low “ON” Resistance: 80 ohm (type) at Vcc = 4.5V; 70 ohm (type) at Vcc = 6.0V; 60 ohm (type) at Vcc = 9.0V
3.Logic Level Translation: to enable 5V to communicate with +/-5V analog signals
4.Board Size: 30 x 19 mm


Package Includes :

1 x 8 Channel Analog Multiplexer Demultiplexer Sensor Module with berg Pins.

SKU: 44580 Category:
Input Supply voltage (V)

± 5

Length (mm):

30

Width (mm):

19

Height (mm):

3.5

Weight (g):

3

Shipping Weight 0.005 kg
Shipping Dimensions 10 × 7 × 3 cm
