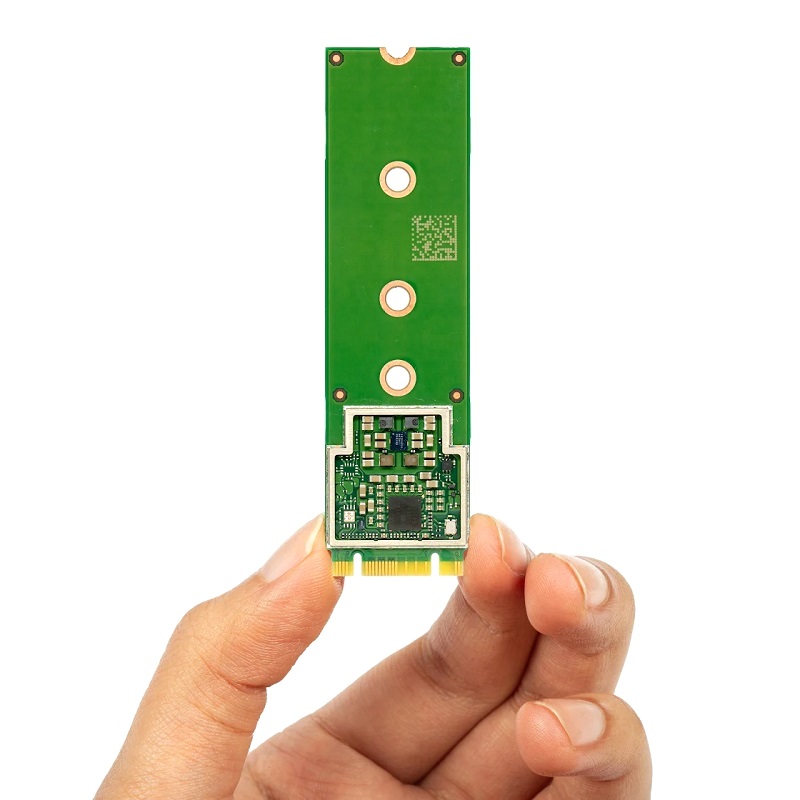

Coral TPU M.2 B+M Module

Availability:

Out of stock

Approx Restocking Date: 25 to 30 Days
SKU: 1785712
  1. Google Edge TPU ML accelerator
    ○ 4 TOPS total peak performance (int8)
    ○ 2 TOPS per watt
  2. Integrated power management
  3. PCIe Gen2 x1 interface
  4. Available in M.2-2280-B-M-S3 (B+M key)
  5. Operating temp: -20 to +85 °C

 4,799.00

(Including GST)

Out of stock


Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Brand: Coral
Category: Advance Development Boards

This is Coral TPU M.2 B+M Module. The Coral is a brand and platform developed by Google that focuses on edge AI and machine learning. It provides hardware and software components to accelerate AI and machine learning tasks on edge devices, such as IoT devices and single-board computers. TPU (Tensor Processing Unit): Google’s TPU is a specialized hardware accelerator designed for AI and machine learning workloads. TPUs are known for their high computational efficiency and are commonly used for deep learning inference tasks. M.2 B+M Module: M.2 is a form factor for expansion cards and solid-state drives (SSDs) commonly used in laptops and desktop computers. The “B+M” refers to the keying of the M.2 module, indicating the type of interface and form factor it supports.

The Edge TPU is a small ASIC designed by Google that accelerates TensorFlow Lite models in a power efficient manner: it’s capable of performing 4 trillion operations per second (4 TOPS), using 2 watts of power—that’s 2 TOPS per watt. For example, one Edge TPU can execute state-of-the-art mobile vision models such as MobileNet v2 at almost 400 frames per second. This on-device ML processing reduces latency, increases data privacy, and removes the need for a constant internet connection.
The M.2 form-factor allows you to add local ML acceleration to products such as embedded platforms, mini-PCs, and industrial gateways that have a compatible M.2 card slot.

Note: The actual product may vary in terms of markings and component structure. Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.


Features:

  1. Easy to use
  2. Good quality product
  3. Google edge TPU ML accelerator (4 TOPS total peak performance (int8))
  4. 2 TOPS per watt
  5. Integrated power management
  6. PCIe Gen2 x1 interface

Package Includes:

1 x Coral TPU M.2 B+M Module


For more info., click below.

Application notes

Software guides

API references

Downloads link

SKU: 1785712 Category:
Brand

Coral

Product

Coral TPU M.2 B+M Module

Operating Voltage (VDC)

3.3 V +/- 10 %

Hardware Interface

M.2 B+M key (M.2-2280-B-M-S3)

Storage Temperature

-40℃ ~ 85℃

Operating Temperature (°C)

-20 to 85 °C

Humidity Range

(non-condensing), 0 to 90%

Length (mm):

22

Width (mm):

30

Height (mm):

2.35

Weight (g):

06

Shipping Weight 0.015 kg
Shipping Dimensions 11 × 7 × 1 cm
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.


What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Coral TPU M.2 B+M Module”

There are no reviews yet.

Datasheet

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: China
