Dog Barking Animal Music Chip Sound Trigger Voice Module for DIY

(1 customer review)
Availability:

In stock


SKU: 1794465
  1. Operating voltage: 3.0-4.5V
  2. Impedance: 8 Ohms
  3. Speaker support: 0.25W-2W

 29.00

(Including GST)

In stock

Purchase this product now and earn 1 Robu Point!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: Generic
Category: Sound Sensor

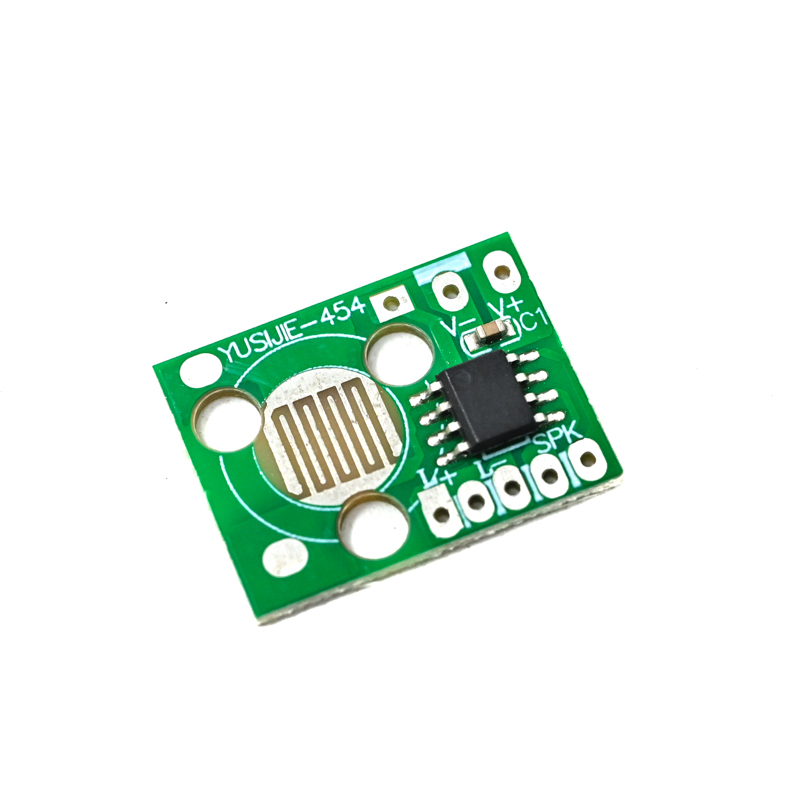

A useful as well as single module to produce dog barking musical sound that can be easily interfaced with speakers and a simple power supply without the need for additional amplifier units. The module has a non-removable chip and easy-to-connect PCB leads for trouble-free soldering solutions.

It can be powered using simple 3-4.5V DC which is suitable for usage of 2 pcs 1.5V batteries if used as indoor bell systems. The output specification requires 0.25W to 2W speakers with 8 Ohms impedance. The inbuilt button or trigger offers one-time play if shorted.

Generic Dog Barking Music Chip Module 3 1


Features:

  1. Good Quality Output
  2. No additional amplifier is required
  3. Small size PCB to be fitted in very small space during DIY
  4. Solder-able pads available in the module

Package Includes:

1 x Dog Barking Animal Music Chip Sound Trigger Voice Module for DIY

SKU: 1794465 Category:
Operating Voltage (V)

3.0-4.5

Speaker

Supports 0.25W-2W

Impedance (Ω)

8

Length (mm):

22.2

Width (mm):

16.2

Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 1 review

4.0 overall
0
1
0
0
0

Add a review

  1. abhasbhattacharya2 (verified owner)

    Nifty small module, works as expected and decently loud. But the sound quality is low fidelity and only one short 3s dog barking sound (slightly harsh).

    abhasbhattacharya2

Questions and answers of the customers

  1. 0 votes
    Q Please share pinout or label for each pin answer now
    Asked by abhasbhattacharya2 on April 30, 2024 3:06 pm
    A

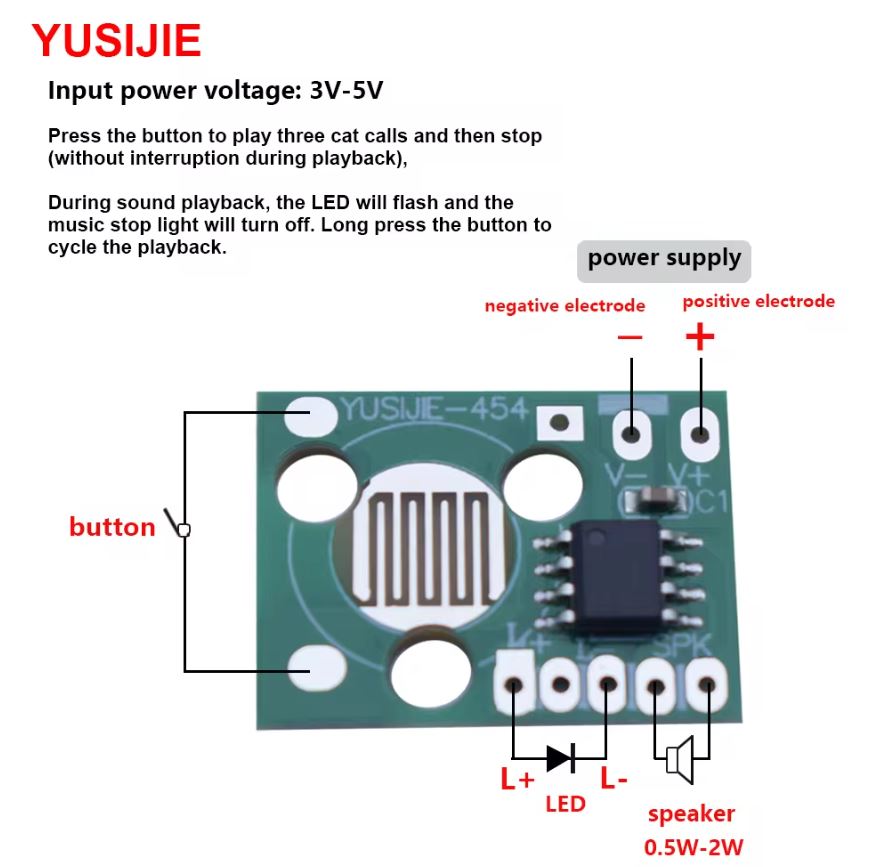

    Pin diagram is available in description section... Read more
