EasyMech Bracket For SHARP GP2Y0A41SK0F, GP2Y0A02YK0F & GP2Y0A21YK0F Distance Measuring Sensor-[Perpendicular]

(1 customer review)
Availability:

In stock


SKU: 143255
  1. EasyMech’s branded brackets.
  2. Made up of good quality MS.
  3. Specially designed for Sharp Distance Measuring Sensor
  4. Possess good stability and durability.

 63.00  99.00

(inc GST)

₹ 53.39 (+18% GST extra)

  You save(36.4%): ₹ 36.00

In stock

Purchase this product now and earn 1 Robu Point!
Brand: EasyMech
Category: Distance Sensor, Sensors on Sale
Tags: Mounting Brackets, IR Sensor, SHARP IR SENSOR, IR Senesor Bracket

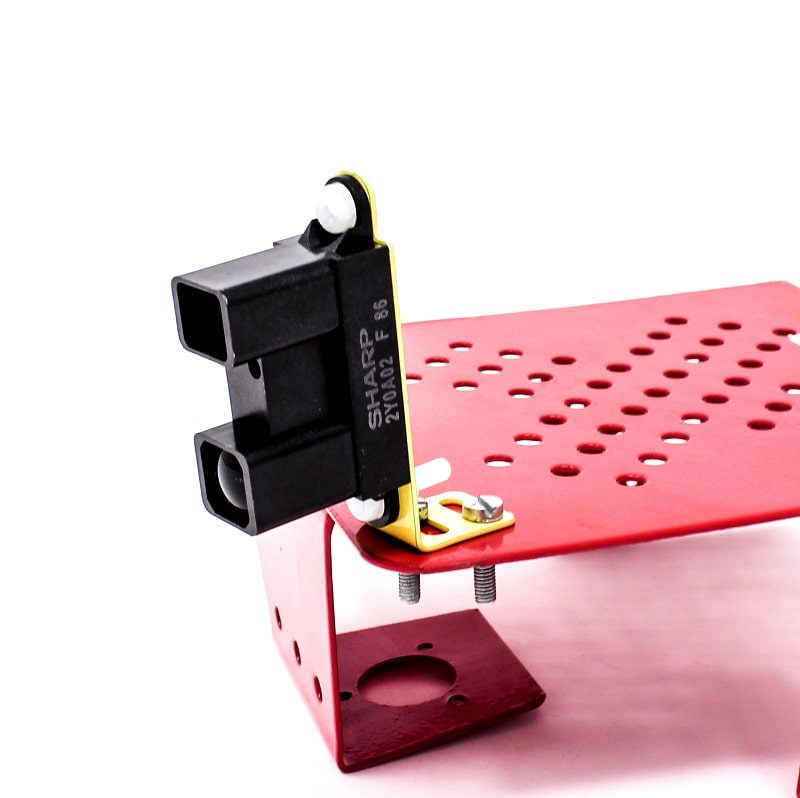

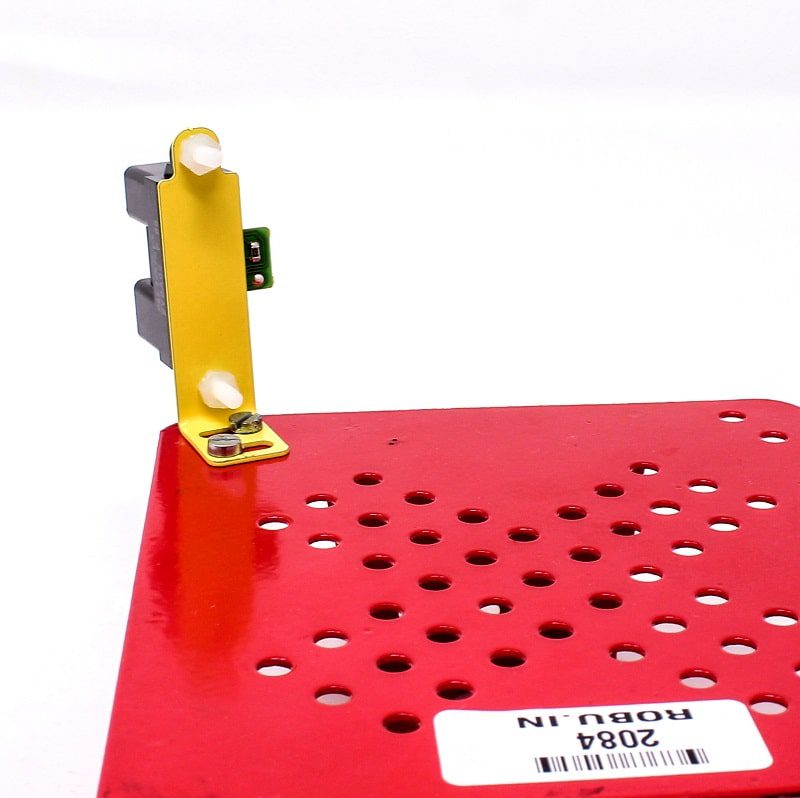

These EasyMech lightweight brackets make it easy to mount and integrate the Sharp GP2Y0A41SK0F, GP2Y0A02YK0F & GP2Y0A21YK0F Distance Sensors into your project. The brackets are strong enough to hold their position. This bracket allows Perpendicular sensor orientation is sold with M3 X12 bolts and nuts are included in which Nylon Bolt & nut are for sensor mounting & MS bolt & nuts for mounting the bracket on any platform.

These lightweight brackets are made from 1mm-thick MS material which allows bending for little angle adjustments. They are specifically designed to work with Sharp GP2Y0A41SK0F, GP2Y0A02YK0F & GP2Y0A21YK0F distance sensors with having the slight room at mounting hole for mounting adjustment on your Robot or Applications.

There are 3 versions are available. These are compact perpendicular and parallel versions, and a slightly larger but more versatile multi-option version that allows for mounting the sensor in either orientation along with greater flexibility in sensor placement relative to the mounting surface.

Note:

As the body of the sharp distance sensor is conducting, it is necessary to use Nylon Bolt & Nuts with the spacer for mounting the sensor on the bracket to avoid any damage to the sensor.

Any IR Sensor is not included in this pack, buy them separately at Robu.in online shop.


Features:

  1. EasyMech’s branded brackets.
  2. Made up of good quality MS.
  3. Specially designed for Sharp Distance Measuring Sensor
  4. Possess good stability and durability.

Compatible with :
  1. SHARP IR Distance Measuring Sensor Unit 4 To 30 CM with Cable (SKU: 43377)
  2. SHARP Distance Measuring Sensor unit 20 to 150 cm – GP2Y0A02YK0F (SKU: 12047)
  3. SHARP Distance Measuring Sensor unit 10 to 80 cm – GP2Y0A21YK0F (SKU: 12062)

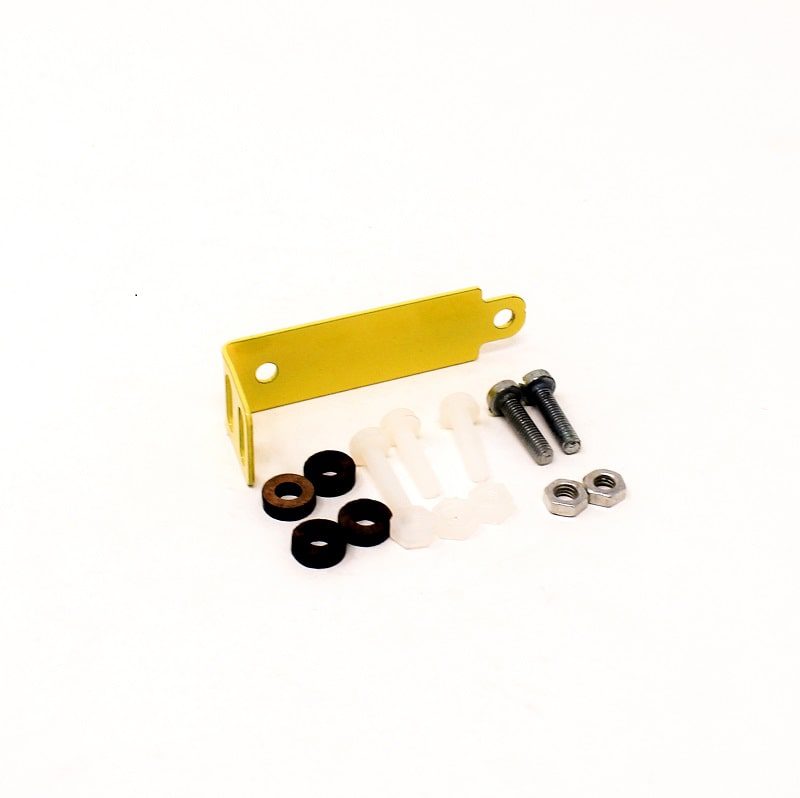

Package Includes:

1 x bracket

2 x M3 Nylon Bolt-Nut set for Sensor Mount

2 x M3 MS Bolt-Nut Set for Bracket Mount

4 x Acrylic Spacers for Sensor Mount

Brand

EasyMech

Mounting Type

Perpendicular

Material

Mild Steel (MS)

Color

Lemon Yellow

Thickness

1 mm

Sensor Mounting Hole

3 mm

Bracket Mounting Hole

3 mm

Weight

3 gm

Shipment Weight

0.01 kg

Shipment Dimensions

8 × 5 × 3 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
