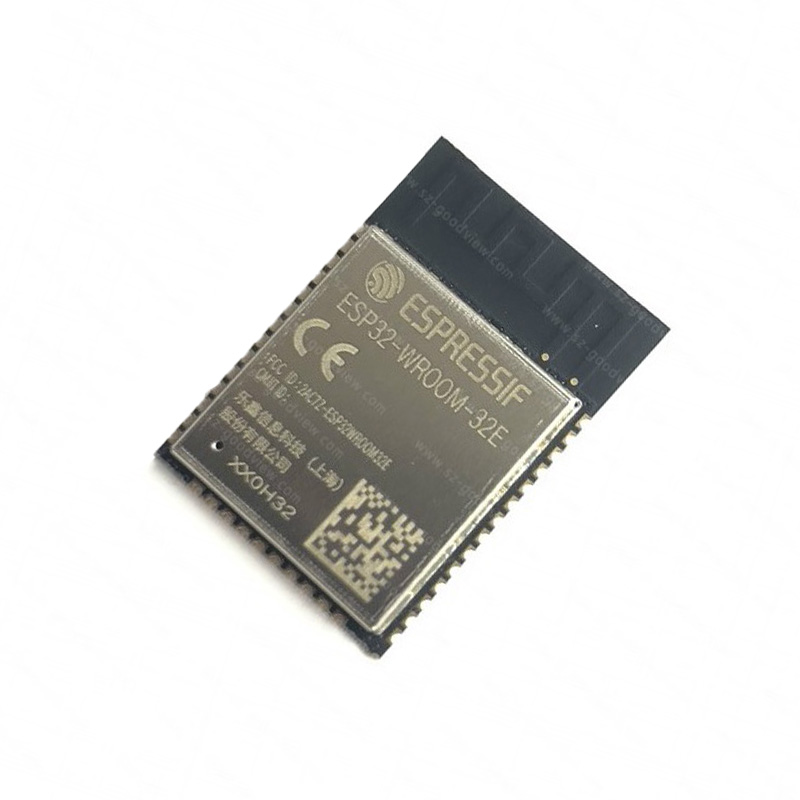

Espressif ESP32-WROOM-32E 16M 128Mbit Flash WiFi Bluetooth Module

Availability:

In stock


SKU: 975748
  1. ESP32-D0WD-V3 embedded, Xtensa dual-core
  2. 32-bit LX6 microprocessor, up to 240 MHz
  3. 448 KB ROM for booting and core functions
  4. 520 KB SRAM for data and instructions
  5. 16 KB SRAM in RTC
  6. Wi­Fi: 802.11b/g/n
  7. Bit rate: 802.11n up to 150 Mbps

 399.00

(inc GST)

₹ 338.14 (+18% GST extra)

In stock

Purchase this product now and earn 4 Robu Points!
Brand: Espressif
Category: ESP WiFi Module
Tags: Wifi, Bluetooth, Espressif WiFi

Espressif ESP32-WROOM-32E is a Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. ESP32-WROOM-32E comes with a PCB antenna for Bluetooth and Wifi connectivity. These modules are featured with a 4 to 16 MB external SPI flash.

There are a wide range of application for ESP32-WROOM-32E like,

  1.  Generic Low-power IoT Sensor Hub
  2. Generic Low-power IoT Data Loggers
  3. Cameras for Video Streaming
  4. Over-the-top (OTT) Devices
  5. Speech Recognition
  6. Image Recognition
  7. Mesh Network
  8. Home Automation
  9. Smart Building
  10. Industrial Automation
  11. Smart Agriculture
  12. Audio Applications
  13. Health Care Applications
  14. Wi-Fi-enabled Toys
  15. Wearable Electronics
  16. Retail & Catering Applications

Features:

  1. ESP32-D0WD-V3 embedded, Xtensa dual-core
  2. 32-bit LX6 microprocessor, up to 240 MHz
  3. 16 KB SRAM in RTC
  4. Wi­Fi
    •802.11b/g/n
    • Bit rate: 802.11n up to 150 Mbps
    • A-MPDU and A-MSDU aggregation
    • 0.4 µs guard interval support
    • Center frequency range of operating channel:
    2412 ~ 2484 MHz
  5. Bluetooth
    • Bluetooth V4.2 BR/EDR and Bluetooth LE specification
    • Class-1, class-2 and class-3 transmitter
    • AFH
    • CVSD and SBC
  6. Hardware
    • Interfaces: SD card, UART, SPI, SDIO, I2C, LED, PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI, compatible with ISO11898-1)

Note: For detailed technical specifications go through the datasheet in the attachment.


Package Includes:

1 x Espressif ESP32-WROOM-32E 16M 128Mbit Flash WiFi Bluetooth Module

Processor

Xtensa Dual-Core 32-bit LX6

Operating Voltage (VDC)

3 ~ 3.6

ROM

448 KB

SRAM

520

SPI Flash

4 MB

WIFI

802.11 b/g/n

Crystal Oscillator

40 MHz

Bluetooth Version

BLE
v4.2 BR/EDR

Wi-Fi Mode

Station/softAP/SoftAP+station/P2P

Security

WPA/WPA2/WPA2-Enterprise/WPS

Encryption

AES/RSA/ECC/SHA

Length (mm)

30

Width (mm)

20

Height (mm)

3

Weight (gm)

10

Shipment Weight

0.01 kg

Shipment Dimensions

5 × 2 × 1 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
