FlexiForce A301/1 Force Sensor

Availability:

In stock


SKU: 125465

The A301 is optimized for high volume manufacturing and ideal for embedding into products and applications.

Applications
  1. Testing and Measurement Equipment
  2. Embedded Electronics
  3. OEM Development Kit
  4. Consumer Electronics
  5. Multimeter

 719.00

(inc GST)

₹ 609.32 (+18% GST extra)

In stock

Purchase this product now and earn 8 Robu Points!
Brand: Tekscan
Category: Load / Pressure / Force / Flex Sensor
Tags: Tekscan FexiForce Sensor

The A301 is optimized for high volume manufacturing and ideal for embedding into products and applications.

The dynamic range of this small force sensor can be modified by changing the drive voltage and adjusting the resistance of the feedback resistor.

Applications
  1. Testing and Measurement Equipment
  2. Embedded Electronics
  3. OEM Development Kit
  4. Consumer Electronics
  5. Multimeter

How to Adjust the Force Range:

In order to measure higher forces, apply a lower drive voltage (-0.5 V, -0.25 V, etc.) and reduce the resistance of the feedback resistor (1kΩ min.) To measure lower forces, apply a higher drive voltage and increase the resistance of the feedback resistor. For an alternative to the recommended circuit, see the Related Electronics tab.

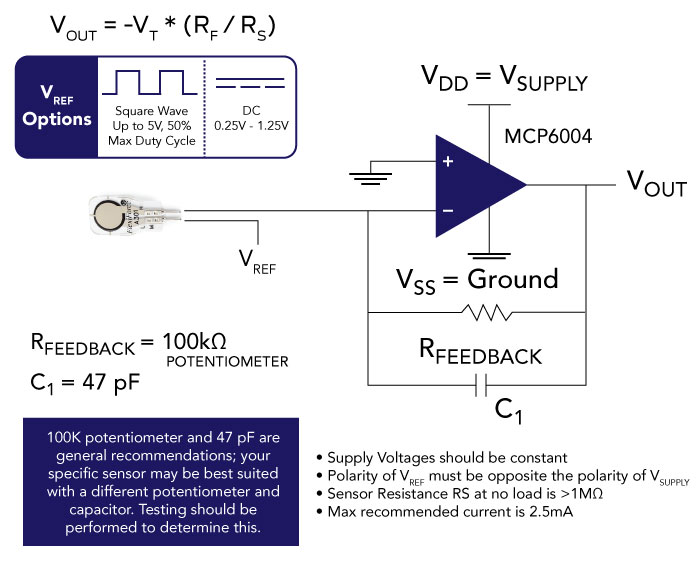

A301 circuit diagram


Typical Performance

Linearity (Error):  < ±3% of Full Scale (Line drawn from 0 to 50% load)

Repeatability:  < ±2.5% (Conditioned Sensor, 80% of Full Force Applied)

Hysteresis:  < 4.5 % of Full Scale (Conditioned Sensor, 80% of Full Force Applied)

Drift:  <5% / logarithmic time (Constant Load of 25 lb (111 N))

Response Time:  < 5 µsec (Time required for the sensor to respond to an input force; Impact load – recorded on Oscilloscope)

Operating Temperature:  -40°C – 60°C (-40°F – 140°F)*

* Force reading change per degree of temperature change = 0.36%/ºC (±0.2%/ºF)


Package Includes:

1 x FlexiForce A301/1 Force Sensor

Force Range

0-111N (0 – 11 Kg)

Length ( cm )

25.4 mm

Width (mm)

14

Thickness (mm)

0.203

Connector

2-pin Male Square Pin

Pin Spacing (mm)

2.54

Operating Voltage (VDC)

0.25 ~ 1.25

Sensing Area (mm)

9.53

Surface Layer

Polyester

Max Current (A)

0.2

Drift

< 5% per logarithmic time scale

Hysteresis

< 4.5 % of full scale

Linearity (Error)

< ±3% of full scale

Repeatability

< ±2.5%

Response Time ( μS)

5

Operating Temperature Range (°C)

-40 to 60

RoHS Compliant

Yes

Shipment Weight

0.005 kg

Shipment Dimensions

8 × 2 × 1 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
