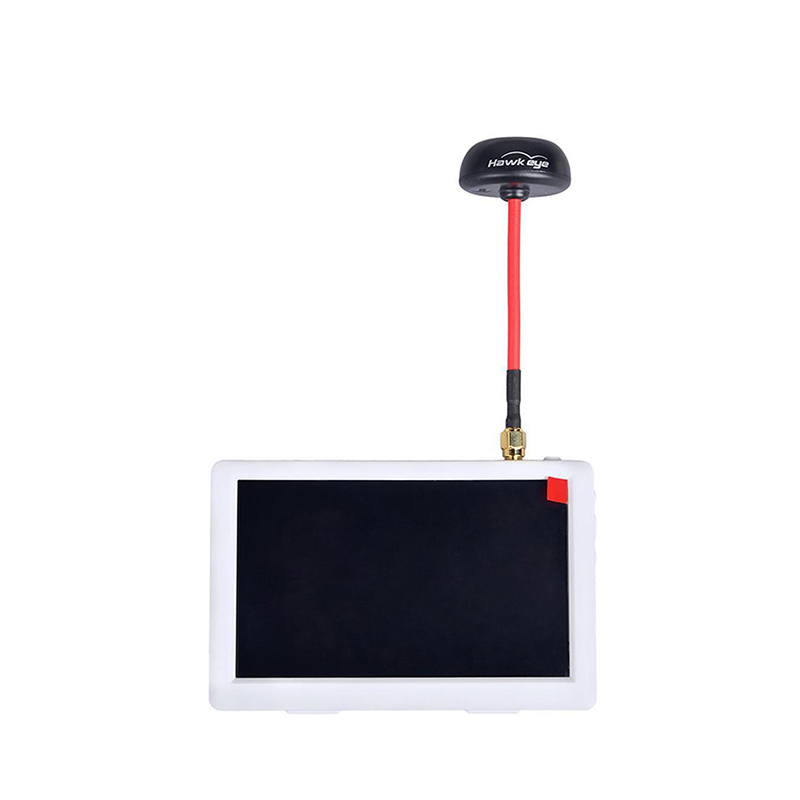

Hawk Eye Little Pilot Monitor Display Screen With Receiver
Hawk Eye Little Pilot Monitor Display Screen With Receiver Hawk Eye Little Pilot Monitor Display Screen With Receiver

Hawk Eye Little Pilot Monitor Display Screen With Receiver

1 Review
Availability: Out stock
SKU: 56827

QUICK OVERVIEW

  1. Display Size: 5″
  2. Display Resolution: 800×480
  3. Backlight: LED
  4. Backlight Brightness: 700 cd/m2
  5. Response Time: 10ms
  6. Format: PAL/NTSC
  7. Built-In Battery Working Time: 2.5-3 hours

 6,890.00

(inc GST)

₹ 5838.98 (+18% GST extra)

Out of stock - Join the waitlist to be emailed when this product becomes available

.FPV monitors don’t come much more compact than the 5 inch Hawkeye Little Pilot all-in-one display, FPV receiver. Its low weight is also an advantage if you plan to mount it on your radio transmitter. The Little Pilot only weighs 166grams, so you’ll barely notice the difference with it attached.

Hawk Eye Little Pilot Monitor Display Screen With Receiver is a 5-inch wireless display Monitor which receive the video signal from the transmitter. It comes with the various built-in function such as Auto channel searching function,  On-screen voltage indicator, On-screen operation duration, On-screen receiving intensity display.

It can last up to 3 hours with its battery life when fully charged. With the help of A mounting bracket comes in a package, it is very easy to install on your radio transmitter your required platform.

Its super strong anti-interference design ensures the stable flying and Integrated 800 × 480 resolution on a 5-inch screen produces the high-quality picture. Hawk Eye Little Pilot Monitor Display Screen With Receiver has video out for the purpose where you can connect an external display and Power out to for taking power out power output if required.

Even though it’s small, it still boasts a lot of features. The screen has a very bright 700 cd/m² LED backlight, which makes it one of the brightest we have used and suitable for outdoor applications. For those that plan to use the screen for FPV, you’ll be pleased to know that the screen doesn’t suffer from ‘blue screen’ when the signal drops. The display even features a signal strength indicator. So you’ll know when you’re running out of range, and a timer so you’ll be able to gauge how much battery life you have left.

The Little Pilot’s inbuilt 5.8GHz receiver matches the screen on its performance. It boasts 32 channels, across four bands making it compatible with most FPV equipment on the market including Fat Shark and ImmersionRC.

Finally, the Little Pilot even comes with its own handy radio transmitter mount. The screen is securely held in a large clip style mount, which means it can be detached quickly if you want to remove it for charging or simply to use it away from your radio control. The mount features a ball socket, letting you easily position the screen to suit your preferred viewing angle.


Features :

  1. 800×480 high definition 5 inch backlit led screen
  2. Inbuilt 32 channel receiver with raceband
  3. On-screen timer and signal strength indicator (OSD)
  4. One key automatic frequency search
  5. Manual selection of channel frequency also supported
  6. Compact size includes CNC aluminum bracket for the radio mounting
  7. Includes circularly polarised antenna
  8. Built-in battery, charge via USB

Package Includes:

1 x Monitor.
1 x Mounting bracket.
A Mushrooms antenna.
A Video Out Cable.
Power Out Cable.
User Manual.

Brand

HawkEye

Display Size

5"

Pixel Resolution

800 x 480

Backlight

LED

Brightness

700 cd/m2

Display Ratio

16:9

Response Time

10ms

Format

PAL/NTSC

Battery Operating Time

2.5 to 3 (hours)

Output Signal

Video

Antena Interface

RP-SMA Male

Sensitivity

-94 (db)

Dimensions in mm (LxWxH)

14x128x84

Weight (gm)

166

Shipment Weight

0.58 kg

Shipment Dimensions

15 x 8 x 6 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
