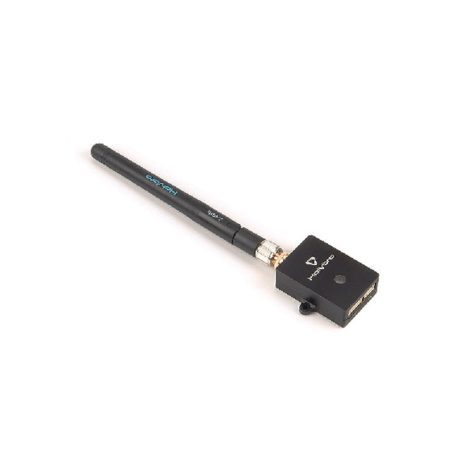

Holybro Remote ID With Case

Availability:

In stock


SKU: 1777630
  1. model: Holybro Remote ID With Case
  2. Compact and Lightweight
  3. Upgradeable and Versatile
  4. low-cost, small-size, and lightweight module

 3,524.00

(Including GST)

In stock

Purchase this product now and earn 36 Robu Points!

Very Low Stock. Order Now !


Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
3 Months Warranty
Cash On delivery
Cash on Delivery*

Didn’t Find what you are looking for?

Brand: Holybro
Category: FPV Antennas and Trans-Receivers

Holybro RemoteID Module is a low-cost, small-size, and lightweight module that broadcasts information about UAVs in flight through WiFi and Bluetooth. It supports both CAN and serial protocols. It is an FCC and CE-approved radio module. The products run open-source firmware (ArduRemoteID) and provide a so-called standard Remote ID solution, primarily targeting drone manufacturers & system integrators.

Note: This product is designed for the Standard Remote ID Solution, primarily targeting drone manufacturers and system integrators, as you need to do your own approval process at the FAA (DoC submission) if you are in the USA. For the most accurate and latest information related to this topic, please refer to the official governance website of your country.


Features:

  1. Remote ID Broadcasting: Low-cost module broadcasting UAV flight data via WiFi and Bluetooth.
  2. Protocol Support: Supports CAN and serial protocols for versatile connectivity.
  3. Regulatory Compliance: FCC and CE-certified, designed for Standard Remote ID Solution.
  4. Open-Source Firmware: Runs on Espressif ESP-C3 with ArduRemoteID firmware.
  5. Compact and Lightweight: Small form factor with CNC case, antenna options, and M2 screw mount.
  6. Upgradeable and Versatile: Supports firmware upgrades via web interface, compatible with PX4 & Ardupilot.

Package Includes:

1x Remote ID
1x Antenna
1x JST GH 6pin 150mm Cable
1x JST GH 4pin 150mm Cable

SKU: 1777630 Category:
Radio module

1. Espressif ESP-C3 module.
2. Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW)
3. FCC & CE certified radio module

Firmware

1 ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID).
2. Supports upgrading firmware via the web interface (“OTA”)
3. Supported in PX4 & Ardupilot

Protocols

CAN & Serial

Interface

1. 1x JST GH 4-pin CAN (CAN) port

2. 1x JST GH 6-pin TELEM (UART) port

Antenna Connector type

1. On CNC Case: SMA connector
2. On PCB: IPEX Connector

Range

5km detection range

Power

5V supplied from TELEM or CAN port

LED lights

Bright RGB status LED

Size

1. Without case: 35.3 x 23.5 mm (not including antenna)

2. With CNC case: 38 x 26.5 x 11.5 mm (not including antenna)

Mount

M2 screws

Operating temperature

-40°C to +85°C

Weight

1. PCB only: 4 g

2. With CNC case & Antenna: 27.5g

3. Without case & Antenna: 16.5g (Cable 20cm)

Certification

FCC& CE

Shipping Weight 0.45 kg
Shipping Dimensions 13 × 9 × 3 cm
3 Months Warranty

This item is covered with a standard supplier warranty of 3 months from the time of delivery against manufacturing defects only. This is a quality product & only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
