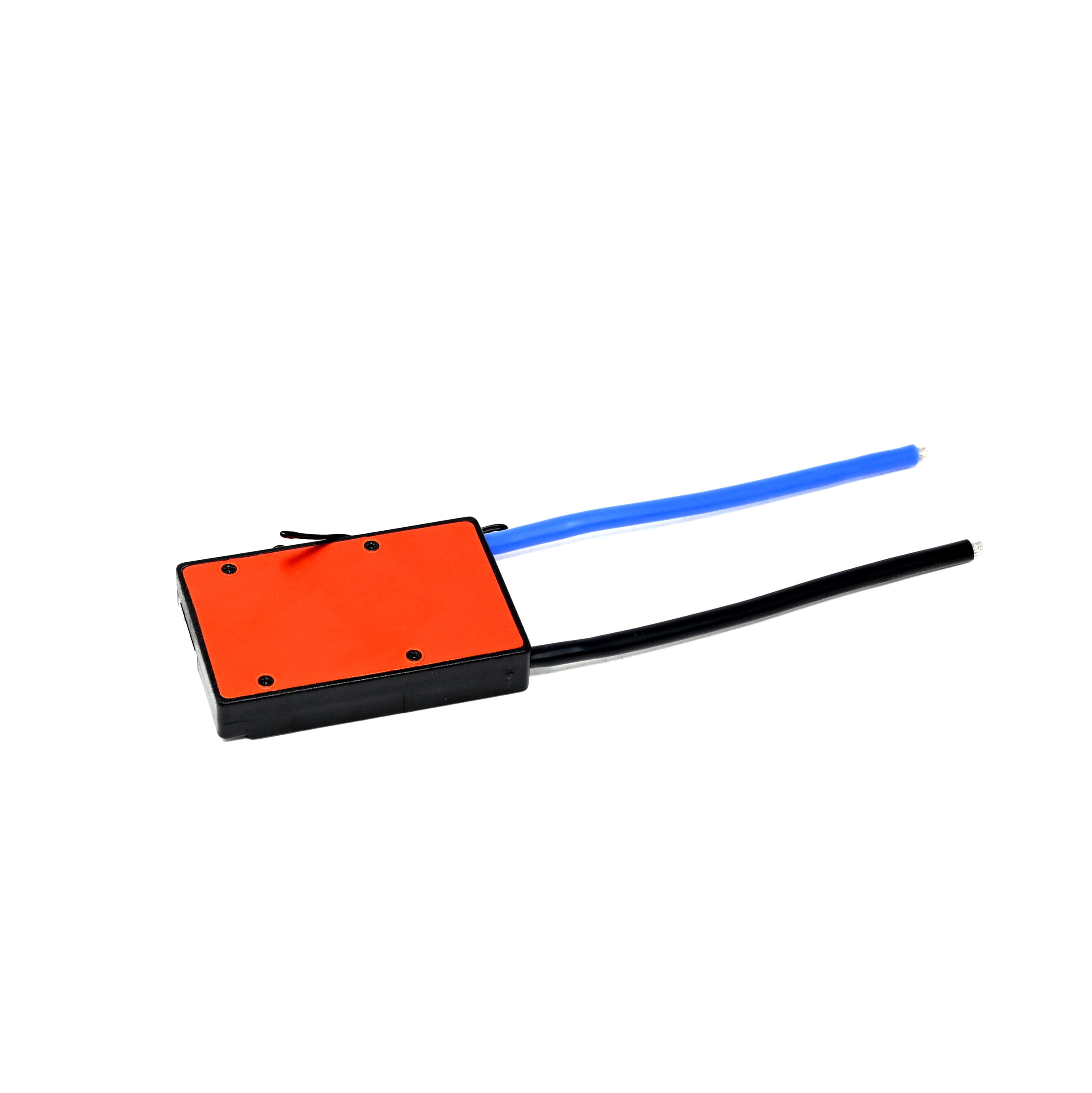

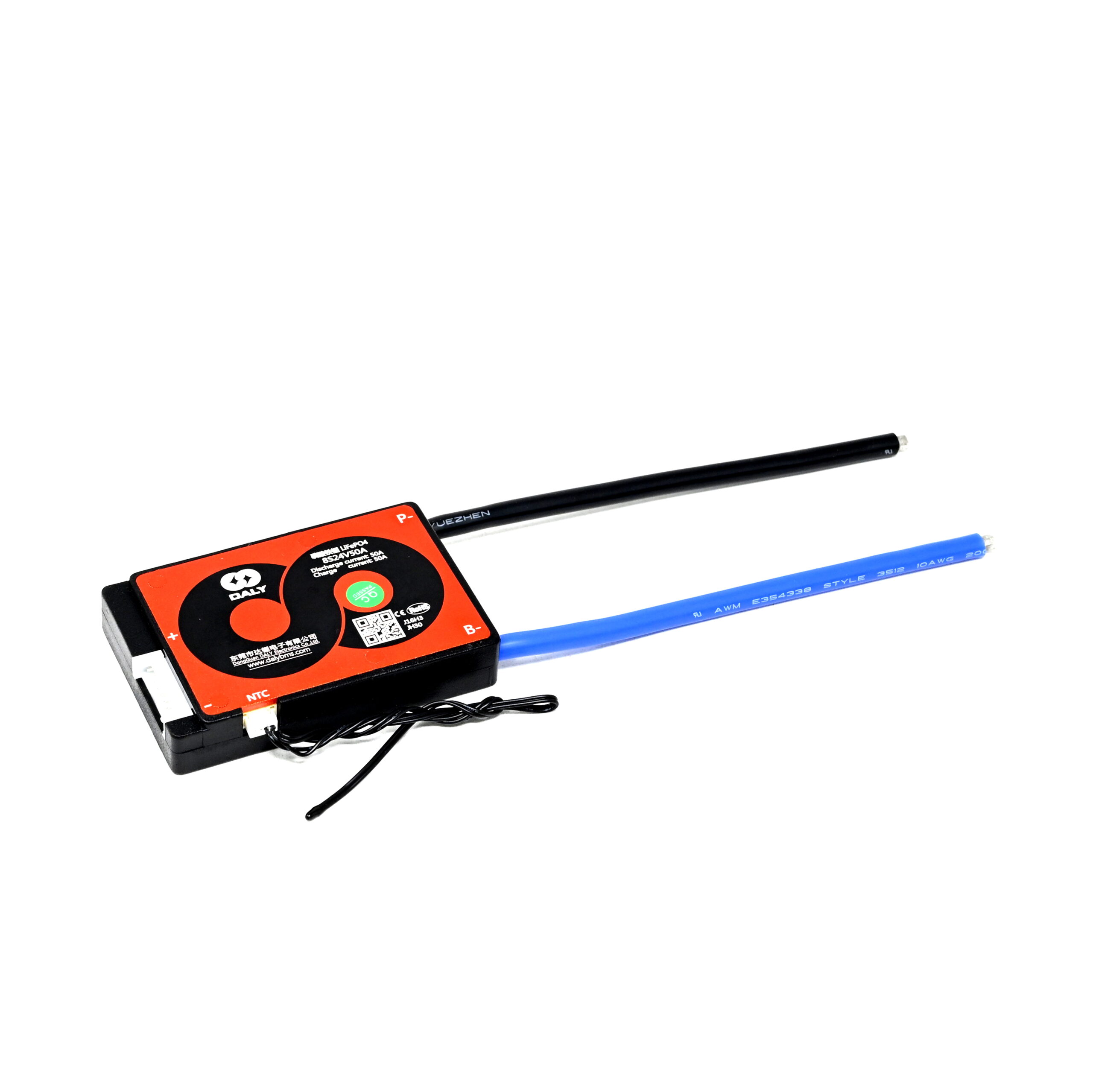

Orange Lifepo4 8S 25.6V 50A Battery Management System

Availability:

In stock


SKU: 1094251
  1. Model:8S 25.6V 50A
  2. Charge Voltage(V):29.2
  3. Charge Current(A):25
  4. Balance Current(mA):30±5
  5. Balance Detect Voltage(V):3.6
  6. State of charge calculations.
  7. Cell over-voltage and under-voltage protection.
  8. Intelligent battery balancing (passive).

 2,039.00

(inc GST)

₹ 1727.97 (+18% GST extra)

In stock

Purchase this product now and earn 21 Robu Points!
Brand: Orange
Category: Orange Premium BMS
Tags: Lifepo4 BMS

Orange Lifepo4 8S 25.6V 50A  Battery Management System Circuit is an 8 Cell in Series 25.6V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.

Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.


Features:

  1. State of charge calculations.
  2. Cell over-voltage and under-voltage protection.
  3. Intelligent battery balancing (passive).
  4. Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions

Specifications:

  1. Model:8S 25.6V 50A
  2. Charge Voltage(V):29.2
  3. Charge Current(A):25
  4. Balance Current(mA):30±5
  5. Balance Detect Voltage(V):3.6
  6. Working Current(uA):100
  7. Overcharge Detect Voltage(V):3.75±0.05

Package Includes:

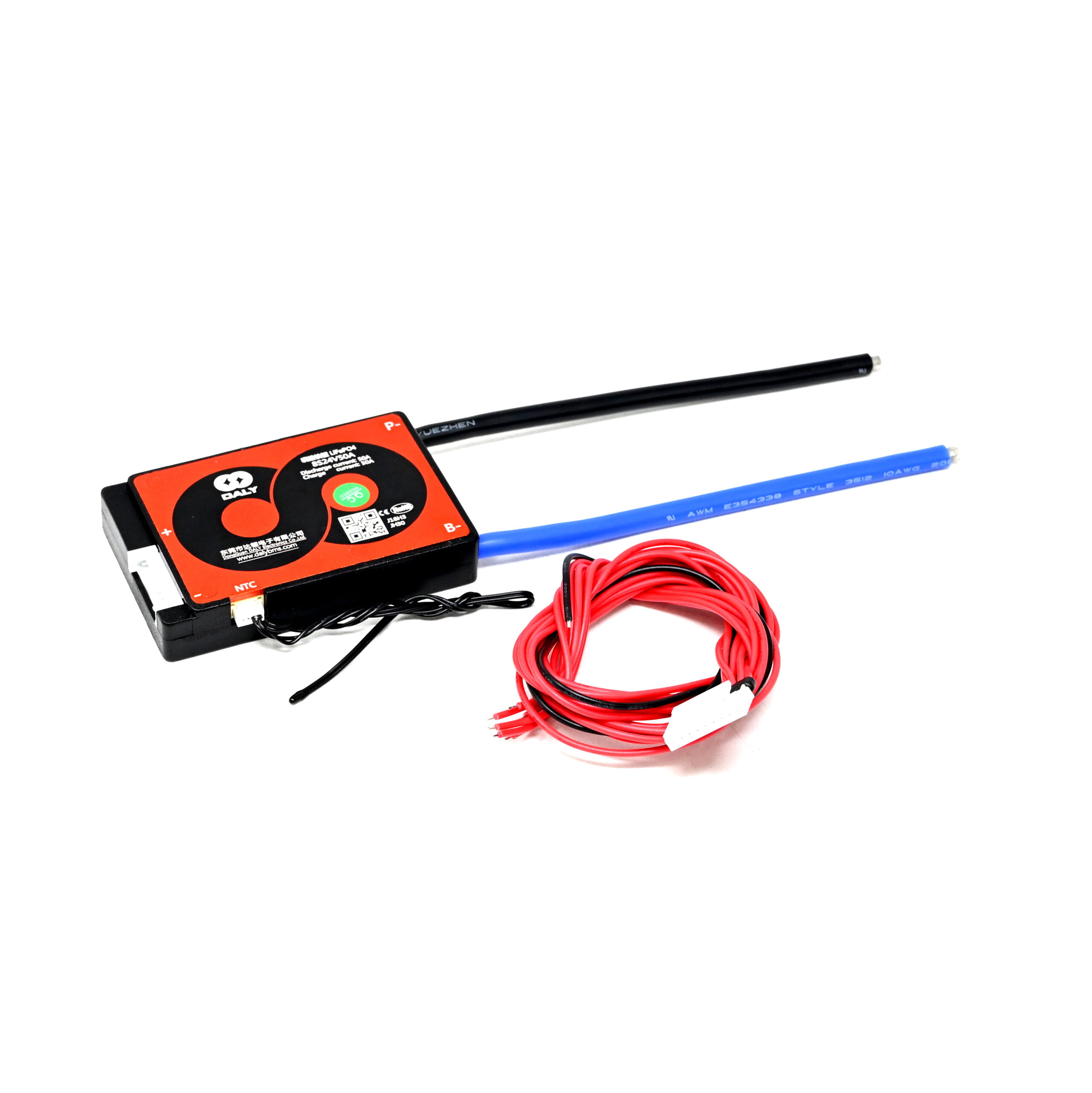

1 x Orange Lifepo4 8S 25.6V 50A Battery Management System

Balance Current(mA)

30±5

Balance Detect Voltage(V)

3.6

Cable Size (AWG)

10

Charge Current(A)

25

Charge Voltage(V)

29.2

Height (mm)

15

Length (mm)

80

Model

8S 25.6V 50A

Over Discharge Detect(V)

2.2±0.1

Over Discharge Release(V)

2.7±0.1

Overcharge Detect Voltage(V)

3.75±0.05

overcharge Release Voltage(V)

3.55±0.05

Weight (gm)

123

Width (mm)

65

Working Current(uA)

100

Working Temperature Range (°C)

-20 to 70

Shipment Weight

0.141 kg

Shipment Dimensions

14 × 9 × 1 cm

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.


What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
