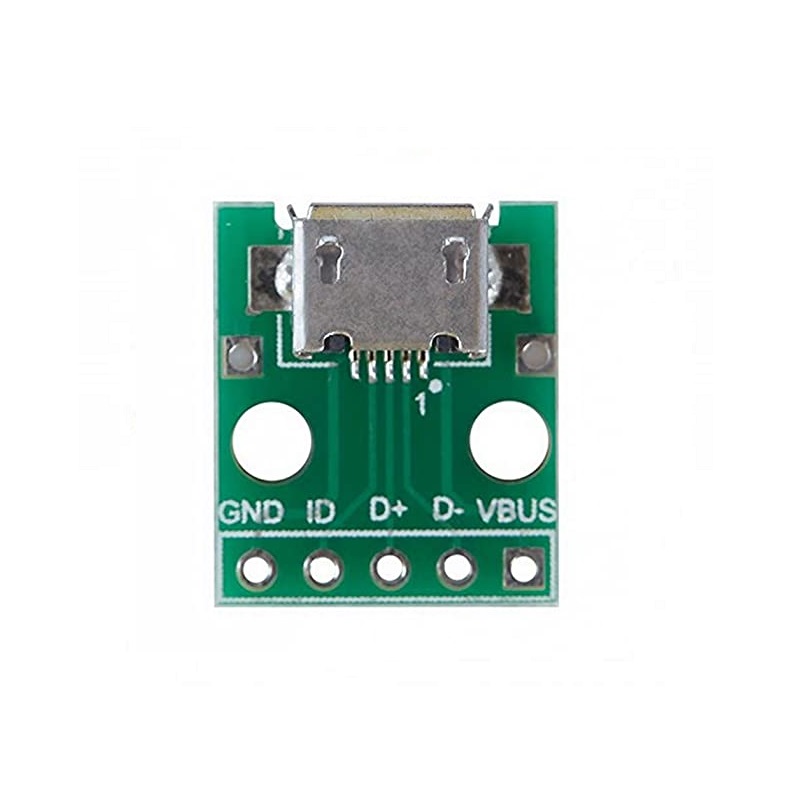

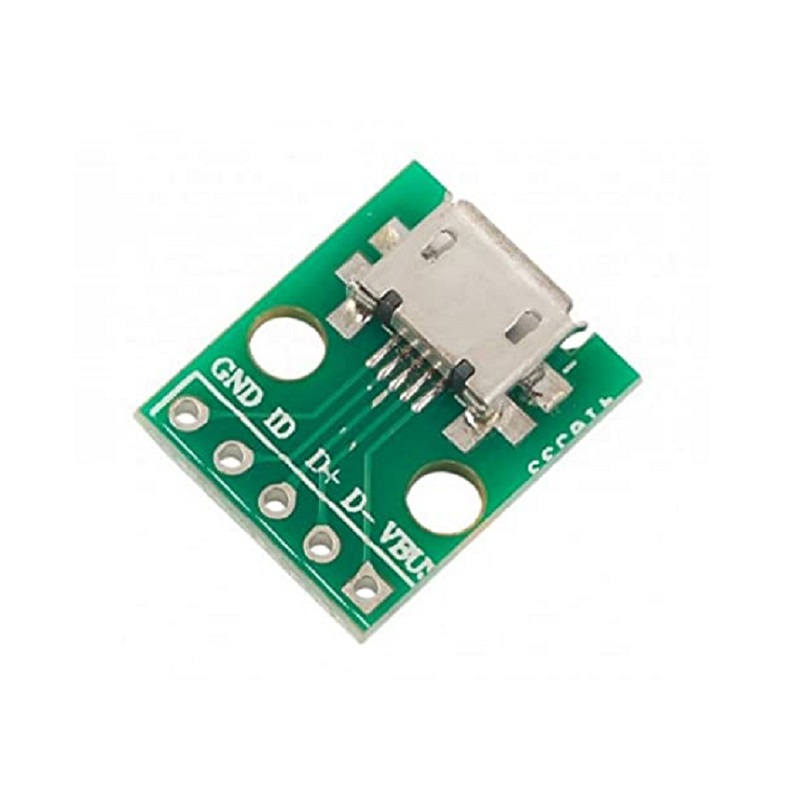

MCU-Micro USB Breadboard 5V Power Supply Module 5Pin Female Connector B type PCB Converter. This breakout board is great for interfacing USB Signals with your custom designed microcontroller boards. It also is useful if all you want is access to 5V USB power for your prototype circuits such as breadboards, perforated boards or Vero boards.
Note: This board comes with unsoldered header pin.
Pinouts:
- VCC: 5V Power Supply
- D- : USB D- Signal
- D+: USB D+ Signal
- ID: USB Identifier Signal for OTG Devices
- GND: Power Ground
Package Includes :
1 x MCU-Micro USB Breadboard 5V Power Supply Module
Madhab Sharma (verified owner) –
Well, the board is good. But it’s similar to the one with the green silkscreen. A note: it will come out of the PCB if you yank the charger in. So solve it. I solder the side legs with a bit of solder because there is too less solder joining the side legs. So I prefer soldering the side legs before yanking anything in.
