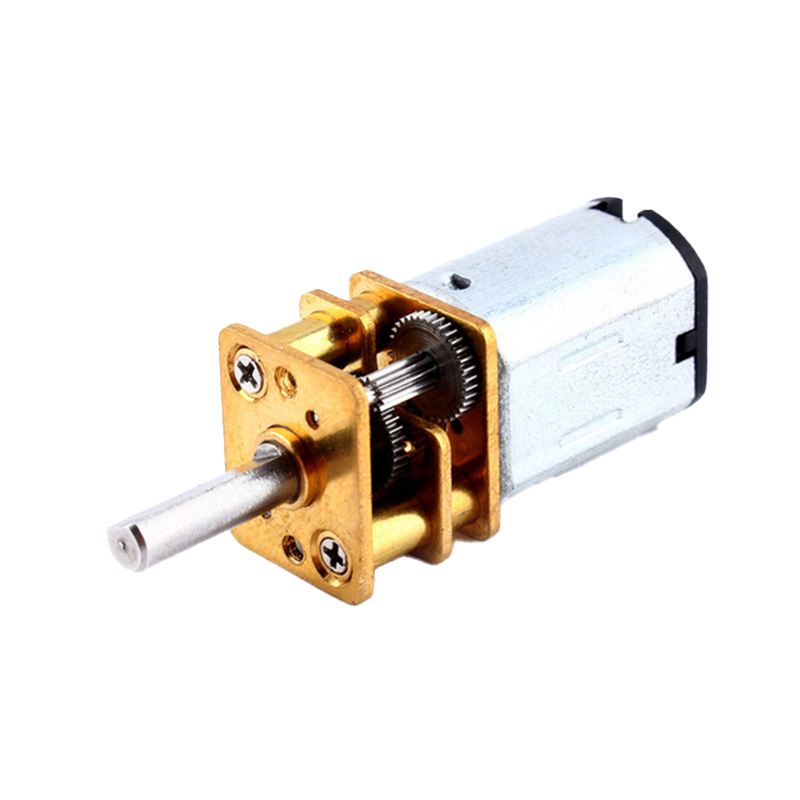

N20-6V-200 RPM Micro Metal Gear-box DC Motor

(1 customer review)
Availability:

In stock


SKU: 75011
  1. This is a DC Mini Metal Gear Motor, ideal for making robots
  2. Lightweight, high torque and low RPM.
  3. Fine craftsmanship, durable, not easy to wear.
  4. With excellent stall characteristics, can climb hills easily.
  5. You can also easily mount a wheel on the motor’s output shaft.

 269.00

(inc GST)

₹ 227.97 (+18% GST extra)

In stock

Purchase this product now and earn 3 Robu Points!
Category: N20 Motor without Encoder
Tags: Small robot, Hobby Robotics, Lego Robotics, Robot arm

This N20-6V-200 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

The N20 Micro Gear 6V 200 RPM DC Motor is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.

This N20 Micro Gear 200RPM 6V DC Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

Motors with the variety of torque and speed ranging from low to high are available at Robu.in.


Features :

  1. This is a DC Mini Metal Gear Motor, ideal for making robots
  2. Lightweight, high torque and low RPM.
  3. Fine craftsmanship, durable, not easy to wear.
  4. With excellent stall characteristics, can climb hills easily.
  5. You can also easily mount a wheel on the motor’s output shaft.

Package Includes :

1 x N20-6V-200 RPM Micro Metal Gear-box DC Motor

Model No.

N20-6V-200

Operating Voltage (VDC)

3 ~ 6

No Load Current (mA)

0.04 A

Stall Current (A)

0.67

Rated Torque(kg-cm)

0.4

Stall Torque(Kg-Cm)

1.2

Motor Body Size (Diameter) (mm)

12

Rated Operating Voltage (VDC)

6

No load Speed (RPM)

200

Rated Speed (RPM)

200

Shaft Type

D-type
Single Side

Shaft Diameter (mm)

3

Weight (gm)

12

Output Axial Length (mm)

10

Fuselage w/o Shaft Length

26

Screw Size

M3

Shipment Weight

0.016 kg

Shipment Dimensions

6 × 6 × 2 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
