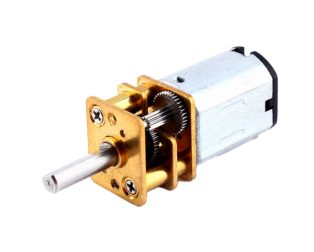

N20-6V-400 Rpm Micro Metal Gear Motor

(2 customer reviews)
Availability:

In stock


SKU: 75813
  1. This is a DC Mini Metal Gear Motor, ideal for making robots
  2. Lightweight, high torque and low RPM.
  3. Fine craftsmanship, durable, not easy to wear.
  4. With excellent stall characteristics, can climb hills easily.
  5. You can also easily mount a wheel on the motor’s output shaft.

 269.00

(inc GST)

₹ 227.97 (+18% GST extra)

In stock

Select below products to add together

Mounting Bracket for N20 Micro Gear motors-2pcs ₹ 65

New Price: ₹ 269


Purchase this product now and earn 3 Robu Points!
Category: N20 Motor without Encoder
Tags: Small robot, Hobby Robotics, micro gear motor, N20, Lego Robotics, Robot arm

This N20-6V-400 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

The N20 Micro Gear 6V 400 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.

This N20 Micro Gear 400RPM 6V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

Motors with the variety of torque and speed ranging from low to high are available at Robu.in.

Note: Image of product may differ from Actual Product.


Features :

  1. This is a DC Mini Metal Gear Motor, ideal for making robots
  2. Lightweight, high torque and low RPM.
  3. Fine craftsmanship, durable, not easy to wear.
  4. With excellent stall characteristics, can climb hills easily.
  5. You can also easily mount a wheel on the motor’s output shaft.

Package Includes :

1 x N20-6V-400 Rpm Micro Metal Gear Motor

Model No.

N20-6V-400

No Load Current (mA)

0.04 A

Stall Current (A)

0.67

Stall Torque(Kg-Cm)

0.65

Rated Torque(kg-cm)

0.18

Motor Body Size (Diameter) (mm)

12

Operating Voltage (VDC)

3 ~ 6

Rated Operating Voltage (VDC)

6

No load Speed (RPM)

400

Rated Speed (RPM)

400

Shaft Type

D-type
Single Side

Shaft Diameter (mm)

3

Weight (gm)

12

Output Axial Length (mm)

10

Fuselage w/o Shaft Length

26

Screw Size

M3

Shipment Weight

0.016 kg

Shipment Dimensions

6 × 6 × 2 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 2 reviews

5.0 overall
2
0
0
0
0

Add a review

  1. Amitava Sarkar (verified owner)

    Good product but price should be up to 300.

    Amitava Sarkar

  2. Amitava Sarkar (verified owner)

    Good product but price should be up to RS 300.

    Amitava Sarkar

Dimentional Diagram
