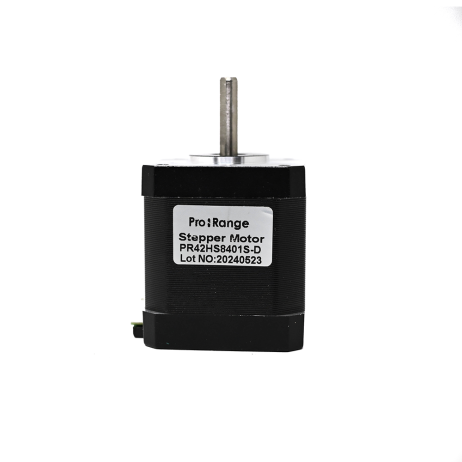

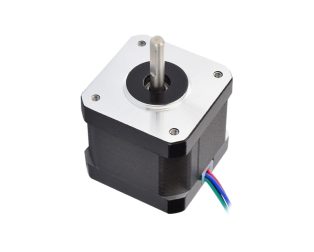

NEMA17 PR42HS8401S Stepper Motor-D Type Shaft

(1 customer review)
Availability:

Out of stock

Approx Restocking Date: 25 to 30 Days
SKU: 1736860
  1. Step Angle: 1.8 °
  2. Current: 2.5 A/Phase
  3. Holding Torque: 4.8 kg-cm
  4. Lead Wires: 4
  5. Shaft Type: D-type

 649.00

(Including GST)

Out of stock


Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Brand: Generic
Category: Nema 17 Stepper Motors, 3D Printer Stepper Motors

The NEMA17 PR42HS8401S Stepper Motor features a D-Type shaft, offering precise motion control with a torque of 4.8 kg-cm. Ideal for applications like 3D printers and CNC machines, its NEMA17 standard dimensions ensure easy integration. The D-Type shaft design enhances compatibility, making it a reliable choice for projects requiring accurate and efficient performance in a compact form factor.


Features :

  1. The input pulse decides the rotation angle of the motor.
  2. High accuracy of around 3 to 5% a step.
  3. Provides good starting, stopping, and reversing.
  4. Control of this motor is less costly because of the exclusion of complex control circuitry.
  5. The speed is proportional to the frequency of the input pulses.

Package Includes :

1 x NEMA17 PR42HS8401S Stepper Motor-D Type Shaft

Item Type:

NEMA 17 Stepper Motor

Shaft Type

D type

Holding Torque Rating:

4.8 kg-cm

Step Angle (Degree)

1.8

Model No.

PR42HS8401S

Supply Current (A)

2.5 A/Phase

No. of Leads

4

Inductance (mH/Phase)

1.8

Resistance (Ω)

1.25

Rotor Inertia (gm-cm2)

68

Holding Torque (kg-cm)

5.8

Detent Torque (kg-cm)

0.28

Shaft Diameter (mm)

5-(Round-side); 4.7-(D-side)

Frame Size (mm)

42 x 42

Motor Length (mm)

50

Shipping Weight 0.376 kg
Shipping Dimensions 8 × 8 × 6 cm
