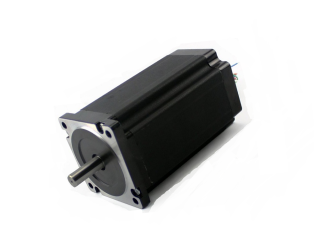

Pro-range NEMA34 PR86HS68-5904 34kg-cm Stepper Motor-KeyWay Type Shaft

Availability:

In stock


SKU: 1736877
  1. Step Angle ( ° ): 1.8
  2. Motor Length (L)mm: 72
  3. Current/Phase A: 5.9
  4. No of Leads: No. 4
  5. Shaft type: Keyway Type



 2,800.00

(Including GST)

In stock

Purchase this product now and earn 28 Robu Points!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: Pro-Range
Category: Nema 34 Stepper Motors

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Nema17 34kg-cm Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

86HS68-5904 NEMA34 34 kg-cm Stepper Motor – Keyway Type Shaft is very useful in various applications, especially those that demand low speed with high precision. Many machines such as 3D Printers, CNC routers and Mills, Camera Platforms, XYZ Plotters, etc.

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.

We are engaged in supplying and wholesaling a quality approved collection of Stepper Motors which are highly acknowledged and accepted for long service life and high reliability. To explore more of them click below,

Stepper Motors

Note:

  1. The Nema17 34kg-cm Stepper motor dimensions and weight may have a ±2% error.
  2. Resonances can occur because of improper mounting.
  3. Not easy to operate at extremely high speeds.

Features :

  1. The input pulse decides the rotation angle of the motor.
  2. High accuracy of around 3 to 5% a step.
  3. It provides good starting, stopping, and reversing.
  4. Control of this motor is less costly because of the exclusion of complex control circuitry.
  5. The speed is proportional to the frequency of the input pulses.

Package Includes :

1 x Pro-range NEMA34 PR86HS68-5904 34kg-cm Stepper Motor-KeyWay Type Shaft




Tutorial:

Stepper Motor Basics

How to control the Unipolar Stepper motor

SKU: 1736877 Category:
Item Type:

NEMA 34 Stepper Motor

Shaft Type

Keyway Type

Holding Torque (kg-cm)

34

Step Angle (Degree)

1.8

Model No.

PR86HS68-5904

Supply Current (A)

5.9

Inductance (mH/Phase)

1.7

Resistance (Ω)

0.28

No. of Leads

4

Rotor Inertia (gm-cm2)

1000

Detent Torque (g-cm)

800

Shaft Diameter (mm)

15.9

Shaft Length (mm)

33

Motor Length (mm)

72

Shipping Weight 1.763 kg
Shipping Dimensions 20 × 15 × 12 cm
15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Pro-range NEMA34 PR86HS68-5904 34kg-cm Stepper Motor-KeyWay Type Shaft”

There are no reviews yet.

Datasheet

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: China
