NHP 36V 6.5A 235W
NHP 36V 6.5A 235W NHP SMPS NHP 36V 6.5A 235W NHP SMPS

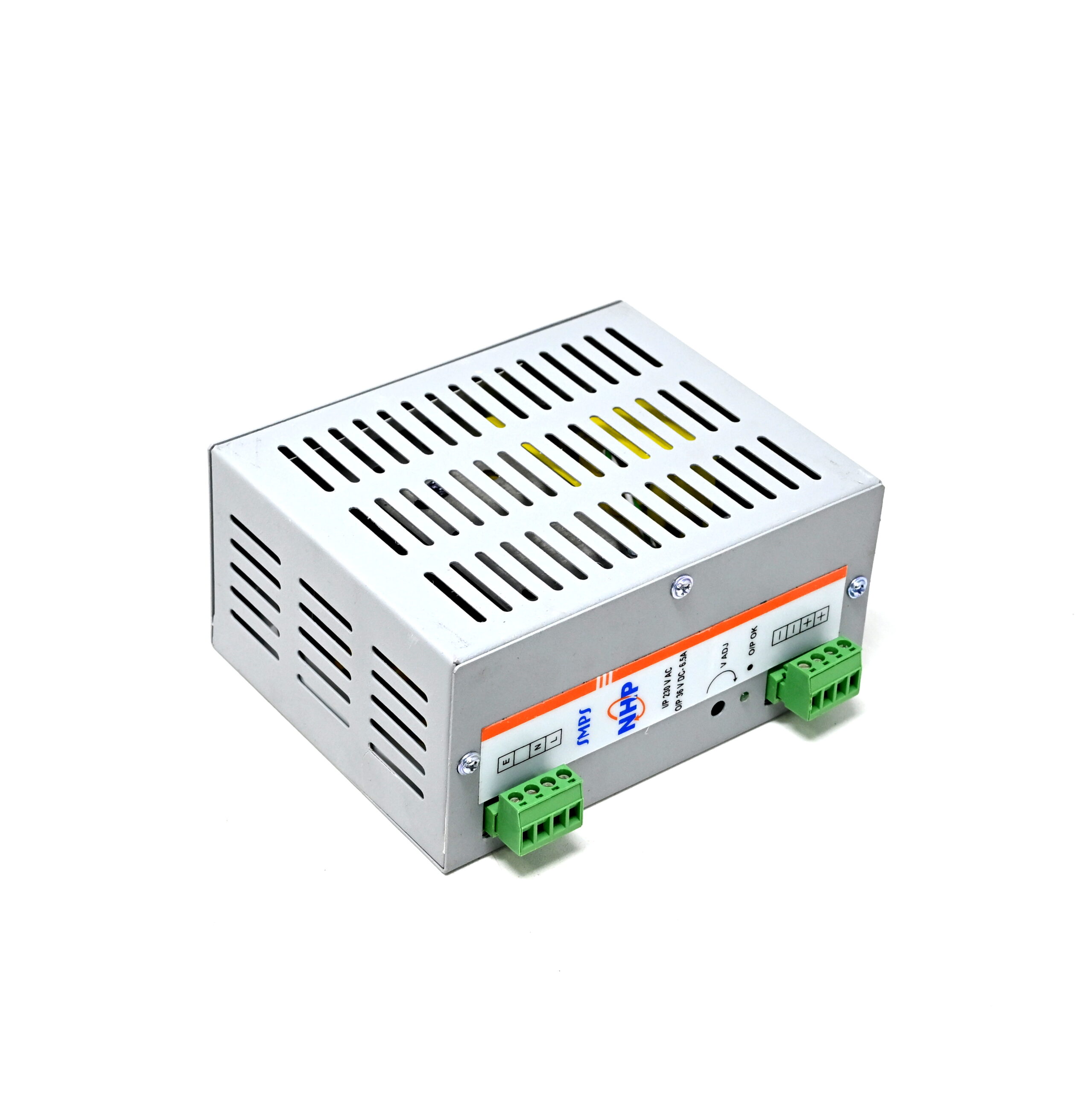

NHP 36V 6.5A 235W Switch Mode Power Supply (SMPS)

Availability: In stock
SKU: 566301


  1. AC Input Voltage: 170 ~ 270 V.
  2. Stable Output Voltage (V DC): 36.
  3. Output Current (Amp): 6.5.
  4. Output Power (Watt): 235.
  5. Line Regulation: 0.5% (FULL LOAD).
  6. Load Regulation: 1% (230 VAC I/P).
  7. Operating Temperature (°C): -20 ~ +70.


(inc GST)

In stock

Purchase this product now and earn 21 Robu Points!

Does your project need a little more power with constant DC voltage? we have a solution to your needs. NHP 36V 6.5A 235W Switch Mode Power Supply (SMPS) is a brand new power supply which we can mount using either rail mount or wall mounted vertically. These SMPS are achieved high efficiency and robust to use;  By using these latest SMPS, you can reduce your electricity bill.

This SMPS is an AC to DC type converter; so as we said it is converting 230 VAC to 36 VDC @ 6.5A. This SMPS will provide you constant output 36V 6.5A means we can drive applications that have maximum current rating up to 6.5A. It includes any type of motor with different RPM, thermoelectric Peltier, etc.

We have been testing this power supply for quite some time and can definitely clarify its durability with its metal casing, short circuit, overload, and overvoltage protection. It comes with a sufficient amount of heat dissipation case.

We have a variety of SMPS available on our site have a look Click here!


  1. High MTBF.
  2. Design as per international standards.
  3. It occupies very less panel footprint.
  4. Wall or Rail mountable.
  5. It can handle very high inrush currents without failure.
  6. All protection features are auto-recovery.
  7. Protection available for:
    1. Input under /over voltage.
    2. Output overload / short circuit   (cvcc type).
    3. Output overvoltage.
    4. Thermal overload/over temperature.

Package Include:

1 x NHP 36V 6.5A 235W Switch Mode Power Supply (SMPS).

Model No.


Mounting Type

Both Surface/Panel and Din-Rail Mount

AC Input Voltage

170 ~ 270 V

Stable Output Voltage (V DC)


Output Current (Amp)


Output Power(Watt)


Line Regulation

0.5% (FULL LOAD)

Load Regulation

1% ( 230VAC I/P)

Operating Temperature (°C)

-20 ~ +70

Opt. Relative Humidity(RH)


Length (mm)


Width (mm)


Height (mm)


Weight (gm)


Shipment Weight

1.15 kg

Shipment Dimensions

20 x 20 x 10 cm

6 Months Warranty

This item is covered with supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
