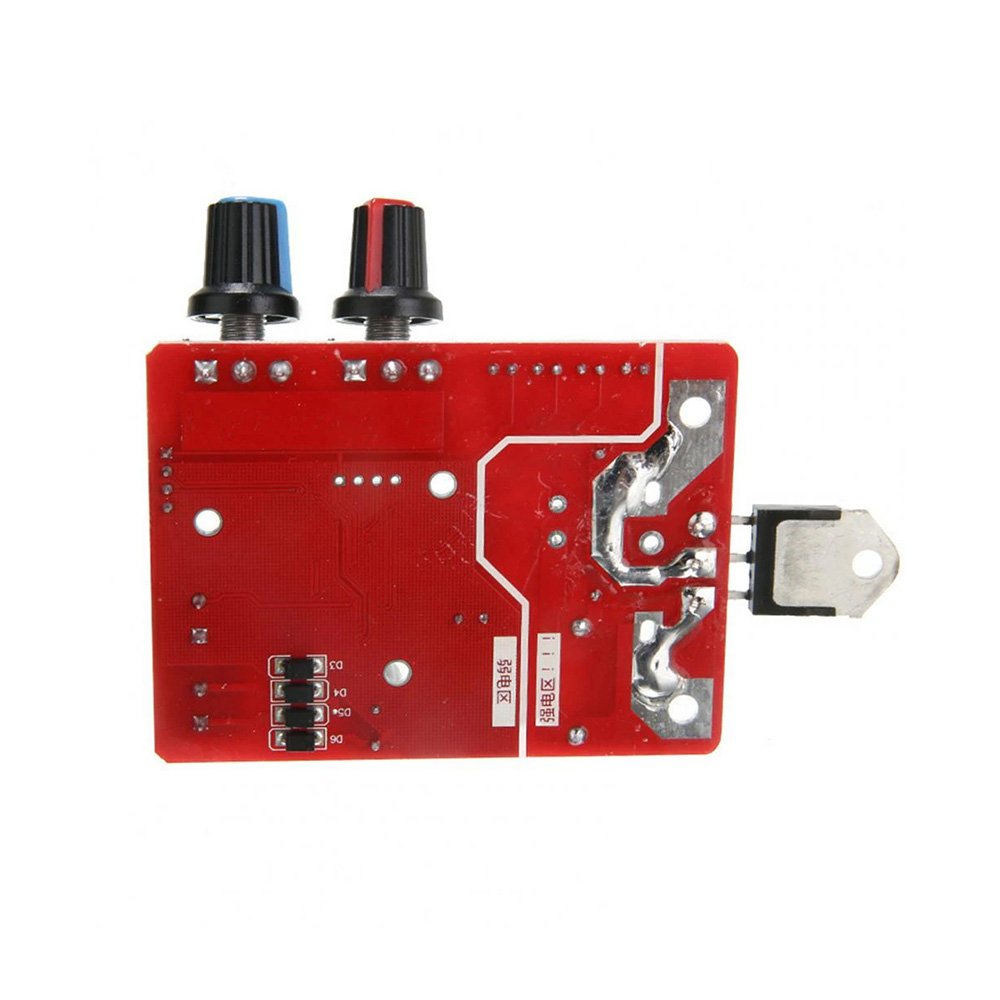

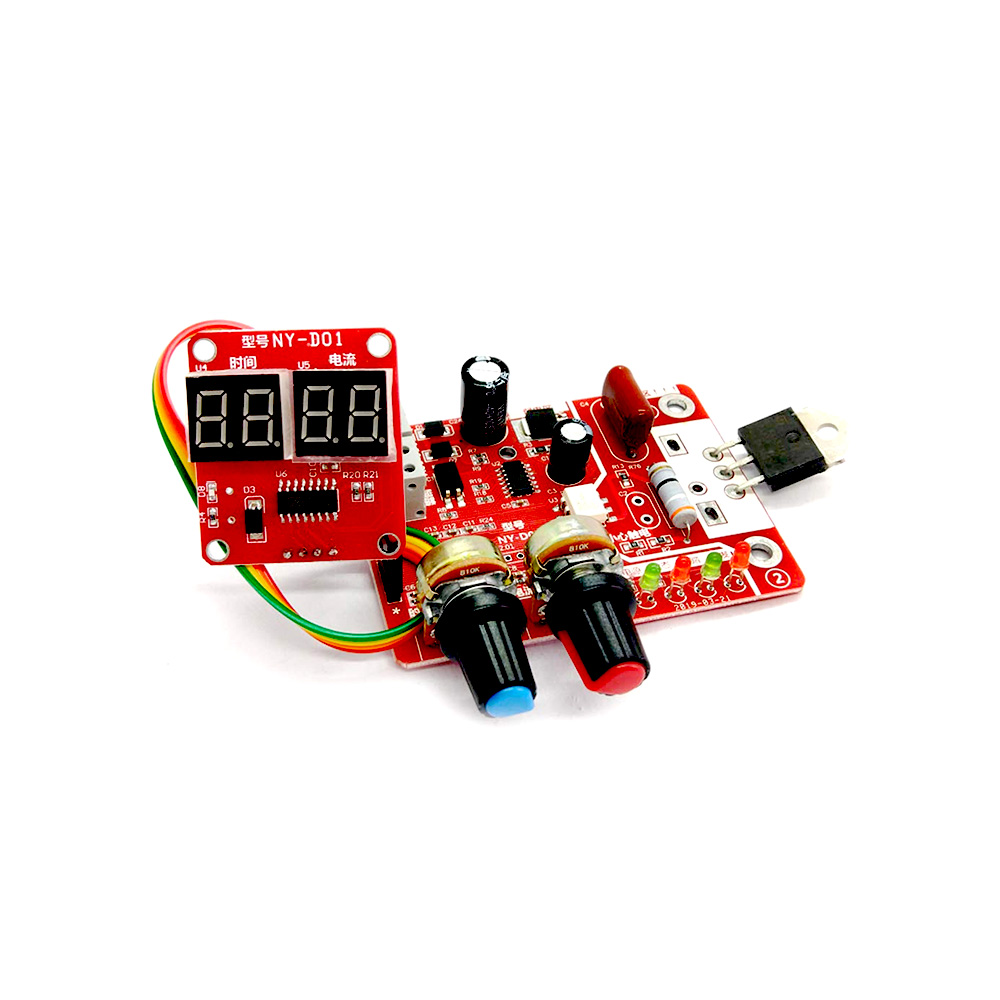

NY-D01 40A Digital Display Spot Welding Controller Board

Availability:

Out of stock - Join the waitlist to be emailed when this product becomes available

Approx Restocking Date: NA
SKU: 1150765
  1. Material: Plastic+Metal
  2. The controller is compatible with 100A SCR.

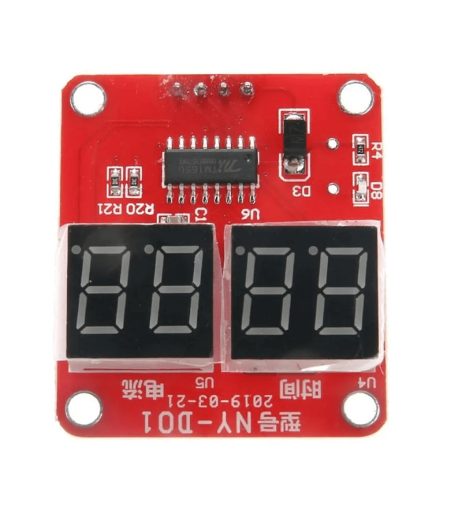

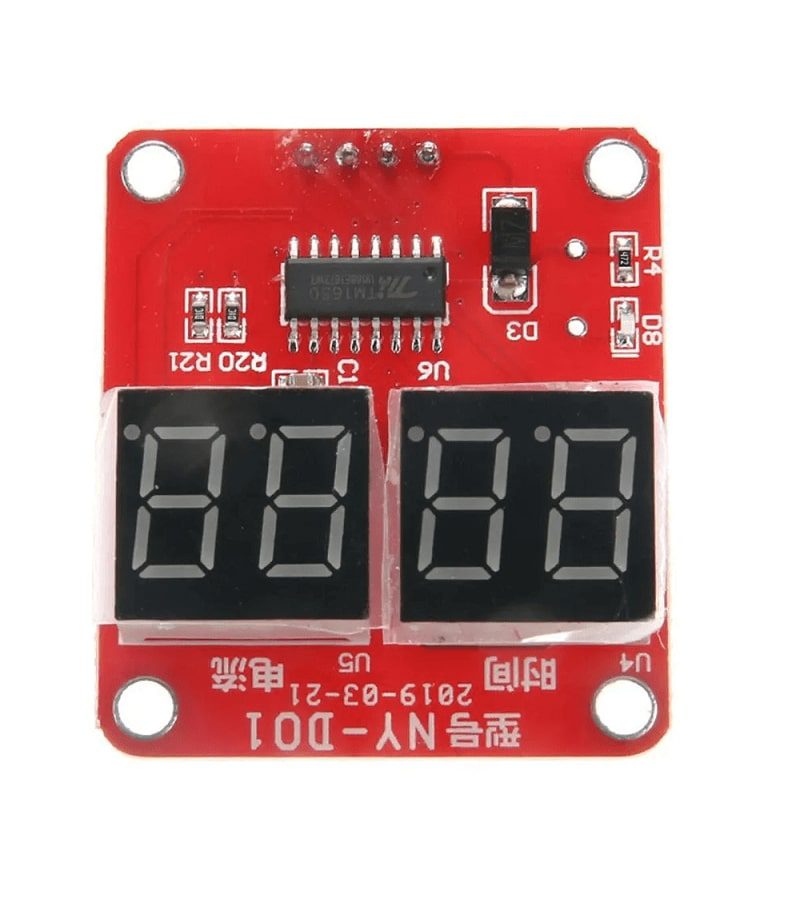

  3. Digital control interface, you can display the current time and current settings.
  4. Time input 1-50, unit cycle (1 cycles is 20ms)

 1,099.00

(inc GST)

₹ 931.36 (+18% GST extra)

Out of stock - Join the waitlist to be emailed when this product becomes available

Brand: Generic
Category: Electronic Modules

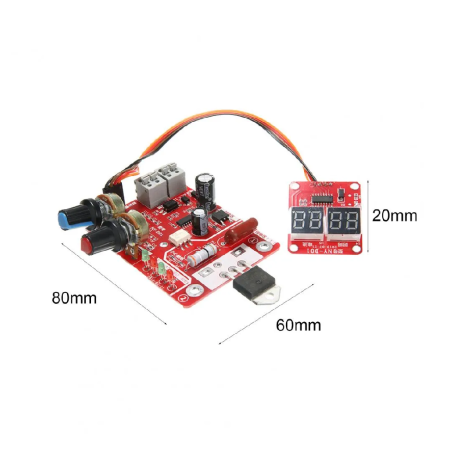

The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve welding. With a digital display, you can directly see the time and current. Optocoupler isolates the strong and weak electricity, making the operation safer. Using a high-precision single potentiometer to ensure reliable and convenient input. The design of a reliable zero-crossing detection circuit ensures the SCR phase shift accuracy. Made of high-quality PCB, the control board is long-lasting. The module is 8cm long, 6cm wide and 2cm high. It is developed for DIY or simple resistance welding.


Features:

1 The use of STM8 industrial control centre microcontroller.
2 Strong and weak electricity through optocoupler insulation, safe operation.
3 The power line and footswitch line adopts the bolt the quick connect terminal, more convenient and reliable.
4 Input time, current using a high-precision simple potentiometer, to ensure reliable, convenient input
5 On-board power supply, state, foot, trigger indicator, work status clearly visible.
6 The design of a reliable zero-crossing detection circuit to ensure that the SCR phase shift accuracy.
7 The controller is compatible with 40A SCR.
8 Digital control interface, you can display the current time and current settings.
9 Input time of 1-50, cycle unit (1 cycles is 20 ms), current input (30-99%),

Specification:

  1. Material: Plastic+Metal
  2. The controller is compatible with 40A SCR.
  3. Digital control interface, you can display the current time and current settings.
  4. Time input 1-50, unit cycle (1 cycle is 20ms)

Package Includes:

1 x NY-D01 40A Digital Display Spot Welding Controller Board

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
