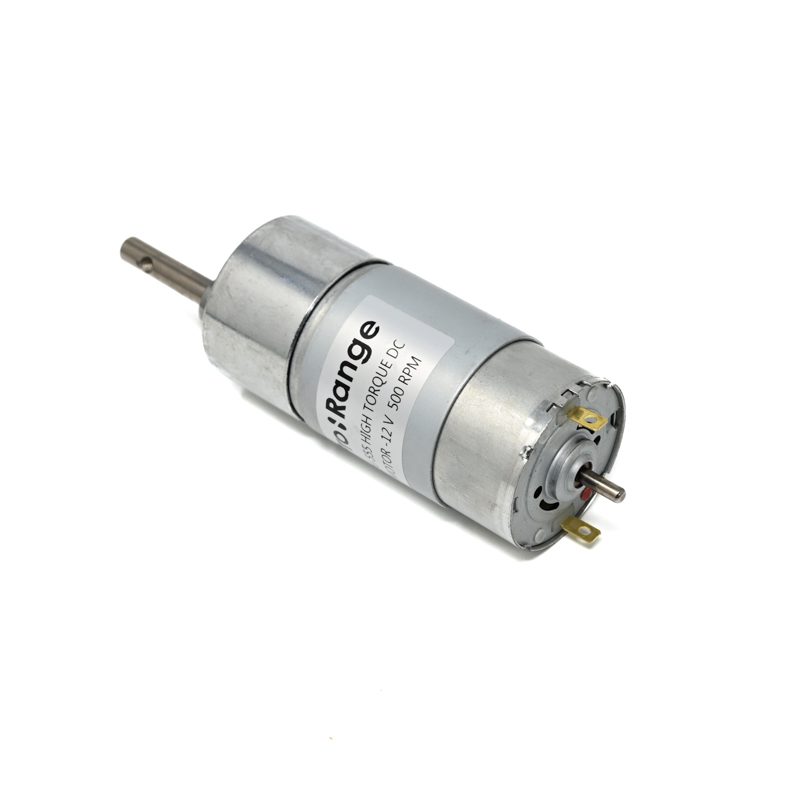

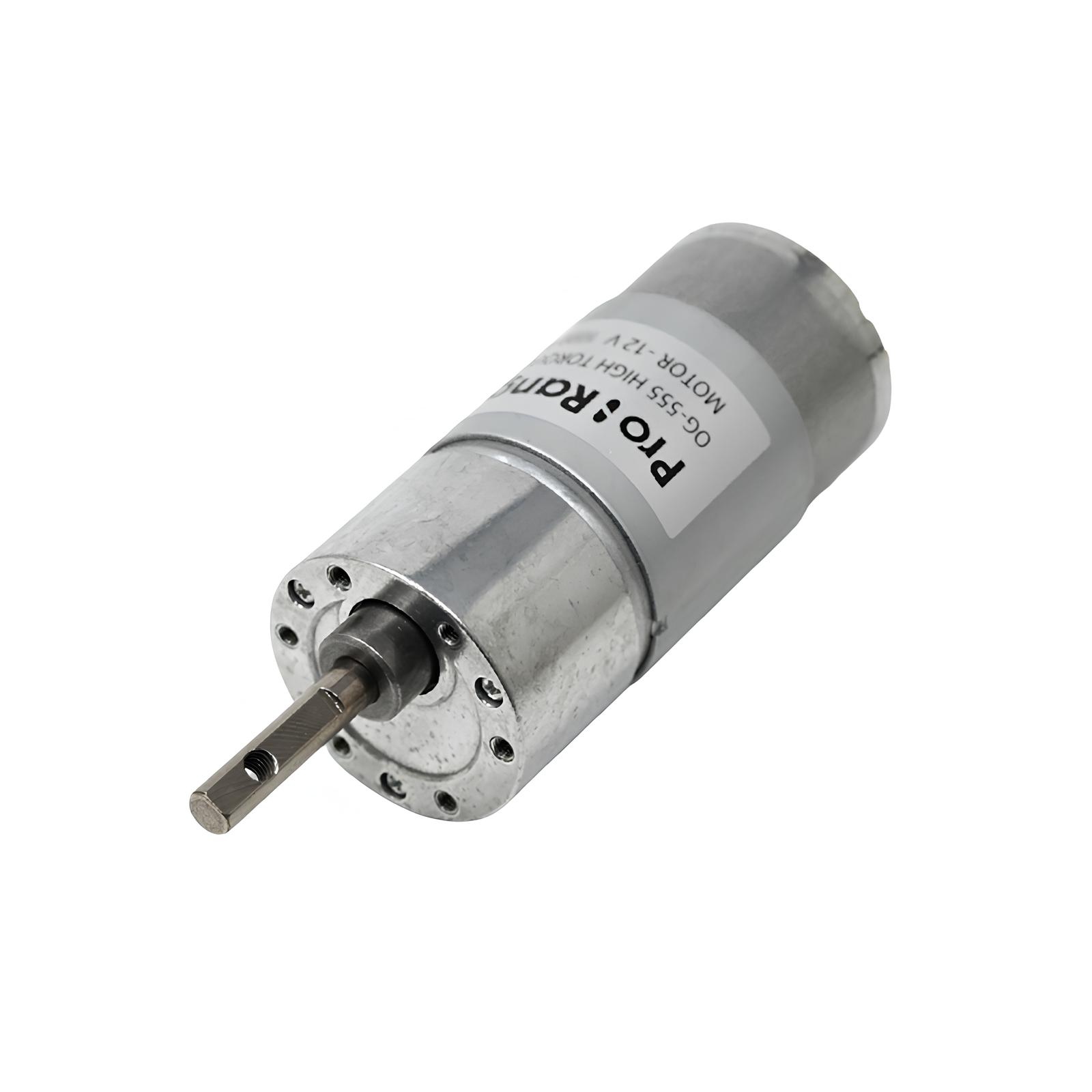

Orange OG555 High Torque DC Motor 12V 500 RPM 45.8N-cm Encoder Compatible


In stock

SKU: 764981
  1. Voltage (DC):12V
  2. Rated RPM (at 12V):500
  3. Gear Reduction: 20K
  4. Rated Torque (N-cm): 45.8
  5. Full Load Current (A):4.05
  6. The Shaft is D type


(Including GST)

In stock

Select below products to add together

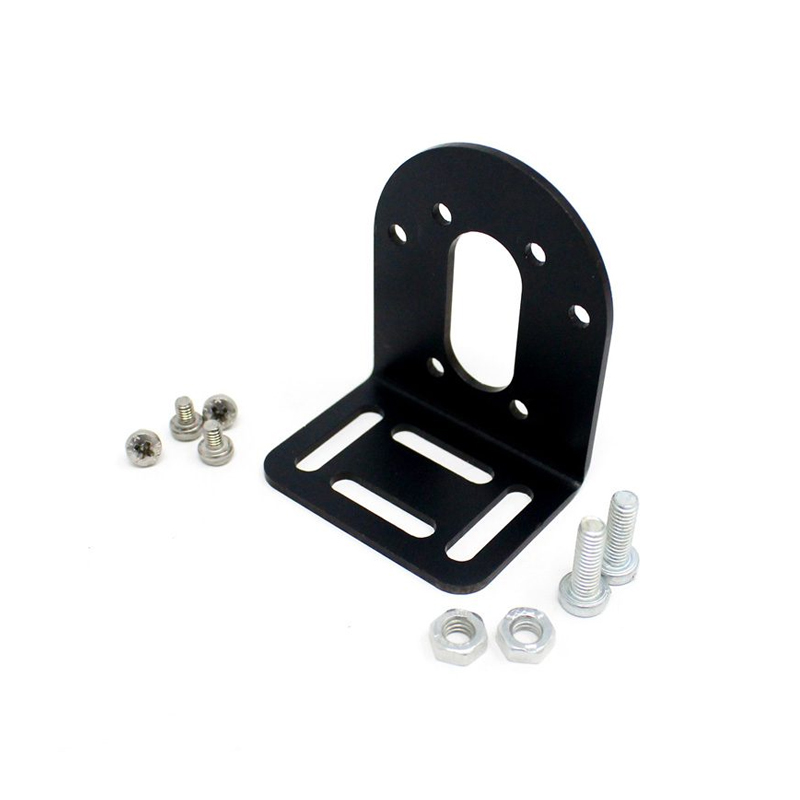

EasyMech Bracket For SPG30E & Orange Johnson DC Geared Motor ₹ 299

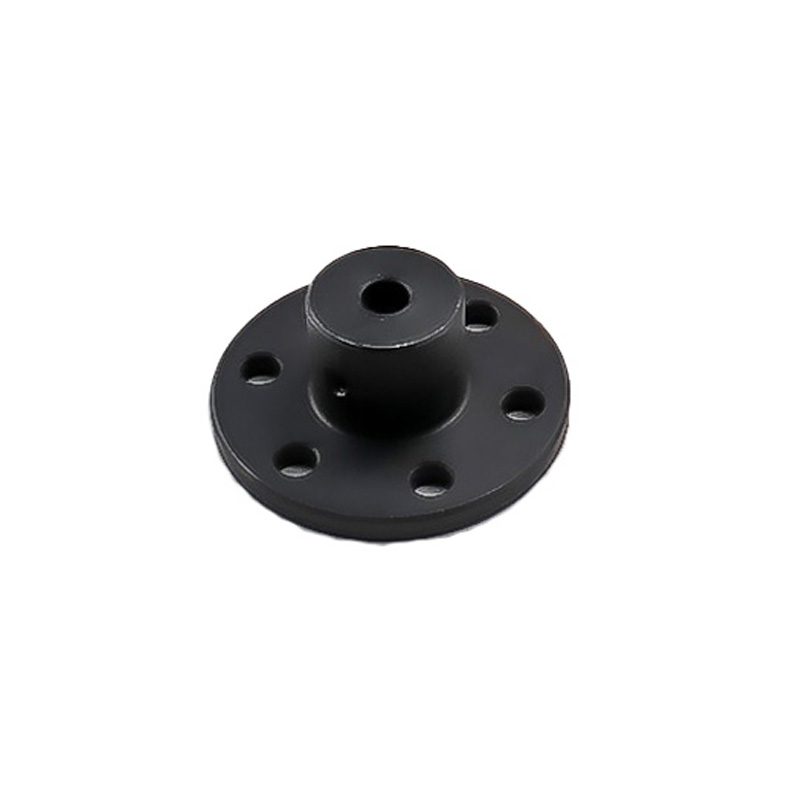

EasyMech ID-6mm Motor Coupling Hub (Small) ₹ 409
OE-37 Hall Effect Two Channel Magnetic Encoder ₹ 349

New Price: ₹ 699

Purchase this product now and earn 7 Robu Points!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t Find what you are looking for?

Brand: Orange
Category: Orange 12V OG 555 DC Gear Motor
Tags: DC Motor

This Orange OG555 12V 500RPM DC motor is mostly useful for DIY Projects. The motor has a rated torque of 45.8N-cm with a Gear Reduction of 20K. The main feature of this motor is it has a 27mm long shaft with a diameter of 6mm. Normally the motor available in the market is having a shaft length of 20 ~ 22 mm long; but we have customized the shaft of this motor to meet customers’ requirements. So it’s too easy to mount a wheel or any type of coupling on the shaft.

Additionally, we made this motor encoder enabled with a rear-shaft to mount the encoder for your convenience. You can mount the encoder easily if it is needed in your application. The compatible OE-37 hall effect Encoder can be mounted to the rear shaft of the motor which acts as a feedback encoder to provide the real-time feedback of speed and rotating position of the Motor.

The applications of this Orange OG555 12V 500RPM  DC motor are Central air conditioning valve, Amusement equipment, Coin refund devices, Grill, Oven; Peristaltic pump, ATM bank automatic system, Medical equipment, Office equipment, Household appliance, Automatic actuator, and many more.


  1. Lightweight
  2. compact-sized
  3. high performance
  4. The Shaft is D type
  5. wheel/ coupling arrangement is simple.
  6. The motor is useful for hobbyists and for DIY projects.

Package Includes :

1 x Orange OG555 High Torque DC Motor 12V 500 RPM 45.8N-cm Encoder Compatible

SKU: 764981 Category: Tag:
Model No.


Input Voltage Range (DC)

6V to 15V

Rated RPM (at 12V)


Gear Reduction


Rated Torque (N-cm)


No- Load Current (A)


Full Load Current (A)


Shaft Diameter (mm)


Motor Body Diameter (mm)


Motor Body Lenth (mm)


Motor Shaft Length (mm)


Motor Shaft Type

D cut without hole

Back shaft for Encoder Available


Compatible Encoder Model


Operating Temperature

-30℃ to 60℃

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.


Motor Test Report

Questions and answers of the customers

  1. 0 votes
    Q what is the stall torque of this motor answer now
    Asked by jatinaditani on July 22, 2023 7:56 pm

    We don't have that info but the Rated Torque is... Read more

Only registered users are eligible to enter questions
Country Of Origin: China
