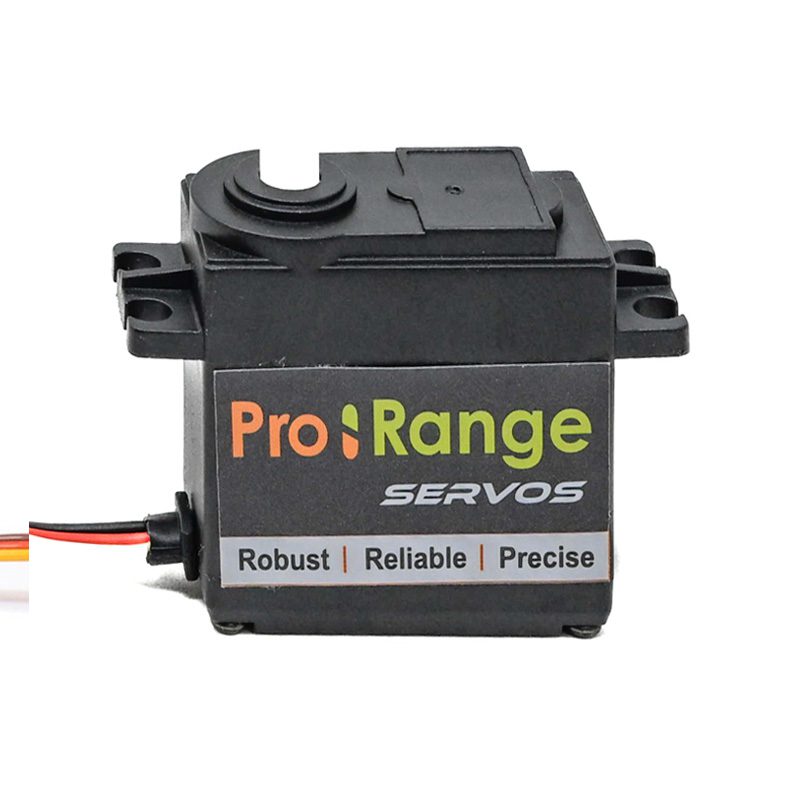

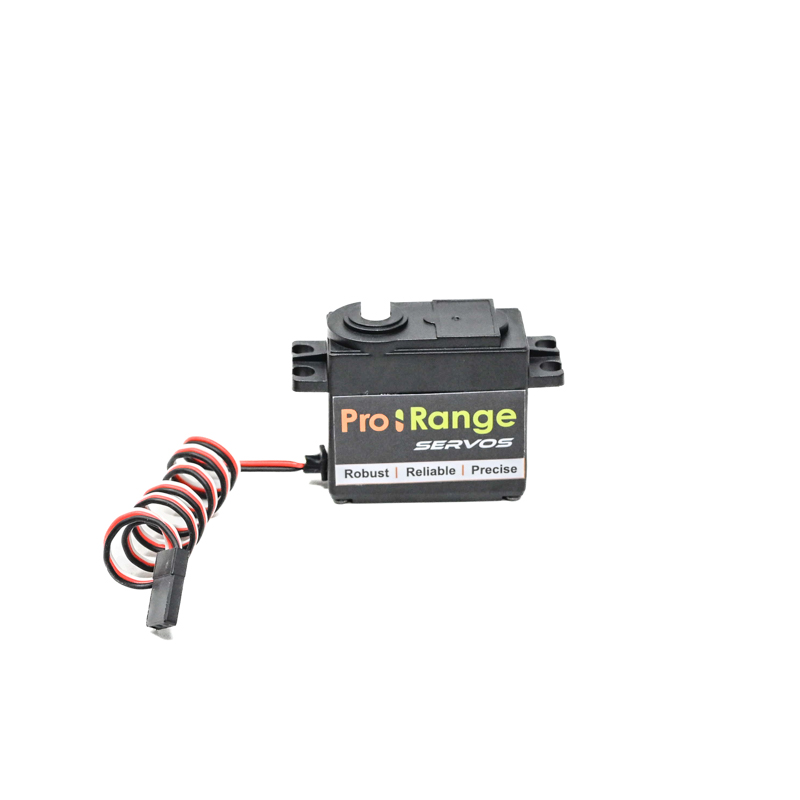

Orange OS5103B 6V 3.2kg.cm Metal Brush Analog Servo Motor

Availability:

In stock


SKU: 871810
  1. Input Voltage Range (VDC):  4.8V-6V
  2. Rated Torque: 1Kg.cm @ 6V
  3. Gears Type: Plastic Gear(Nylon & POM )
  4. Connector: JR
  5. Size (L x W x H) mm: 41 x 20 x 38

 849.00  929.00

(inc GST)

₹ 719.49 (+18% GST extra)

  You save(8.6%): ₹ 80.00

Regular Price :  929.00

You save(8.6%): ₹ 80

In stock

Prices shown above are Inclusive of GST

Purchase this product now and earn 9 Robu Points!
Brand: Orange
Category: Orange RC Servo Motors
Tags: OS5103B

We are importing and selling a diverse range of servo motors from various manufacturers for a long time and with tolerable feedback on it, we have come to know the issues faced by our customers regarding quality and efficiency. Owing to the responses of them we compelled to find the servo motor having good quality not only from outside but also from inner gear construction. So here we are launching our Own Orange Premium Quality servo motor series with Metal gears construction where we can assure you that you will receive the best quality of motor that you are paying for with a 1-month of robu.in warranty.

We got constructed and tested this Orange Premium Servo with Steel gear material inside gears and a tight sturdy plastic case which makes them water and dust resistant which is a very must feature required in Boats, and RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The Heavy Duty Orange OS5103B 6V 3.2kg.cm 180° Metal Gear Serial Control BUS Servo with any servo code, library, and hardware. It rotates approximately 120-degree, 60 degrees in each direction. This motor package comes with a selection of hardware and arms.

Wire Description:

  • RED – Positive
  • Brown – Negative
  • Orange – Signal
Explore the range of Orange Premium Servo Motors in the category. Click Here

Features:

  1. The connection cable is thicker
  2. Equips high-quality motor
  3. High resolution
  4. Fast control response
  5. Constant torque throughout the servo travel range
  6.  Excellent holding power
Please go through Datasheet in attachments for more technical details and Dimensional Drawing

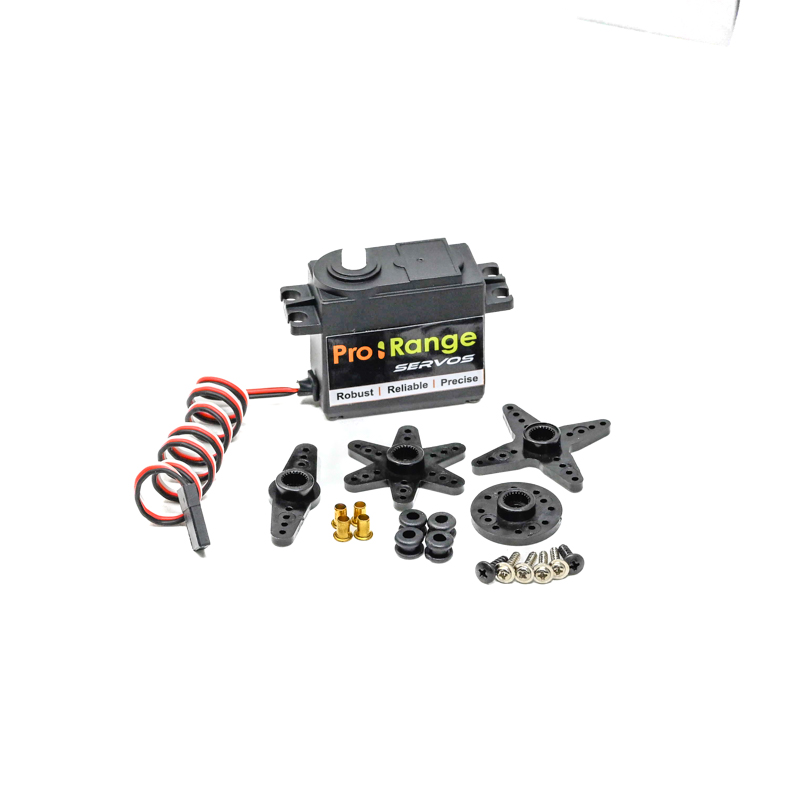

Package Includes:

1 x Orange OS5103B 6V 3.2kg.cm 180° Analog Metal brush servo motor

1 x Set of Horns

1 x Set of Screws

Model

OS5103B

Operating Voltage (VDC)

4.8 ~ 6

No load Speed (RPM)

0.16 sec/60°@6V
0.18sec/60°@4.8V

Stall Torque(Kg-Cm)

[email protected]
[email protected]

Operating Temperature Range (°C)

-15℃~70℃

Dead Band Width ( μs)

5

Gear Material

Plastic Gear(Nylon & POM )

Rotational Degree

180º

Cable Length (cm)

30

Command Signal

PWM

Connector

JR

Length (mm)

41

Width (mm)

20

Height (mm)

38

Weight (gm)

40

Shipment Weight

0.045 kg

Shipment Dimensions

5 × 4 × 2 cm

1 Month Warranty

This item is covered with a standard warranty of 1 month from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
