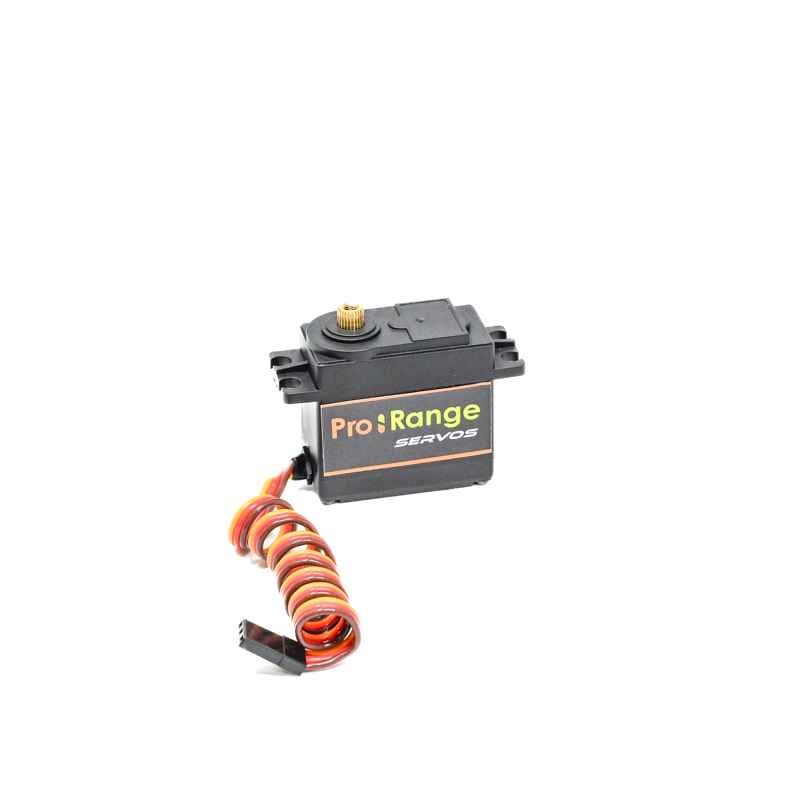

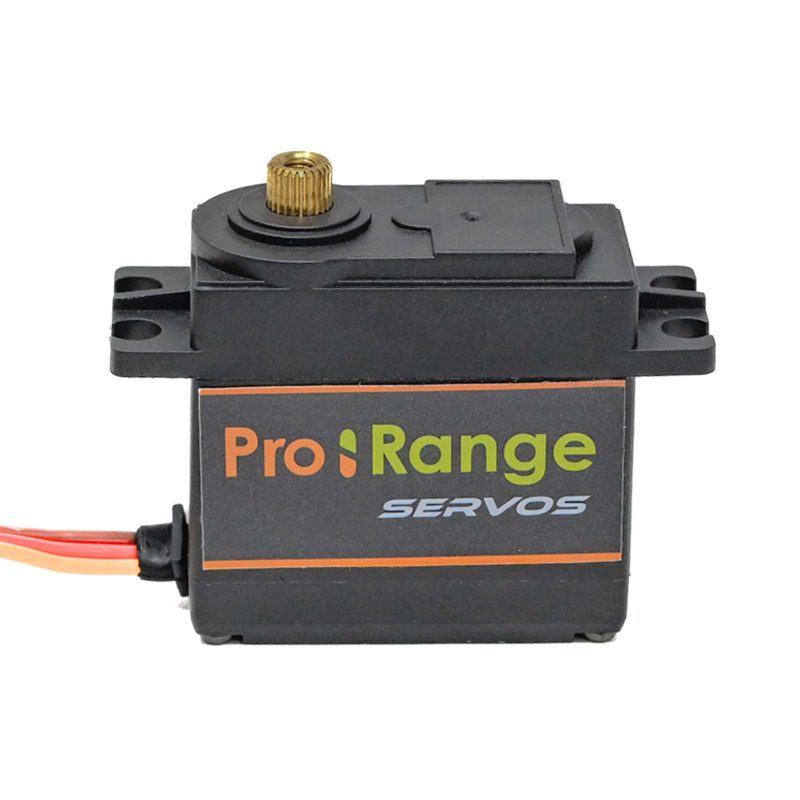

Orange OT5116M 6V 15kg.cm Digital Servo Motor

Availability:

In stock


SKU: 1616550
  1. Input Voltage Range (VDC): 4 to 8.4V
  2. Stall Torque(Kg-Cm) (peak): 15.5kg.cm@6V
  3. Gears Type: Metal
  4. Connector: JR
  5. Size (L x W x H) mm: 54 x 20.1 x 38.9

 1,050.00

(Including GST)

In stock

Purchase this product now and earn 11 Robu Points!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: Orange
Category: Orange RC Servo Motors
Tags: orange servo motor

This is Orange OT5116M 6V 15kg.cm Digital Servo Motor. We are importing and selling a diverse range of servo motors from various manufacturers for a long time and with tolerable feedback on it, we have come to know the issues faced by our customers regarding quality and efficiency. Owing to the responses of them we compelled to find the servo motor having good quality not only from outside but also from inner gear construction. So here we are launching our Own Orange Premium Quality servo motor series with Metal gears construction where we can assure you that you will receive the best quality of motor that you are paying for!

We got constructed and tested this Orange Premium Servo with Steel gear material inside gears and a tight sturdy plastic case which makes them water and dust resistant which is a very must feature required in Boats, and RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The Orange OT5116M 6V 15kg.cm Digital Servo Motor can run with servo code, library, and hardware. It rotates approximately 280° (at 500→2500μsec) Counterclockwise. This motor package comes with a selection of hardware and arms.

Wire Description:

  • RED – Positive
  • Brown – Negative
  • Orange – Signal
Explore the range of Orange Premium Servo Motors in the category. Click Here

Features:

  1. Copper Gears Construction
  2. The connection cable is thicker
  3. Equips high-quality motor
  4. High resolution
  5. Fast control response
  6. Constant torque throughout the servo travel range
  7. Excellent holding power

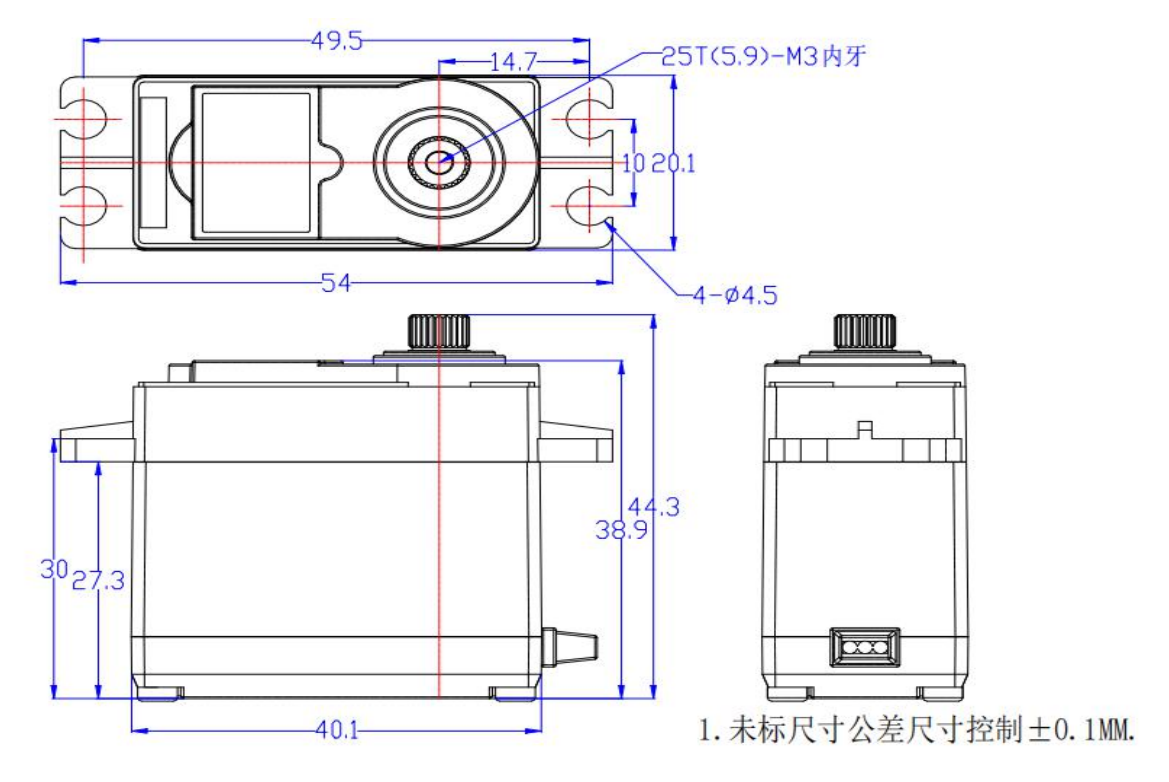

Please go through datasheet in attachments for dimensional drawing.

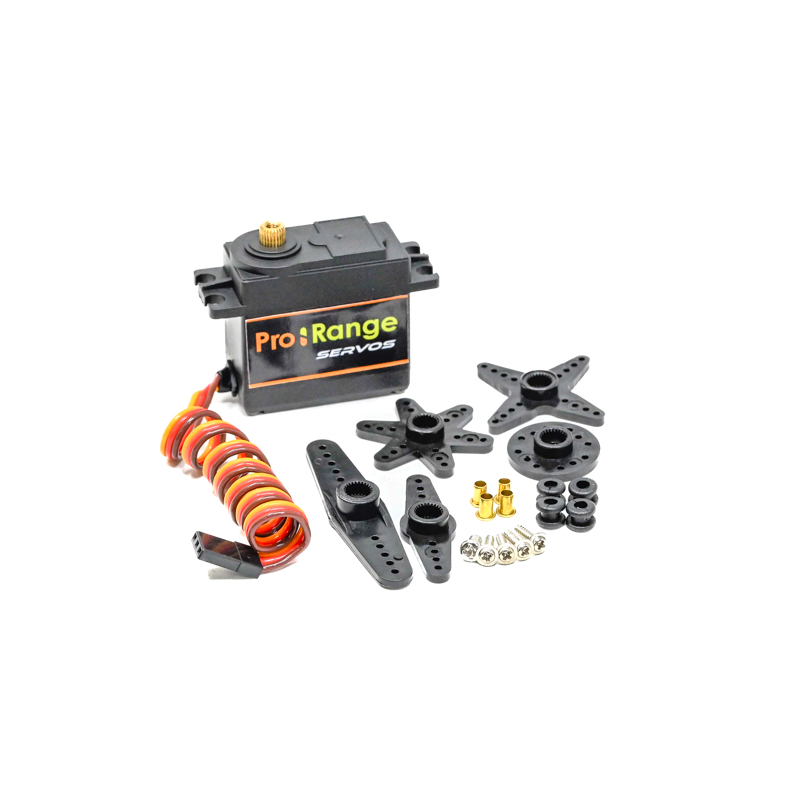

Package Includes:

1 x Orange OT5116M 6V 15kg.cm Digital Servo Motor

1 x Set of Horns

1 x Set of Screws

1 x Other fitting Accessories set

SKU: 1616550 Category: Tag:
Model

OT5116M

Operating Voltage (VDC):

4-8.4V

No load Speed (RPM)

0.2sec/60°@6V

Stall Torque(Kg-Cm)

15.5kg.cm@6V

Rated Torque (Kg-Cm)

5kg.cm@6V

Stall Current (A)

1.7A@6V

Operating Temperature (°C)

-15℃~70℃

Gear Material

Metal

Cable Length (cm)

30

Connector

JR

Length (mm):

54

Width (mm):

20

Height (mm):

38.9

Weight (g):

61

Rotation Direction

280°, CCW

Shipping Weight 0.07 kg
Shipping Dimensions 6 × 6 × 4 cm
15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Schematic

Questions and answers of the customers

    I have 2 questions - 1) I cannot see datasheet in... Read more
  1. 0 votes
    Q I have 2 questions - 1) I cannot see datasheet in the webpage. is there any datasheet? 2) It is...... Read more answer now
    Asked by sachinkandpal5 on April 6, 2024 9:51 pm
    A
    1. Datasheet for this product is not availab... Read more
Only registered users are eligible to enter questions
Country Of Origin: China
