Orange OT5316M 7.4V Metal Gear Digital Servo Motor


In stock

SKU: 867249
  1. Input Voltage Range (VDC):  6V-7.4V
  2. Rated Torque: [email protected]
  3. Gears Type: Metal
  4. Connector: JR
  5. Size (L x W x H) mm: 40.8 x 20 x 39.8


(Including GST)

In stock

Select below products to add together

Cellmeter 8 Multi-Functional Digital Power Servo Tester ₹ 789

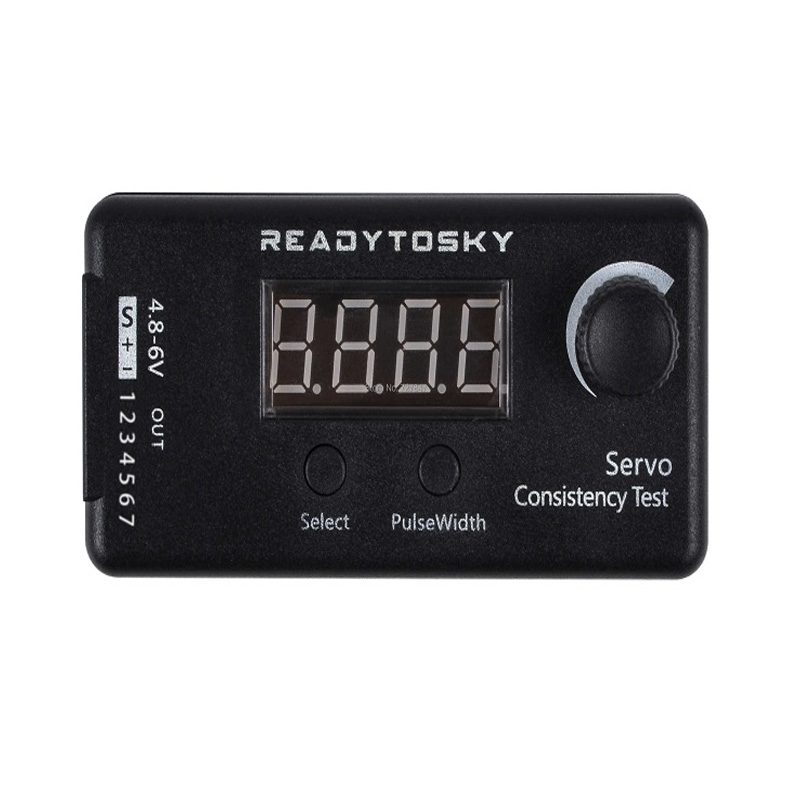

Digital Servo Tester / ESC Consistency Tester ₹ 369
Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control ₹ 399

New Price: ₹ 1349

Purchase this product now and earn 14 Robu Points!

Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
1 Month Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: Orange
Category: Orange RC Servo Motors
Tags: OT5316M

We are importing and selling a diverse range of servo motors from various manufacturers for a long time and with tolerable feedback on it, we have come to know the issues faced by our customers regarding quality and efficiency. Owing to the responses of them we compelled to find the servo motor having good quality not only from outside but also from inner gear construction. So here we are launching our Own Orange Premium Quality servo motor series with Metal gears construction where we can assure you that you will receive the best quality of motor that you are paying for with a 1-month of robu warranty.

We got constructed and tested this Orange Premium Servo with Steel gear material inside gears and a tight sturdy plastic case which makes them water and dust resistant which is a very must feature required in Boats, and RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The Heavy Duty Orange OT5316M 7.4V Metal Gear Digital Servo Motor with any servo code, library, and hardware. It rotates approximately 120-degree, 60 degrees in each direction. This motor package comes with a selection of hardware and arms.

Wire Description:

  • RED – Positive
  • Brown – Negative
  • Orange – Signal
Explore the range of Orange Premium Servo Motors in the category. Click Here


  1. Copper Gears Construction
  2. The connection cable is thicker
  3. Equips high-quality motor
  4. High resolution
  5. Fast control response
  6. Constant torque throughout the servo travel range
  7.  Excellent holding power
Please go through Datasheet in attachments for more technical details and Dimensional Drawing

Package Includes:

1 x Orange OT5316M 7.4V Metal Gear Digital Servo Motor

1 x Set of Horns

1 x Set of Screws

1 x Other fitting Accessories set

SKU: 867249 Category: Tag:


Operating Voltage (VDC)

6 ~ 7.4

No load Speed (RPM)

0.14sec/60º7.4V, 0.16 sec/60°@6V

Stall Torque(Kg-Cm), [email protected]

Operating Temperature (°C)


Dead Band Width ( μs)


Gear Material


Cable Length (cm)


Command Signal




Length (mm):


Width (mm):


Height (mm):


Weight (g):


Shipping Weight 0.06 kg
Shipping Dimensions 4 × 2 × 4 cm
1 Month Warranty

This item is covered with a standard warranty of 1 month from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Questions and answers of the customers

  1. 0 votes
    Q What is current rating required for the power to supply answer now
    Asked by Abhimanyu on April 15, 2023 4:21 pm

    Please go through Datasheet for more technical ... Read more

  2. 0 votes
    Q Is it 180 or. 360?? answer now
    Asked by chuninnu004 on April 12, 2023 10:17 am

    It rotates around 120-degree.
