Orange OT6560 7.4V 60kg.cm 120° Metal Gear Serial Control BUS Servo

Availability:

In stock


SKU: 867251
  1. Input Voltage Range (VDC):  4V-8.4V
  2. Rated Torque: 60Kg.cm @ 7.4V
  3. Gears Type: Steel Metal
  4. Connector: JR
  5. Size (L x W x H) mm: 66 x 30 x 60

 3,779.00  4,200.00

(inc GST)

₹ 3202.54 (+18% GST extra)

  You save(10%): ₹ 421.00

In stock

Select below products to add together

RDS3115 MG Digial Metal Gear Dual Shaft 15 kg 180º Servo Motor with Holders ₹ 2400

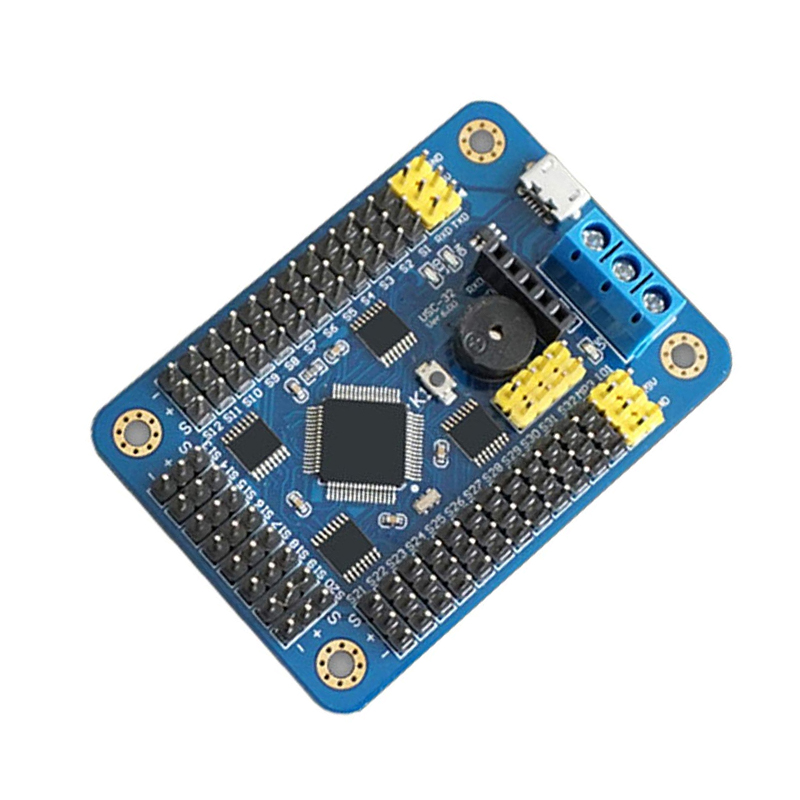

USB 32Ch Servo Motor Controller Board, support PS2 WIFI with USB Cable ₹ 3499

New Price: ₹ 3779


Purchase this product now and earn 38 Robu Points!
Brand: Orange
Category: Orange RC Servo Motors
Tags: Servo Robot, Digital Servo, orange servo motor

We are importing and selling a diverse range of servo motors from various manufacturers for a long time and with tolerable feedback on it, we have come to know the issues faced by our customers regarding quality and efficiency. Owing to the responses of them we compelled to find the servo motor having good quality not only from outside but also from inner gear construction. So here we are launching our Own Orange Premium Quality servo motor series with Metal gears construction where we can assure you that you will receive the best quality of motor what you are paying for with a 1-month of robu warranty.

We got constructed and tested this Orange Premium Servo with Steel gear material inside gears and a tight sturdy plastic case which makes them water and dust resistant which is a very must feature required in Boats, and RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The Heavy Duty Orange OT6560 7.4V 60kg.cm 180° Metal Gear Serial Control BUS Servo with any servo code, library, and hardware. It rotates approximately 120-degree, 60 degrees in each direction. This motor package comes with a selection of hardware and arms.

Wire Description:

  • RED – Positive
  • Brown – Negative
  • Orange – Signal

Note:

Please go through Datasheet in attachments for more technical details and Dimensional Drawing

Explore the range of Orange Premium Servo Motors in the category. Click Here

Features:

  1. Copper Gears Construction
  2. The connection cable is thicker
  3. Equips high-quality motor
  4. High resolution
  5. Fast control response
  6. Constant torque throughout the servo travel range
  7.  Excellent holding power

Package Includes:

1 x Orange OT6560 7.4V 60kg.cm 120° Metal Gear Serial Control BUS Servo

1 x Set of Horns

    • One Arm (D: 53mm)
    • Four Arm (D:58.50mm)
    • Round Horn (D: 39)

1 x Set of Screws

1 x Other fitting Accessories set

Model

OT6560

Operating Voltage (VDC)

4.0 ~ 8.4

No load Speed (RPM)

0.13 sec/60° @7.4V
0.15sec/60° @6.0V

Stall Torque(Kg-Cm)

[email protected]
62 @7.4V

Operating Temperature Range (°C)

-20 to 60

Maximum Operating Current (A)

3.8

Gear Material

Steel

Rotational Degree

180º

Shaft Type

7.5mm (15T-M3)

Cable Length (cm)

30

Connector

JR

Length (mm)

66

Width (mm)

30

Height (mm)

60

Weight (gm)

190

Shipment Weight

0.05 kg

Shipment Dimensions

12 × 8 × 5 cm

1 Month Warranty

This item is covered with a standard warranty of 1 month from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
