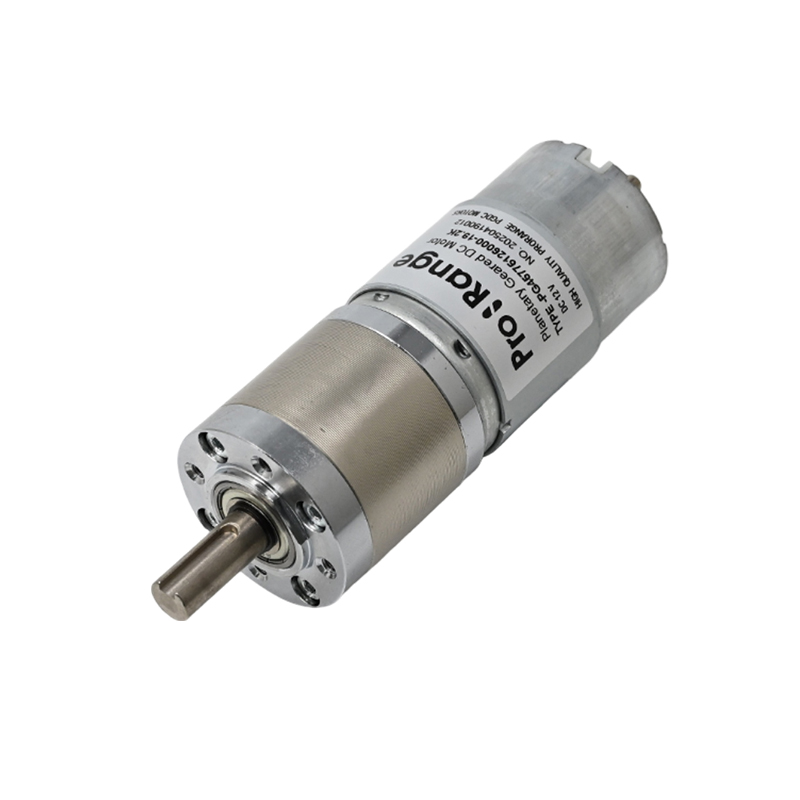

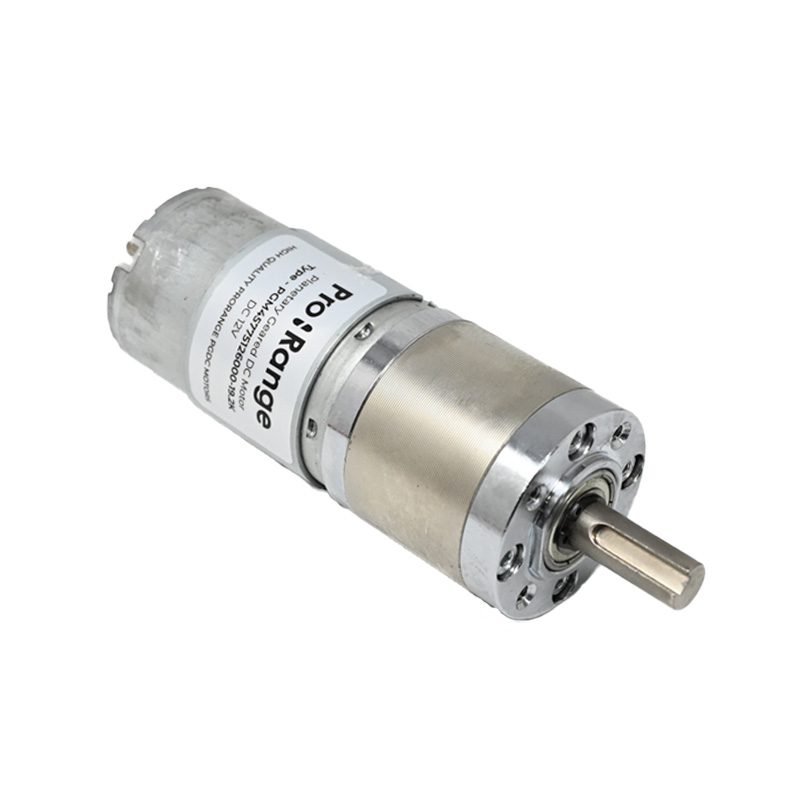

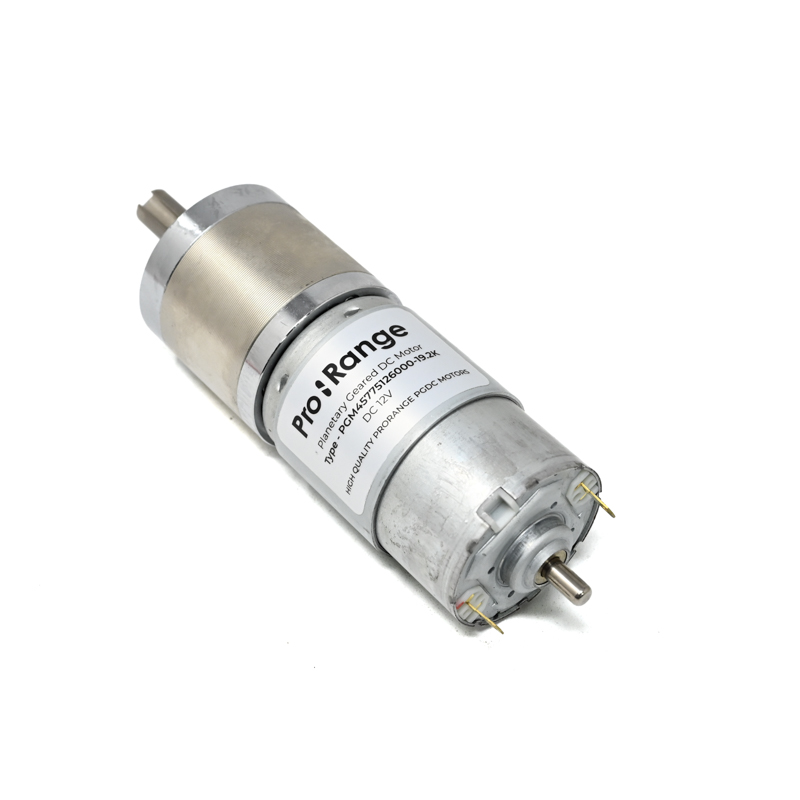

Orange Planetary Gear DC Motor 12V 256RPM 95.5 N-cm PGM45775-19.2K

(1 customer review)
Availability:

In stock


SKU: 278537
  1. Model: PGM45775-19.2K
  2. Operating Voltage: 12V DC
  3. Rated Torque: 95.5 N-cm
  4. Rated Speed: 256 RPM
  5. Rated Current: 4.01 A
  6. Rated Power: 48.88 W
  7. Gear Ratio: 19.2 : 1

 2,339.00  2,599.00

(inc GST)

₹ 1982.2 (+18% GST extra)

  You save(10%): ₹ 260.00

Regular Price :  2,599.00

You save(10%): ₹ 260

In stock

Select below products to add together

EasyMech 6902 ZZ Bearing Housing & MS Shaft for PGM45775 Series Planetary DC Gear Motor ₹ 1449
EasyMech Universal Bracket (BEND) For IG42/IG45, Tauren and PGM45775 Planetary DC Geared Motor ₹ 290
OE-775 Hall Effect Two Channel Magnetic Encoder ₹ 399
Replacement cable for Orange OE-775 Hall Effect Two Channel Magnetic Encoder ₹ 59

New Price: ₹ 2339


Prices shown above are Inclusive of GST

Purchase this product now and earn 24 Robu Points!
Brand: Orange
Category: Orange Planetary Gears Motor
Tags: 12V planetary DC Motor

Orange Planetary Gear DC Motor has the highest continuous and peak torque capability of any gearbox type. They also feature a very compact, low-weight design in their Class.

As these Epicyclic Gear Train motors are very popular amongst our Robotics designer. So we must ensure them for the quality and performance of these motors. For that purpose when we receive these Planetary DC Geared Motor to our warehouse at Robu.in, we get them out and start testing each motor in our lab for the extreme pushable limits they can withstand.

We made these motor available without encoders for your convenience, but you can mount the encoder easily if it is needed in your application. The compatible OE-775 hall effect Encoder can be mounted to the rear shaft of the motor which acts as a feedback encoder to provide the real-time feedback of speed and rotating position of Motor.

This is a 12V DC planetary motor which has a gearbox of 45 mm diameter. The planetary type gearbox of this motor has a 19.2 : 1 reduction ratio which produces 256 RPM with the torque value of around 95.5 N-cm.

We have 12V and 24V DC Planetary geared motors with RPM range from 10 to 1700 with the torque capacity of more than 200 N-cm, do not forget to check them out

Planetary DC Geared Motor.

Compatible Encoder: OE-775 Hall Effect Two Channel Magnetic Encoder

Mounting Encoder on Motor

Compatible Motor Bracket:

  1. EasyMech Universal Bracket For  Planetary DC Geared Motor (Bend)
  2. EasyMech Universal Bracket For  Planetary DC Geared Motor (Straight)

Features :

  1. Brushed permanent magnet DC motor
  2. Variable speed and reversible
  3. Planetary Gear Box
  4. Standard brush life of 2000+ hours (varies by application)

Package Includes :

1 x Orange Planetary Gear DC Motor 12V 256RPM 95.5 N-cm PGM45775-19.2K

Model

PGM45775-19.2K

Motor Type

DC Carbon Brush Motor

Gear Ratio

19.2 : 1

Operating Voltage (VDC)

12

Rated Current(A)

4.01

Rated Power (W)

48.88

Rated Base Motor RPM

6000

Rated Speed (RPM)

256

Rated Torque (N-cm)

95.5

Operating Temperature (°C)

-40 to 100

Opt. Relative Humidity(RH)

20% ~ 85%

Gear Material

Powder Metallurgy, Steel, POM

Housing Material

Metal

Motor Body Size (Diameter) (mm)

45

Motor Length (mm)

102

Shaft Diameter (mm)

10

Shaft Length (mm)

25

Shaft Type

Keyed Shaft

Motor Weight(gm)

790

Shipment Weight

0.9 kg

Shipment Dimensions

14 × 5 × 5 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 1 review

1.0 overall
0
0
0
0
1

Add a review

  1. PRAMOD MR (verified owner)

    quality was very good

    PRAMOD MR

Test Report Datasheet

Mechanical Drawing
