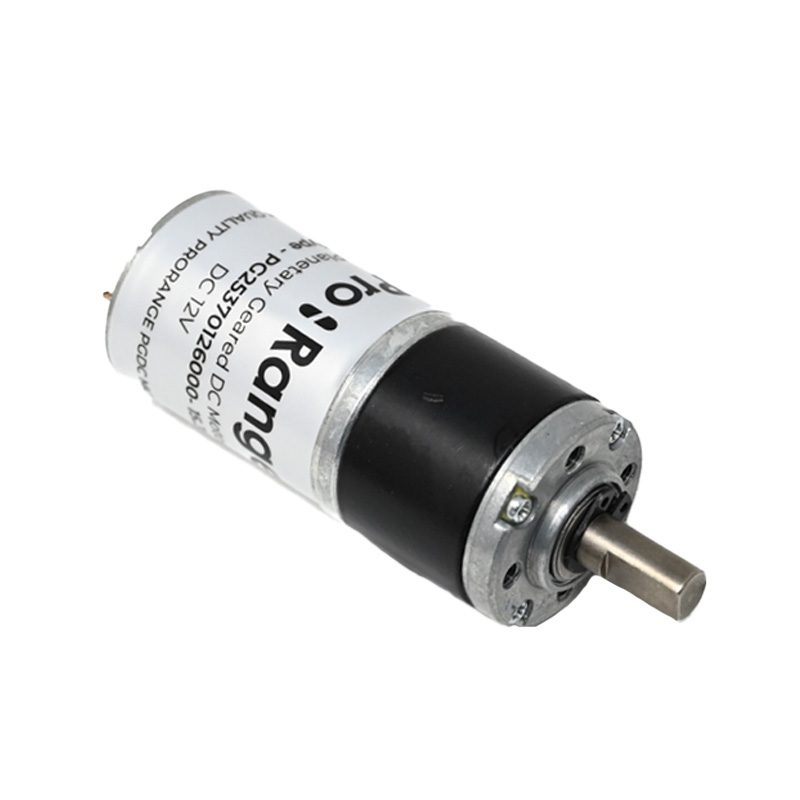

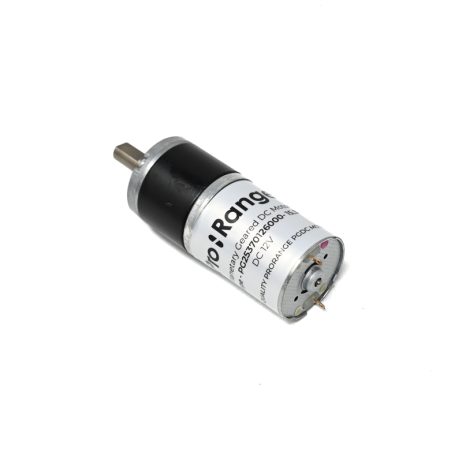

Presenting you an Orange Planetary Gear DC Motor 12V PG25370 15.3K – 320 RPM, a product from Orange brand, a DC motor that incorporates a planetary gear system to provide efficient power transmission. This product is combination of DC Motor & Planetary Gear System. The motor’s name comes from the distinctive orange color of the motor housing. A planetary gear motor mimics a planetary rotation system, the input shaft drives the central gear, also known as the sun gear, which then turns the surrounding gears, also known as planet gears.
When you couple a dc motor with a planetary gearbox, a speed reduction occurs resulting in increased rotational torque at the gearbox output shaft. Planetary gearboxes consist of an internal sun gear that drives multiple outer ring gears known as planet gears, hence its name.
The efficiency loss in a planetary gear train is typically about 3% per stage. This type of efficiency ensures that a high proportion (about 97%) of the energy being input is transmitted through the gearbox, rather than being wasted on mechanical losses inside the gearbox.
The planetary gear is the most powerful gear system than other gear system. It is compact and versatile High efficiency due to low rolling power it is use in more of application in world just like car to get more best driving preformation and many more.
Compared with traditional fixed-shaft gearing systems, a planetary gearbox has compact structure and light weight, while its load-carrying capacity, transmission precision, and efficiency are much higher.
- Transmissions of helicopters
- Wind turbines
- Mining machinery
- Aircraft engines
- Lawn mower
- Tennis ball machine,
- Intelligent access system, etc.
The Orange Planetary Gear DC Motor is available in a range of sizes and power ratings to suit various applications. They are typically powered by direct current (DC) and can be controlled using a variety of electronic speed controllers (ESCs) and motor drivers.
We have 12V and 24V DC Planetary geared motors with RPM ranging from 10 to 1700 with the torque capacity ranging from 20 to 250 N-cm, do not forget to check them out, Planetary DC Geared Motor.
- High efficiency due to low rolling power
- Load distribution to several planetary gears
- Almost unlimited transmission ratio options due to combination of several planet stages
- Multiple planet gears
- Low maintenance
- Gearbox: Planetary gearbox
- Direction: CW/ CCW
- Gear material: steel/powdered/POM
- Housing material: steel
1 x Orange Planetary Gear DC Motor 12V PG25370 15.3K – 320 RPM
