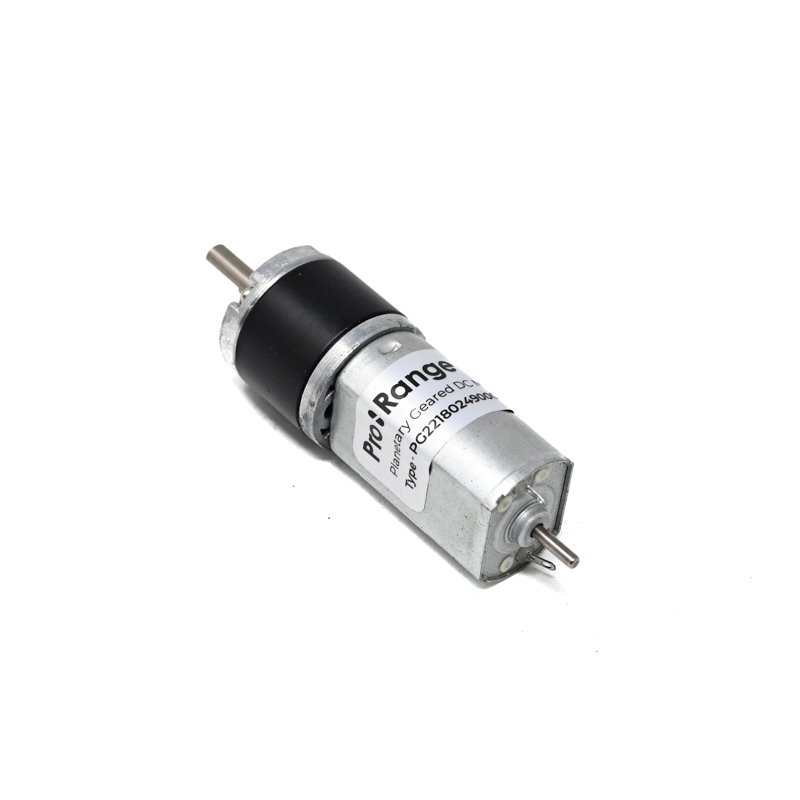

Orange Planetary Gear DC Motor 24V PG22M180 64K – 145 RPM


In stock

SKU: 1503445
  1. Operating Voltage: 24V DC
  2. Rated Current: ≤110 mA
  3. Motor Speed: 145 RPM
  4. Rated Power: 1.74 W


(Including GST)

In stock

Purchase this product now and earn 29 Robu Points!

For refund/return/replacement, get support here
For bulk and B2B enquiries kindly mail us at [email protected]
Brand: Orange
Category: Orange Planetary Gears Motor

Presenting you an Orange Planetary Gear DC Motor 24V PG22M180 64K – 145 RPM, a product from Orange brand, a DC motor that incorporates a planetary gear system to provide efficient power transmission. This product is combination of DC Motor & Planetary Gear System. The motor’s name comes from the distinctive orange color of the motor housing. A planetary gear motor mimics a planetary rotation system, the input shaft drives the central gear, also known as the sun gear, which then turns the surrounding gears, also known as planet gears.

When you couple a dc motor with a planetary gearbox, a speed reduction occurs resulting in increased rotational torque at the gearbox output shaft. Planetary gearboxes consist of an internal sun gear that drives multiple outer ring gears known as planet gears, hence its name.

The efficiency loss in a planetary gear train is typically about 3% per stage. This type of efficiency ensures that a high proportion (about 97%) of the energy being input is transmitted through the gearbox, rather than being wasted on mechanical losses inside the gearbox.

The planetary gear is the most powerful gear system than other gear system. It is compact and versatile High efficiency due to low rolling power it is use in more of application in world just like car to get more best driving preformation and many more.

Compared with traditional fixed-shaft gearing systems, a planetary gearbox has compact structure and light weight, while its load-carrying capacity, transmission precision, and efficiency are much higher.


  1. Transmissions of helicopters
  2. Wind turbines
  3. Mining machinery
  4. Aircraft engines
  5. Automobiles
  6. Robotics
  7. Lawn mower
  8. Treadmills
  9. Tennis ball machine,
  10. Intelligent access system, etc.

The Orange Planetary Gear DC Motor is available in a range of sizes and power ratings to suit various applications. They are typically powered by direct current (DC) and can be controlled using a variety of electronic speed controllers (ESCs) and motor drivers.

We have 12V and 24V DC Planetary geared motors with RPM ranging from 10 to 1700 with the torque capacity ranging from 20 to 250 N-cm, do not forget to check them outPlanetary DC Geared Motor.


  1. High efficiency due to low rolling power
  2. Load distribution to several planetary gears
  3. Almost unlimited transmission ratio options due to combination of several planet stages
  4. Multiple planet gears
  5. Low maintenance
  6. Gearbox: Planetary gearbox
  7. Direction: CW/CCW
  8. Gear material: steel/powdered/POM
  9. Housing material: steel

Package Includes:

1 x Orange Planetary Gear DC Motor 24V PG22M180 64K – 145 RPM

SKU: 1503445 Category:
Operating Voltage

24V DC

Rated Current

≤110 mA; ≤25 mA (No Load)

Motor Speed

7416 (Rated), 9000 (No Load)

Rated Power

1.74 W

Rated Torque


Gear Ratio

64 : 1

Stall Torque


Stall Current

≤550 mA

Motor Type

Planetary Brushed DC Motor

Operating Temperature (°C)

-40 to 100

Total Length (mm)


Total Body Diameter (mm)


Shaft Diameter (mm)


Shaft Length (mm)


Shaft Type

D type



Shipment Weight

0.105 kg

Shipment Dimensions

9 × 3 × 3 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall

Be the first to review “Orange Planetary Gear DC Motor 24V PG22M180 64K – 145 RPM”

There are no reviews yet.

Test Report


Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: China
