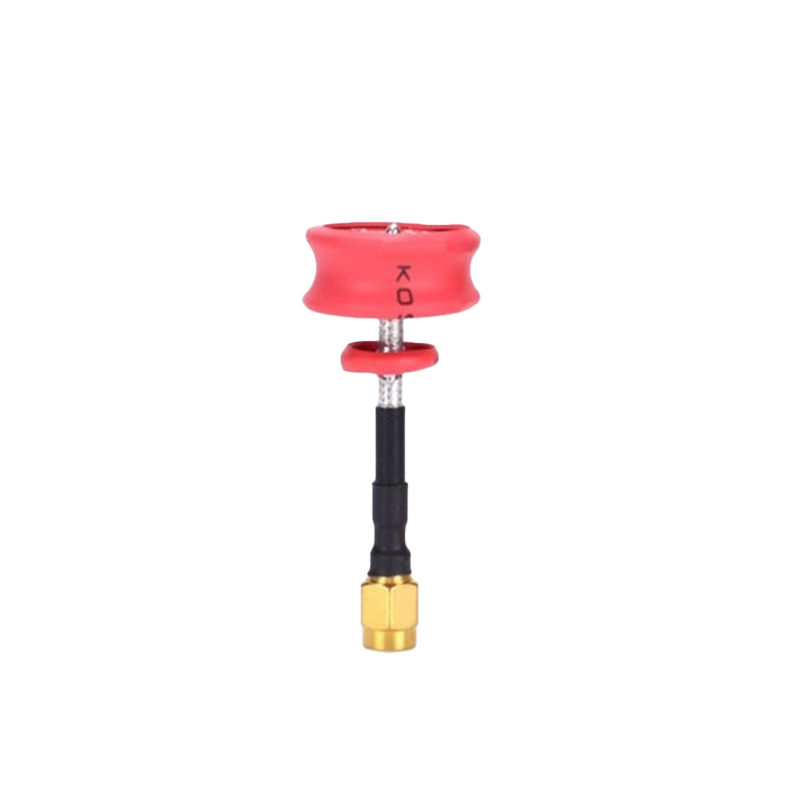

Pagoda 2 Antenna 5.8GHz with cover

Availability:

In stock


SKU: 674160
  1. Connector: RP-SMA Male Plug Connector
  2. Polarization – RHCP
  3. Center frequency: 5.8 GHz
  4. Bandwidth: 500 MHz (5.55 – 6.05 GHz)
  5. Omnidirectional circularly polarized antenna
  6.  Lightweight, Small size

 281.00

(inc GST)

₹ 238.14 (+18% GST extra)

In stock

Prices shown above are Inclusive of GST

Purchase this product now and earn 3 Robu Points!
Brand: ReadytoSky
Category: GPS and Antennas
If you have been looking for a small-size high-performance Antenna then your search ends here. Get the Pagoda 2 Antenna 5.8GHz at the best price at Robu.in.
The Antenna has RP-SMA Male Plug Connector for RC FPV Racing Drone Quadcopter. The Polarization is RHCP(Right-hand Circular Polarization).  The Pagoda 2 Antenna is an Omni-directional circularly polarized 5.8GHz FPV antenna with great performance and small in size. The Pagoda 2 Antenna has an excellent omnidirectional radiation pattern along with a good axial ratio, giving you solid all-around coverage.   The Antenna has a  smoother radiation pattern and a significantly better axial ratio than most other antennas. This antenna’s simplified manufacturing process keeps costs low allowing for a great low price for an antenna with high performance. Silicon cases can be easily installed and removed and it is a lightweight protection antenna.

Features:

  1. Omnidirectional circularly polarized antenna
  2. Connector: RP-SMA Male Plug Connector
  3. Polarization – RHCP
  4. Center frequency: 5.8 GHz
  5. Bandwidth: 500 MHz (5.55 – 6.05 GHz)
  6. Lightweight, Small size
  7.  The new technology metal main rod, almost perfect axial ratio
  8.  Very low standing wave smooth omnidirectional radiation receiving mode
  9.  Silicon cases can be easily installed and removed, lightweight protection antenna

Package Includes:

1 x Pagoda 2 Antenna with cover

Connector

RP-SMA Male Plug Connector

Polarization

RHCP(Right Hand Circular Polarization)

Center frequency(GHz)

5.8 GHz

Bandwidth(MHz)

500 MHz (5.55 – 6.05 GHz)

Radiation efficiency

95%

Matching

S11 < -20 dB, VSWR < 1.22 (at center frequency)

Axial ratio

< 1.3

Height (mm)

54.4

Weight (g)

12

Shipment Weight

0.016 kg

Shipment Dimensions

14.5 × 8.5 × 3.5 cm
