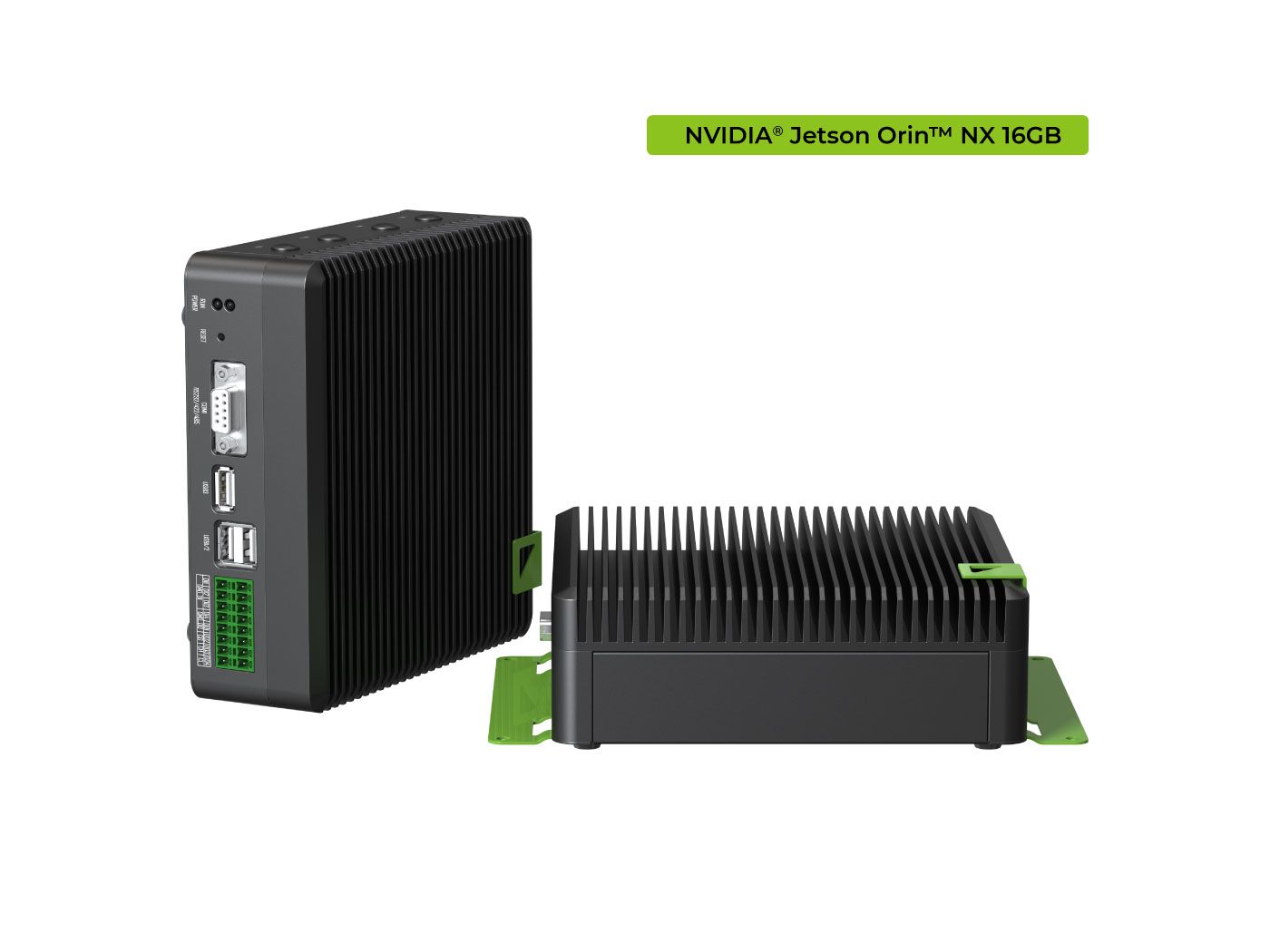

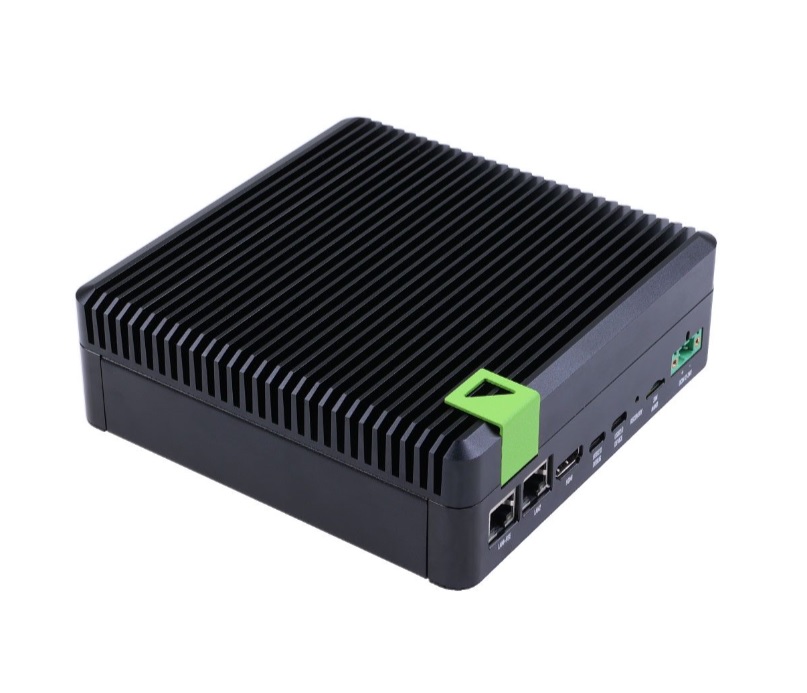

reComputer Industrial J4012- Fanless Edge AI Device with Jetson Orin™ NX 16GB module, Aluminum case with passive cooling

Availability:

Out of stock

Approx Restocking Date: 19th April, 2024
SKU: 1613215
  1. The product name is reComputer Industrial J4012.
  2. Power Supply is DC 12V-24V Terminal block 2 pin
  3. The display is 1*HDMI 2.0 Type A
  4. Dimensions (W x D x H) are 159mm*155mm*57mm

 115,716.00

(Including GST)

Out of stock

Didn’t Find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Category: Seeed Studio SBC
Tags: reComputer Jetson AI

This is a reComputer Industrial J4012- Fanless Edge AI Device with Jetson Orin™ NX 16GB module, Aluminum case with passive cooling

AI Device Computer industrial series offers full systems including NVIDIA Jetson™ Xavier NX/ Orin Nano/Orin NX/ modules, ranging from 20 TOPS to 100 TOPS AI performance. Preinstalled with Jetpack 5.1, reComputer industrial simplifies development, ideal for building applications of video analytics, object detection, natural language processing, medical imaging, and robots, which brings digital transformation across industries of smart cities, security, industrial automation, and smart factories.

reComputer industrial comes with a passive heatsink and a fanless design, making it ideal for use in demanding environments. The passive heatsink allows for efficient cooling without the need for a fan, reducing the risk of component failure due to dust or other contaminants. The fanless design also reduces noise levels and power consumption, making it suitable for use in noise-sensitive environments and minimizing energy costs.

reComputer Industrial has 2 RJ45 GbE ports, one of which is a PoE PSE port for providing power over Ethernet to devices like IP cameras. This eliminates the need for a separate power source and makes it easier to deploy network devices in areas without readily available power outlets. The other GbE port is used to connect to a network switch or router, enabling communication with other devices on the network and access to the Internet.

Seeed Studio 1111Seeed Studio 1234567 1


Applications:

The computer industrial series is a versatile and powerful platform that can be used to develop a wide range of AI-powered applications, enabling digital transformation across industries. Below are some of the applications:

  1. Video Analytics: Object recognition, tracking, and classification. These capabilities can be used in security systems, traffic monitoring, and smart cities.
  2. Natural Language Processing: Speech recognition or language translation.
  3. Medical Imaging: Analyzing medical images to assist with diagnosis or treatment planning.

Features:

  1. Fanless compact PC: Thermal reference design, wider temperature support -20 ~ 60°C with 0.7m/s airflow
  2. Designed for industrial interfaces2* RJ-45 GbE(1 for POE-PSE 802.3 af); 1* RS-232/RS-422/RS-485; 4* DI/DO; 1* CAN; 3* USB3.2; 1* TPM2.0 (Module optional)
  3. Hybrid connectivity: Support 5G/4G/LTE/LoRaWAN® (Module optional) with 1* Nano SIM card slot
  4. Flexible mounting: Desk, DIN rail, wall-mounting, VESA
  5. Certifications: FCC, CE, RoHS, UKCA

Package Includes:

1 x reComputer Industrial

2 x Mounting bracket

1 x DIN rail bracket

4 x Bracket Screw

1 x 16-Pin Terminal Block for DIO

1 x 19V Power adapter (power cord sold separately)

1 x 2-Pin Terminal block power connector

SKU: 1613215 Category: Tag:
Display

1*HDMI 2.0 Type A

Memory

16GB 128-bit LPDDR5
102.4GB/s

Expansion

M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included)

USB

3* USB3.2 Gen1, 1* USB2.0 Type C(Device mode), 1* USB2.0 Type C For Debug UART & RP2040

GPU

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

Power Supply

DC 12V-24V Terminal block 2 pin

CPU

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3

SIM

1* Nano SIM card slot

Camera

2* CSI (2-lane 15pin)

Weight

1.57kg

Power Adapter

19V Power Adapter(without power cord)

Dimensions (W x D x H)

159mm*155mm*57mm

Operating Temperature

-20 ~ 60°C with 0.7m/s

Fan

Fanless, passive heatsink
1*Fan connectors(5V PWM)

TPM

1* TPM 2.0 connector (Module optional)

Wi-Fi

Support SMD Wi-Fi/Bluetooth (Module optional)

AI Performance

100 TOPS

Shipping Weight 2.197 kg
Shipping Dimensions 27 × 19 × 8 cm
