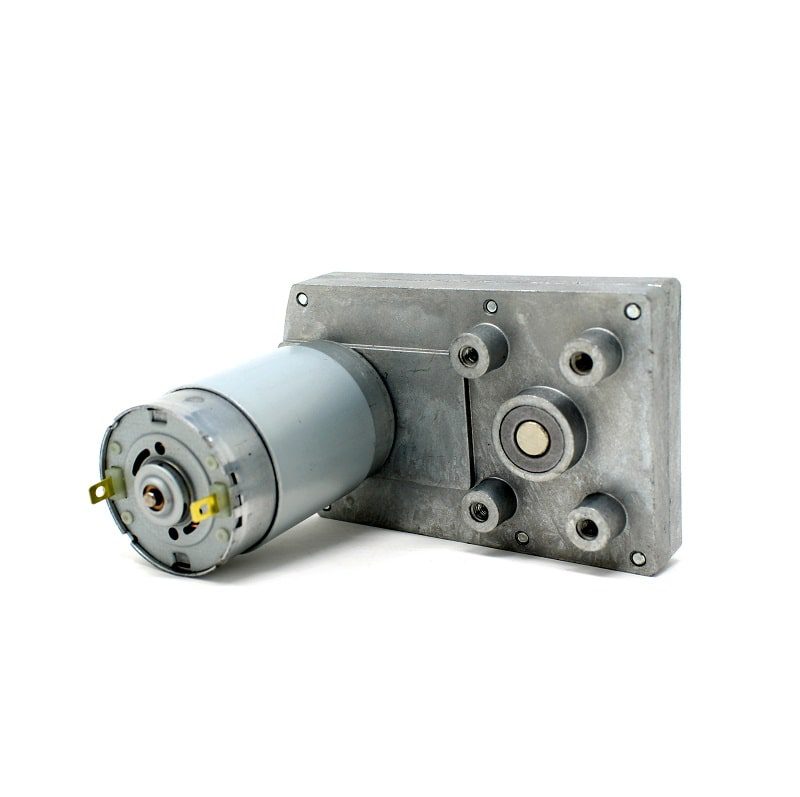

Rectangular GearBox Motor – 10RPM

(1 customer review)
Availability:

Out of stock - Join the waitlist to be emailed when this product becomes available


SKU: 6409
  1. Base Motor RPM: 6000
  2. Rated Voltage: 12 V
  3. Rated Torque: 22 kg-cm
  4. Stall Torque: 90 kg-cm
  5. Gearbox Dimensions: 95 x 60 x 16 mm(LxWxH)
  6. Shaft Length: 25.6 mm

 999.00

(inc GST)

₹ 846.61 (+18% GST extra)

Out of stock - Join the waitlist to be emailed when this product becomes available

Brand: Generic
Category: Orange Rectangular Gearbox Motor
Tags: DC Motor, High Torque Motors, DC Geared Motor, Grade A Motor, 12V Motor, geared

The Rectangular GearBox Motor is mechanically commutated DC electric motor which simply means that these motors equip Gearboxes for providing a great balance between torque-speed as per your requirement.

So, Rectangular GearBox Motor is a simple DC motor of 6000RPM(Base Motor RPM) which features a heavy-duty metal gearbox. This Rectangular gearBox DC motor is a very high torque motor which should be used to make big robots or robotized platform.

The motor will run at 10 RPM when powered with 12V DC supply. It produces the massive torque of 22 kg-cm at 10 RPM.

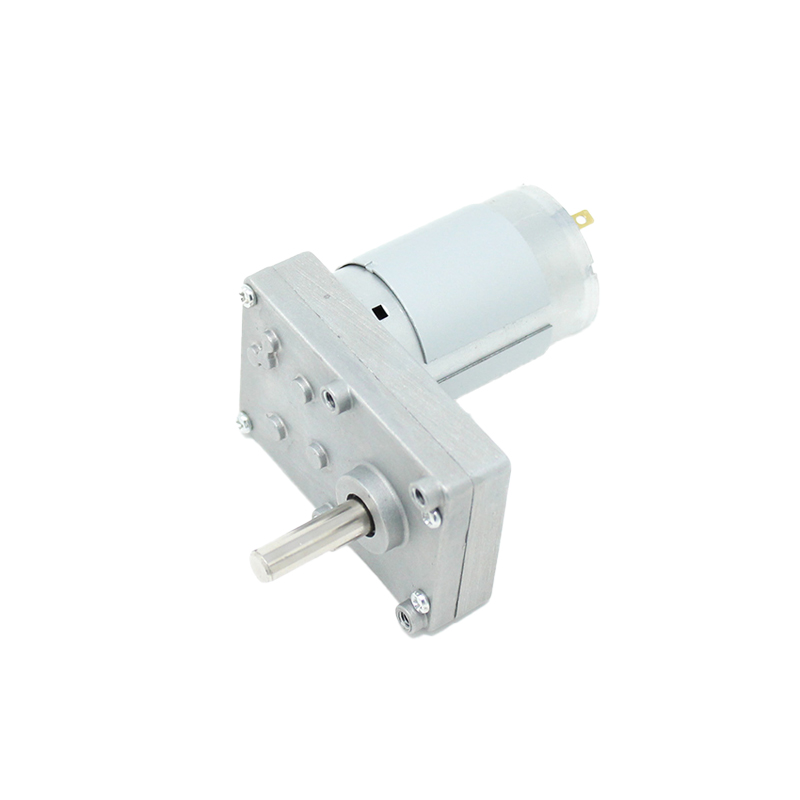

The motor shaft is made up of good quality Engineering steel with nickel plating to handle high Torsion Stress. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The Rectangular GearBox Motor’s shaft is the D-type shaft which ensures strong and safe coupling.

The Rectangular GearBox Motor is very easy to use and available in standard size. Their wide application areas include Robot Development, centralized air conditioning valve, amusement equipment, coin refund devices, grill, oven, peristaltic pumps, atm bank automatic system, medical equipment, office equipment, household appliances, automatic actuator and many other Industrial applications.

The recommended driver module for this motor is  SmartElex 15S or you can choose the most precise motor diver module from the wide range available in our Motor divers category as per your specific requirements.

Note: Depending upon the Manufacturer given dimensions may vary in the range of ±5%

We have following Rectangular gearbox DC motor with different torque values, (click on RPM values for more details about each motor)

10  – 22 kg-cm
30 – 19 kg-cm
60 – 16 kg-cm
100 – 14 kg-cm
150 – 11 kg-cm
240 – 8.5 kg-cm
300 – 7 kg-cm
480 – 3 kg-cm


Features :

  1. High-Torque DC Motors.
  2. It has a very strong and sturdy construction.
  3. The drive shaft is supported with metal bushes.
  4. D-type shaft.

Package Includes:

1 x Rectangular Gearbox Motor – 10RPM

Motor Base RPM

6000

Speed (RPM)

10

Operating Voltage (VDC)

12

Rated Torque(kg-cm)
Stall Torque(Kg-Cm)

90

Max. Operating Current (mA)
Operating Temperature (°C)

-10 to 85

Shaft Diameter (mm)

8

Shaft Length (mm)

25.6

Gearbox Shape

Rectangle

Gear Material

Mild Steel

Body Dimensions (Dia. x Length) mm
Weight (gm)
Shipment Weight

0.55 kg

Shipment Dimensions

12 × 8 × 8 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
