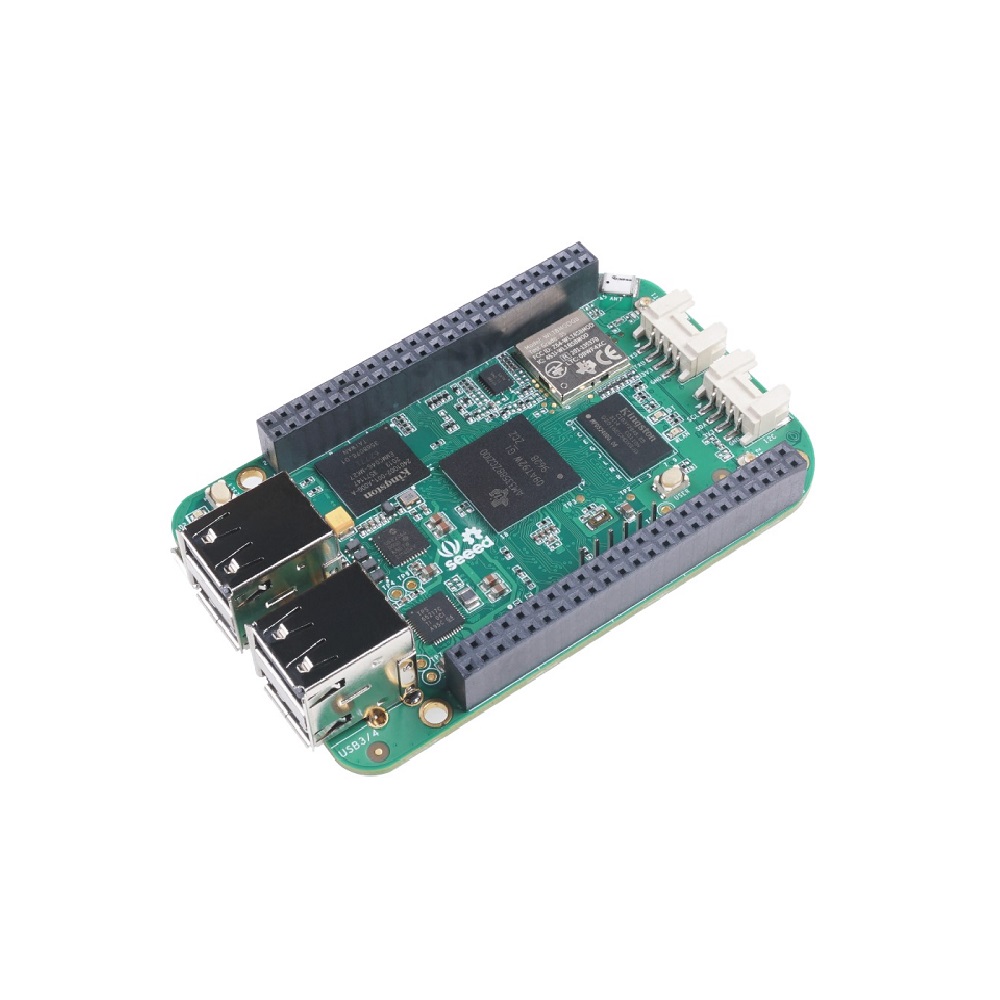

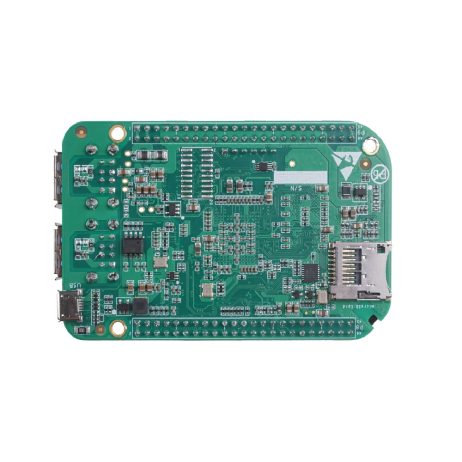

SeeedStudio BeagleBone Green Module

Availability:

In stock


SKU: 672597
  1. AM335x 1GHz ARMR Cortex-A8 Processor
  2. 512MB DDR3 RAM
  3. 4GB 8-bit eMMC onboard flash storage
  4. 3D graphics accelerator
  5. NEON floating-point accelerator
  6. 2x PRU 32-bit microcontrollers
  7. USB client for power & communications
  8. USB host
  9.  Ethernet

 5,699.00

(inc GST)

₹ 4829.66 (+18% GST extra)

In stock

Purchase this product now and earn 57 Robu Points!
Category: Single Board Computer

Seeed Studio BeagleBone Green is a joint effort by BeagleBoard.org and Seeed Studio. It is based on the open-source hardware design of BeagleBone Black and developed into this differentiated version.

If you ever heard of BeagleBone Black, you may know that BeagleBone® Black was the most popular board in the BeagleBone board family. It is much cheaper than the previous version while inherits all the good features of BeagleBone. Seeed Studio BeagleBone Green is better than BeagleBone Black, as shown in the table below with almost all the good features of BeagleBone® Black such as the tiny size, abundant interface, and strong expansibility, while at the same changed it a bit to make it more powerful.

Boards Comparison

BeagleBone® Black Seeed Studio BeagleBone® Green Seeed Studio BeagleBone® Green Wireless
AM3358 1GHz ARM® Cortex-A8 AM3358 1GHz ARM® Cortex-A8 AM3358 1GHz ARM® Cortex-A8
512MB DDR3 RAM 512MB DDR3 RAM 512MB DDR3 RAM
4GB 8-bit eMMC onboard flash storage 4GB 8-bit eMMC onboard flash storage 4GB 8-bit eMMC onboard flash storage
3D graphics accelerator 3D graphics accelerator 3D graphics accelerator
NEON floating-point accelerator NEON floating-point accelerator NEON floating-point accelerator
2x PRU 32-bit microcontrollers 2x PRU 32-bit microcontrollers 2x PRU 32-bit microcontrollers
USB client for power & communications USB client for power & communications USB client for power & communications
1x USB host 1x USB host 4x USB2.0 host
Ethernet Ethernet Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
2×46 pin headers 2x 46 pin headers 2x 46 pin headers
HDMI port 2x Grove connectors 2x Grove connectors


Features:

  1. Fully Compatible with BeagleBone® Black
  2. Processor: AM335x 1GHz ARMR Cortex-A8
    • 512MB DDR3 RAM
    • 4GB 8-bit eMMC onboard flash storage
    • 3D graphics accelerator
    • NEON floating-point accelerator
    • 2x PRU 32-bit microcontrollers
  3. Connectivity
    • USB client for power & communications
    • USB host
    • Ethernet
    • 2x 46 pin headers
    • 2x Grove connectors (I2C and UART)
  4. Software Compatibility
    • Debian
    • Android
    • Ubuntu
    • Cloud9 IDE on Node.js w/ BoneScript library
    • plus much more

Applications:

  1. Internet of Things
  2. Smart House
  3. Industrial
  4. Automation & Process Control
  5. Human Machine Interface
  6. Sensor Hub
  7. Robot

Useful Links:

Tutorial

Seeed Studio BeagleBone® Green Schematic(pdf)


Package Includes:

1 x SeeedStudio BeagleBone Green

1 x USB Cable

1 x User Guide

Processor

AM3358 1GHz ARM® Cortex-A8

RAM

512MB DDR3

On-board Flash Storage

4GB eMMC

CPU Supports

NEON floating-point & 3D graphics accelerator

Micro USB Supports

Powering & communications

USB

1x USB host

Grove Connectors

2

GPIO

2 x 46 pin headers

Operating Temperature

0 ~ 75℃

Dimensions

126mm x76mm x24mm

Weight (g)

81

Shipment Weight

0.085 kg

Shipment Dimensions

10 × 6 × 2 cm

3 Months Warranty

This item is covered with a standard supplier warranty of 3 months from the time of delivery against manufacturing defects only. This is a quality product & only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

AM335x Datasheet

Documents
