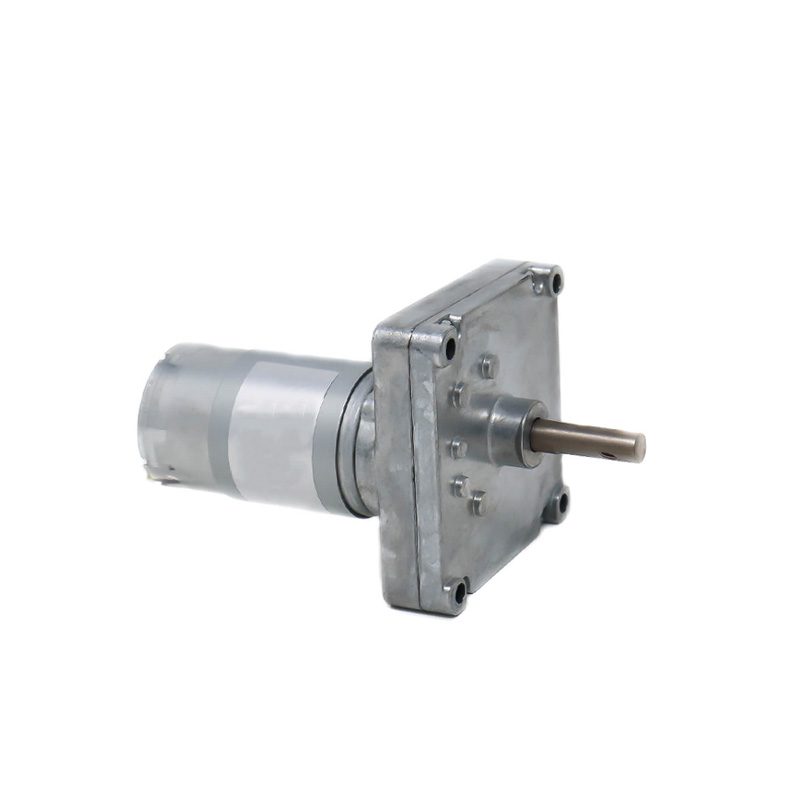

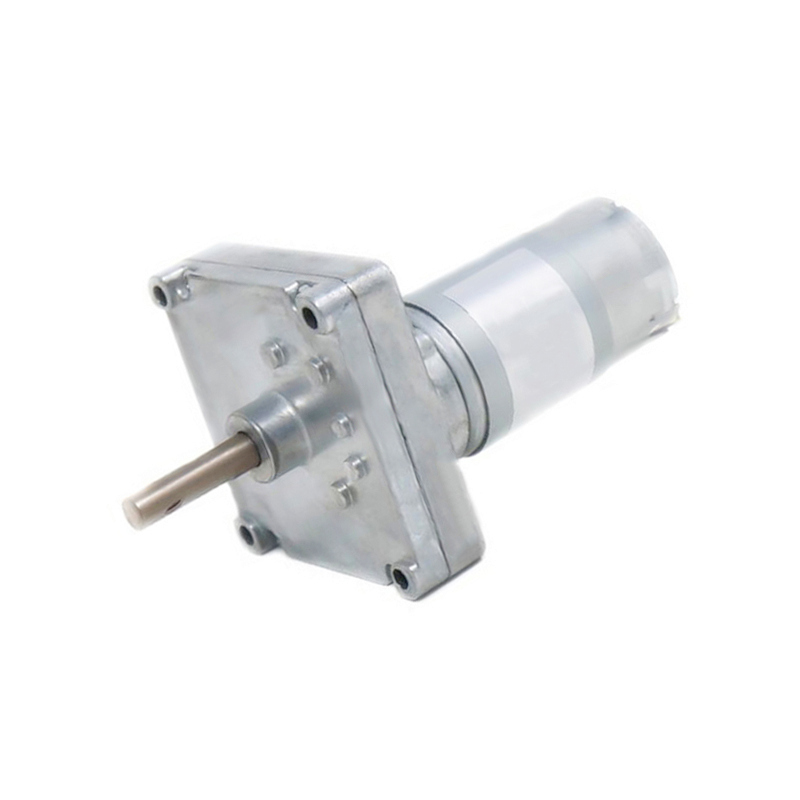

Square Gearbox Motor – 300RPM

Availability:

Out of stock

Approx Restocking Date: 25 to 30 Days
SKU: 6408
  1. Base Motor RPM: 6000
  2. Rated Speed: 300 RPM
  3. Rated Voltage: 12 V
  4. Rated Torque: 7 kg-cm
  5. Stall Torque: 27 kg-cm
  6. Shaft Length: 25.6 mm

 1,281.00

(Including GST)

Out of stock


Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Category: Orange 12V Square Gear Box Motor
Tags: Square gearbox moter, DC Motor, High Torque Motors, DC Geared Motor, Grade A Motor, 12V Motor, geared

The Square GearBox Motor is mechanically commutated DC electric motor which simply means that these motors equip Gearboxes for providing a great balance between torque-speed as per your requirement.

So, Square GearBox Motor is a simple DC motor of 6000RPM(Base Motor RPM) which features a heavy-duty metal gearbox. This Square gearBox DC motor is a very high torque motor which should be used to make big robots or robotized platform.

The motor will run at 300 RPM when powered with 12V DC supply. It produces the massive torque of 7 kg-cm at 300 RPM.

The motor shaft is made up of good quality Engineering steel with nickel plating to handle high Torsion Stress. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The Square GearBox Motor’s shaft is the D-type shaft which ensures strong and safe coupling.

The Square GearBox Motor is very easy to use and available in standard size. Their wide application areas include Robot Development, centralized air conditioning valve, amusement equipment, coin refund devices, grill, oven, peristaltic pumps, atm bank automatic system, medical equipment, office equipment, household appliances, automatic actuator and many other Industrial applications.

The recommended driver module for this motor is  SmartElex 15S or you can choose the most precise motor diver module from the wide range available in our Motor divers category as per your specific requirements.

Note: Depending upon the Manufacturer given dimensions may vary in the range of ±5%

We have following Square gearbox DC motor with different torque values, (click on RPM values for more details about each motor)

10  – 22 kg-cm
30 – 19 kg-cm
60 – 16 kg-cm
100 – 14 kg-cm
150 – 11 kg-cm
240 – 8.5 kg-cm
300 – 7 kg-cm
480 – 3 kg-cm


Features :

  1. High-Torque DC Motors.
  2. It has a very strong and sturdy construction.
  3. The drive shaft is supported with metal bushes.
  4. D-type shaft.

Package Includes:

1 x Square Gearbox Motor – 300RPM

Base Motor Rated RPM

6000

Speed (RPM)

300

Operating Voltage (VDC):

12

Shaft Diameter (mm)

(D-type), 8

Shaft Length (mm)

25.6

Gear Material

Mild Steel

Gearbox Shape

Square

Operating Temperature (°C)

-10 to 85

Shipping Weight 0.56 kg
Shipping Dimensions 12 × 8 × 8 cm
15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Square Gearbox Motor – 300RPM”

There are no reviews yet.

Schematic

Questions and answers of the customers

    this motor how much weight can lift ?
  1. 0 votes
    Q this motor how much weight can lift ? answer now
    Asked by udaykiran007.uu on January 26, 2024 9:25 pm
    A it can lift up to 7kg of weight at a distance of 1... Read more
  2. What is the type of this dc motor?
  3. 0 votes
    Q What is the type of this dc motor? answer now
    Asked by Abhishek Gupta on August 9, 2020 5:46 pm
    Answered by the admin it is square gearbox brushed DC motor
Only registered users are eligible to enter questions
Country Of Origin: China
