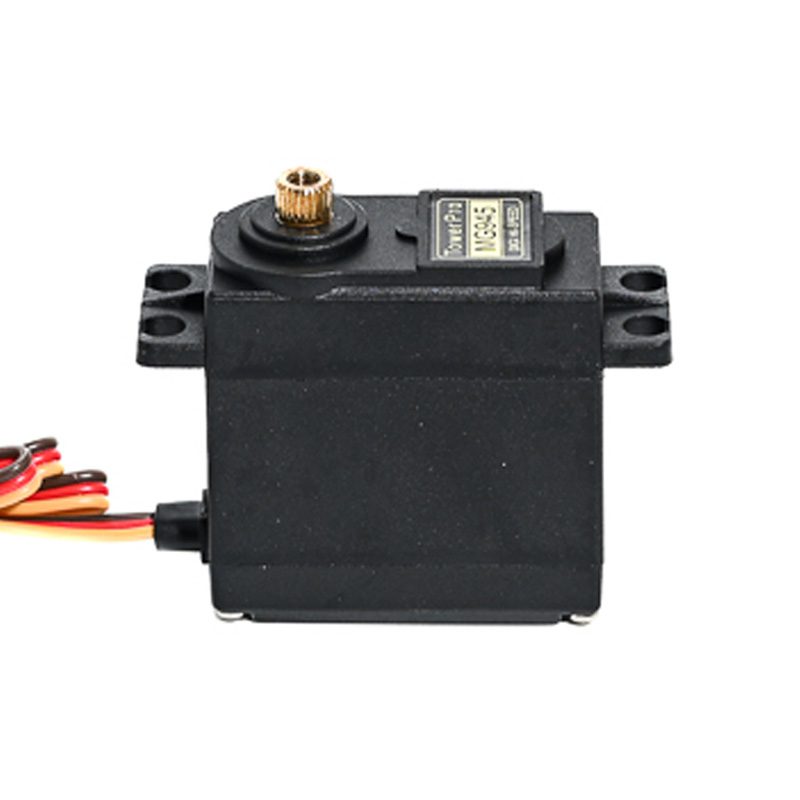

TowerPro MG945 Digital High Speed Servo Motor – Good Quality

Availability:

In stock


SKU: 618524
  1. High quality
  2. Servo wire length: 32cm
  3. Servo Plug: JR (Fits JR and Futaba)
  4. CE & RoHS approved
  5. Servo gear set and shaft have been upgraded to aluminum 6061-T6,which is stronger and lighter than copper.
  6. Universal “S” type connector,fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum

 549.00

(inc GST)

₹ 465.25 (+18% GST extra)

In stock

Prices shown above are Inclusive of GST

Purchase this product now and earn 6 Robu Points!
Brand: Generic
Category: Other Servo motor
Tags: MG945, High quality

Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognize and buy an original TowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name. Robu.in believes in satisfied customers, so whatever the product is we first import them then test them for their supplier defined and standard capabilities. Only after doing all the possible quality checks we make the product available to our customers.

It is a low cost and high quality digital servo with export quality and great  servo for just about any application. MG945 is for 1/8 buggy monster and many RC model. Please refer to product configure table provided in the attachments.



Wire Description

RED Positive

BrownNegative

Orange Signal

We are also selling the wide range of Servo Motors with variable specs and quality material, Check them now here. Servo Motors and Accessories


Features:

  1. Gear Type: Metal gear
  2. Power Supply: Through External Adapter
  3. Servo wire length: 32cm
  4. Servo Plug: JR (Fits JR and Futaba)
  5. CE & RoHS approved
  6. Servo gear set and shaft have been upgraded to aluminum 6061-T6,which is stronger and lighter than copper.
  7. Universal “S” type connector,fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.

Package Includes:

1 x TowerPro MG945 Digital High Speed Servo Motor – Good Quality and Accessories Parts (as shown in the image)

Operating Voltage (VDC)

4.8~ 6.6

Temperature range

0- 55º

Stall Torque @ 4.8V (Kg-Cm)

10

Stall Torque @6.6V (Kg-Cm)

12

Operating Speed @4.8V

0.23sec/60º

Operating Speed @6.6V

0.2sec/60º

Degree of rotation

180°

Dead band width

1uS

Gear Type

Metal

Length (mm)

40.7

Width (mm)

19.7

Height (mm)

42.9

Weight (gm)

66

Shipment Weight

0.07 kg

Shipment Dimensions

5 × 3 × 5 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
