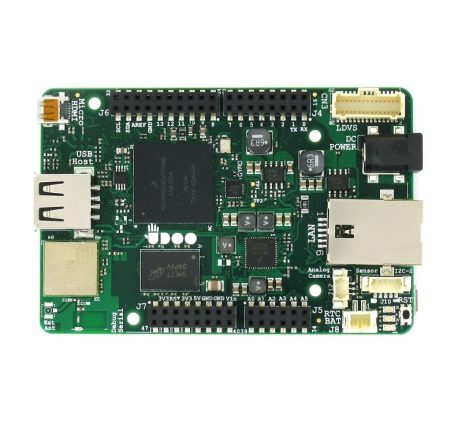

Udoo Neo Basic Development Board

Availability:

Out of stock - Join the waitlist to be emailed when this product becomes available


SKU: 202893
  1. NXP i.MX 6SoloX applications processor with an embedded ARM Cortex-A9 core and a Cortex-M4 Core
  2. Integrated 2d/3d graphics controller
  3. Micro HDMI interface – LVDS interface + touch (I2C signals)
  4. Analogue camera connection supporting NTSC and PAL – 8-bit parallel camera interface
  5. MicroSD card slot onboard – 8-bit SDIO interface
  6. HDMI audio transmitter – S/PIDF & I2S
  7. Green Power Status LED – User Configurable LEDs (Red and Orange)
  8. Arduino-Compatible through the standard Arduino Pins layout and compatible with Arduino shields

 4,799.00

(inc GST)

₹ 4066.95 (+18% GST extra)

Out of stock - Join the waitlist to be emailed when this product becomes available

Category: Udoo Board

UDOO NEO BASIC is the perfect solution for low power consumption embedded systems.

You can use it as a Headless Device, exploiting USB and Ethernet ports. The board is compatible with most Arduino shields, sensors and actuators. UDOO NEO BASIC is also compatible with UDOO Bricks: programmable modules, like the temperature sensor and the barometric sensor, that you can add to make UDOO NEO BASIC even more versatile.

UDOO NEO BASIC can be powered in three ways. You can use:

  • A standard 12 volts power supply, we recommend this one
  • A Micro USB cable like the one we have in our USB Kit
  • Any USB battery pack available on the market.

Features:

  1. NXP i.MX 6SoloX applications processor with an embedded ARM Cortex-A9 core and a Cortex-M4 Core
  2. Integrated 2d/3d graphics controller
  3. Micro HDMI interface – LVDS interface + touch (I2C signals)
  4. Analogue camera connection supporting NTSC and PAL – 8-bit parallel camera interface
  5. MicroSD card slot onboard – 8-bit SDIO interface
  6. HDMI audio transmitter – S/PIDF & I2S
  7. Green Power Status LED – User Configurable LEDs (Red and Orange)
  8. Arduino-Compatible through the standard Arduino Pins layout and compatible with Arduino shields
  9. 32 extended GPIOs (A9 dedicated) – 22 Arduino GPIOs (M4 dedicated)
  10. 6 available Pins
  11. Android Lollipop & Linux UDOObuntu2 (14.04 LTS)
For detailed specification please refer to the Datasheet of the product.

Package Includes:

1 x  Udoo Neo Basic Development Board

Processor

ARM Cortex-A9 core and a Cortex-M4 core

Memory

1GB (only Extended and Full)

Graphics

Integrated 2d/3d graphics controller

Mass Storage

MicroSD card slot onboard
8-bit SDIO interface*

Audio

HDMI audio transmitter
S/PIDF & I2S*

USB

1x USB 2.0 Type-A ports
1x USB OTG (micro-AB connector)

Other Interfaces

8x PWM signals*
3x I2C interface*
1x SPI interface*
6x multiplexable signals*

Power Supply

5 V DC Micro USB
6-15 V DC Power Jack
RTC Battery Connector

LEDs

Green Power Status LED
User Configurable LEDs (Red and Orange)

Integrated Sensors

3-Axis Accelerometer (only Extended and Full)
3-Axis Magnetometer (only Extended and Full)
3-Axis Digital Gyroscope (only Extended and Full)
1x Sensor Snap-In I2C connector (only Extended and Full)

Serial Ports

3x UART ports*
2x CAN Bus interfaces*

Operating System

Android Marshmallow 6.0.1 & Linux UDOObuntu2 (14.04 LTS)

Dimensions

89mm x59mm (3.50″ x 2.32″)

Weight(g)

60

Shipment Weight

0.06 kg

Shipment Dimensions

10 × 6 × 2 cm

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.


What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
