What are Pull-up and Pull-down resistors?
The article will give you a better understanding of the pull-up and pull-down resistors.
Hello again! and welcome back to another informative article on a concept which is used widely in connecting many sensors. If you check out any digital electronic circuit, you’ll find pull-up and pull-down resistors in them. They are used to correctly bias the inputs of digital gates to stop them from floating around randomly when there is no input condition.
For any micro controller in an embedded system such as Arduino, pull-up and pull-down resistors utilize input and output signals for communication with external hardware devices, the General Purpose Input Output (GPIO). Implementing the pull-up and pull-down resistors in the circuit will let you achieve either ‘high’ or ‘low’ states. If you don’t implement it and there’s nothing connected to your GPIO pins, your program will read a “floating” impedance state. Now let's move ahead into brief explanation of them.
More to read like this
- BLE with ultra low power SOC
- What is Arduino Pro Mini?
- Raspberry Pi Launches Official fan for their case
A pull-up resistor is used to establish an additional loop over the critical components while making sure that the voltage is well-defined even when the switch is open. It is used to ensure that a wire is pulled to a high logical level in the absence of an input signal. They are simple fixed-value resistors connected between the voltage supply and the appropriate pin that defines the input or output voltage in the absence of a driving signal.
When the switch is open, the voltage of the gate input is pulled up to the level of the input voltage. When the switch is closed, the input voltage at the gate goes directly to the ground. You need to use a pull-up resistor when you have a low default impedance state and wish to pull the signal to ‘high’.

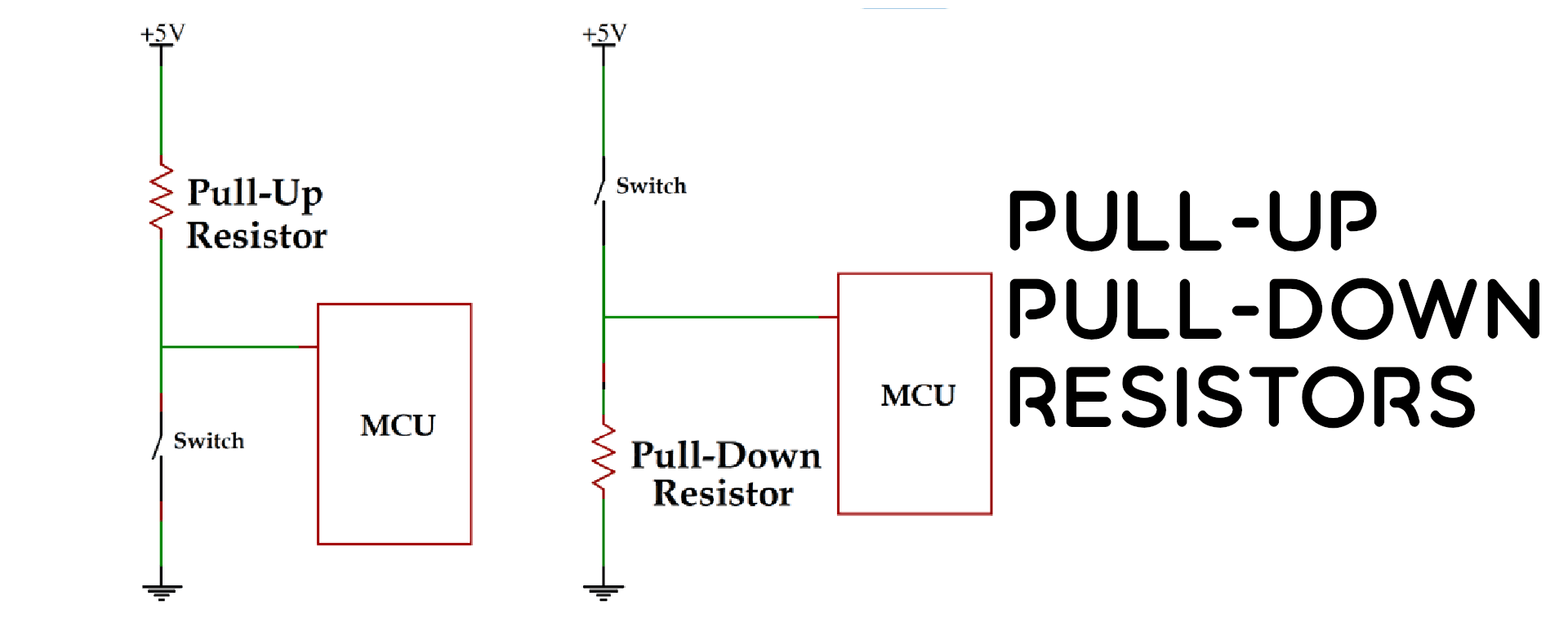

In the figure above, a pull-up resistor with a fixed value was used to connect the voltage supply and a particular pin in the digital logic circuit. The pull-up resistor is paired with a switch to ensure that the voltage between Ground and VCC is actively controlled when the switch is open. At the same time, it will not affect the state of the circuit. If we do not use a pull-up resistor, it will result in a short circuit.
This is because the pin cannot be directly shorted to the ground or VCC as this will eventually damage the circuit. Following the principle of Ohm’s law, if there is a pull-up resistance, a small amount of current will flow from the source to the resistors and to the switch before reaching the ground.
On the other hand, a pull-down resistor is used to ensure that inputs to logic systems settle at expected logic levels whenever external devices are disconnected or of high impedance. It ensures that the wire is at a defined low logic level even when there are no active connections with other devices. The pull-down resistor holds the logic signal near to zero volts (0V) when no other active device is connected. It pulls the input voltage down to the ground to prevent an undefined state at the input.
It should have a larger resistance than the impedance of the logic circuit. Otherwise, it will make the input voltage at the pin on constant logical low value no matter the position of the switch. When the switch is open, the voltage of the gate input is pulled down to the level of the ground. When the switch is closed, the input voltage at the gate goes to Vin. Without the resistor, the voltage levels would virtually float between the two voltages.
Just like the pull-up resistor in the first figure, the pull-down resistors in this circuit also ensures that the voltage between VCC and a microcontroller pin is actively controlled when the switch is open. Unlike the pull-up resistor, the pull-down resistor pulls the pin to a low value instead of high value.
The pull-down resistor which is connected to the ground or 0V sets the digital logic level pin to default or 0 until the switch is pressed and the logic level pin becomes high. Therefore, the small amount of current flows from the 5-V source to the ground using the closed switch and pull-down resistor preventing the logic level pin from getting shorted with the 5-V source.
Ideal Resistance Values for Pull-up and Pull-down Resistors
In choosing the value of the pull-up resistor, there are two considerations:
- Power dissipation
When the button is pressed, the input pin is pulled low. The value of resistor near the supply controls how much current you want to flow from VCC through the button, and then to ground. High current will flow through the pull-up resistor if the resistance value is too low. It may cause unnecessary usage of power even when the switch is closed since the device will heat up. This condition is called a strong pull-up and should always be avoided when low power consumption is a requirement.
- Pin voltage when the switch is open
When the button is not pressed, the input pin is pulled high. The value of the pull-up resistor controls the voltage on the input pin. When the switch is open and a high pull-up resistance value is combined with a large leakage current from the input pin, the input voltage can become insufficient. This is called having a weak pull-up. The pull-up resistor’s actual value depends on the impedance of the input pin that is closely related to the pin’s leakage current.
Based on the two conditions above, for pull-up resistors, you need to use a resistor that is at least 10 times smaller than the value of the input pin impedance. For logic devices that operate at 5V, the typical pull-up resistor value should be between 1-5 kΩ. On the other hand, for switch and resistive sensor applications, the typical pull-up resistor value should be between 1-10 kΩ.
For pull-down resistors, it should always have a larger resistance than the impedance of the logic circuit. Or else, it will pull the voltage down by too much and the input voltage at the pin would remain at a constant logical low value regardless of whether the switch is on or off.
So That was all for today's article. We learned what are pull up and pull down resistors in brief. If you have any suggestions or feedback, feel free to comment. Also share it with your friends. Peace Out!
