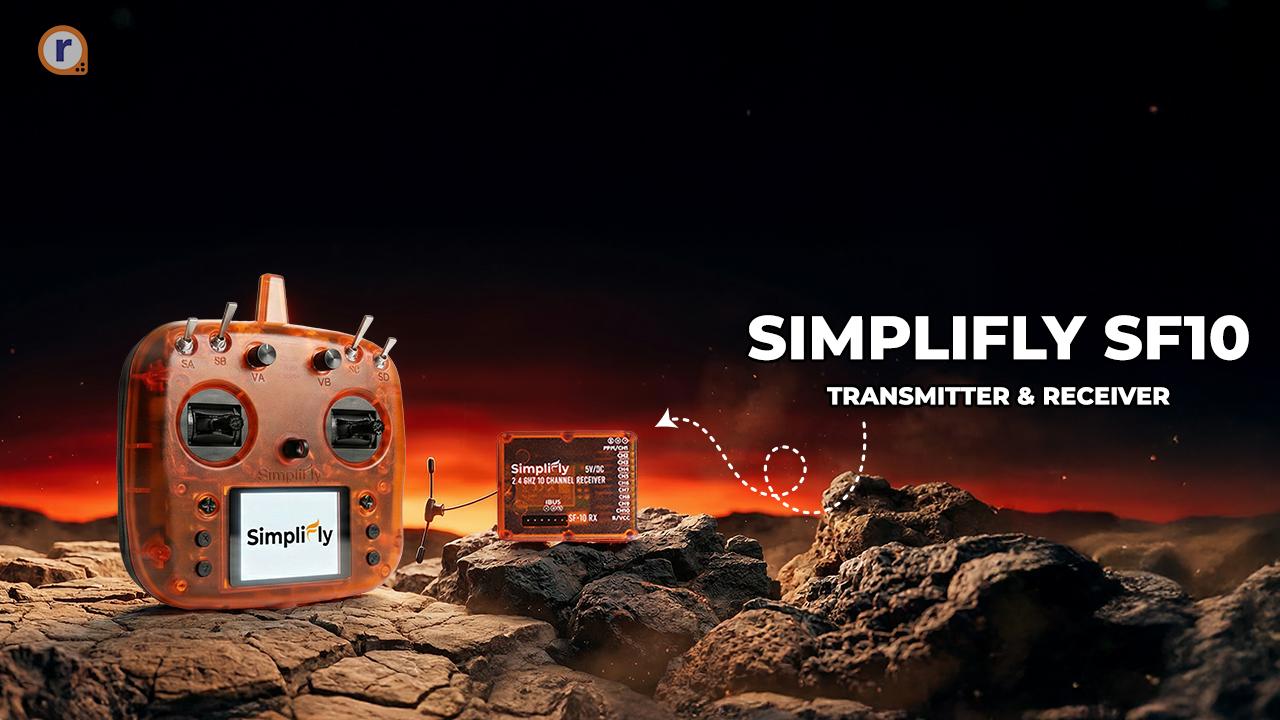

SimpliFly SF10 2.4GHz 10-Channel RC Transmitter & Receiver – Precision Control for UAVs & Robotics

For building reliable drones or advanced robotics systems, control and communication are very important. Whether you're flying a UAV, testing automation systems, or developing robotics projects, a stable and precise RC system can make all the difference.

The SimpliFly SF10 which is a  2.4GHz 10-Channel RC Transmitter & Receiver is designed to deliver exactly that

It provides long-range communication, high precision control, and reliable performance, all in a compact, easy-to-use system.

What is SimpliFly SF10?

The SimpliFly SF10 is a high-performance 10-channel RC system which includes transmitter and receiver built for UAVs, drones, and robotics applications. Operating on the 2.4GHz ISM band, it ensures stable wireless communication with up to 1.5 km line-of-sight range.

With 500mW RF output power and 4096 stick resolution, the system offers smooth, responsive, and accurate control therefore ideal for both beginners and advanced users.

SimpliFly SF10 Key features

• 10-Channel RC Control System for complex robotics and UAV operations

• 2.4GHz ISM Band for reliable and interference-resistant communication

• Up to 1.5 km LOS Range for extended control distance

• 500mW RF Output Power for strong signal transmission

• 4096 Stick Resolution for ultra-smooth and precise control

• 2.4-inch TFT Display (240×320) for real-time monitoring

• Type-C Charging

• PPM Simulator Support for training and simulation

• Multi-Protocol Receiver (PPM / PWM / IBUS)

• High Receiver Sensitivity (-115 dBm) for better signal stability

Transmitter – Built for Precision Control

The transmitter in the SimpliFly SF10 system is engineered for accurate input and reliable communication, ensuring smooth control over your drone or robot.

Key Specifications:

• Channels: 10

• Frequency Range: 2.4000 – 2.4835 GHz

• RF Power: <27 dBm (500mW)

• Stick Resolution: 4096

• Display: 2.4-inch TFT (240×320)

• Charging: USB Type-C (5V, 1–2A)

• Battery: 3.6V 2800mAh Li-ion ×2

• Range: Up to 1.5 km LOS

The high stick resolution ensures smoother movements, making it perfect for precision tasks like drone stabilization and robotic arm control.

Receiver – Reliable Signal & Flexible Connectivity

The receiver is designed to deliver stable signal reception with multiple output options, making it compatible with a wide range of controllers and systems.

Key Specifications:

• Channels: 10

• Frequency Range: 2.4000 – 2.4835 GHz

• Receiver Sensitivity: -115 dBm

• Outputs: PPM / PWM / IBUS

• IBUS Baud Rate: 115200

• Input Voltage: 4.0 – 5.0V

 With multi-protocol support, this receiver easily integrates with flight controllers, microcontrollers, and robotics systems.

Why SimpliFly SF10 Stands Out

Long-Range Performance

Control your UAV or robot up to 1.5 km LOS, ideal for field testing and large-area operations.

High Precision Control

With 4096 resolution, you get extremely smooth and responsive control inputs.

Strong Signal Reliability

The 500mW RF power + -115 dBm sensitivity ensures consistent communication even in challenging environments.

Easy Integration

Supports PPM, PWM, and IBUS, making it compatible with:

• Flight controllers

• Arduino / ESP32 systems

• Robotics platforms

User-Friendly Design

• Clear TFT display

• Type-C charging

• Plug-and-play usability

Applications

The SimpliFly SF10 is ideal for:

• Multirotor drones & UAVs

• Agricultural drones

• Industrial robotics systems

• Automation projects

• Educational & research platforms

• RC vehicles & experimental builds

Made in India – Built for Performance

The SimpliFly SF10 is proudly designed and manufactured in India, making it a reliable and accessible solution for Indian engineers, students, and innovators.  It combines global-level performance with local availability and support, making it a strong choice for both hobbyists and professionals.

Why Choose SimpliFly SF10?

If you're looking for an RC system that offers:

• Long range

• High precision

• Stable communication

• Flexible integration

• Affordable performance

Then the SimpliFly SF10 is a smart choice for your next UAV or robotics project.

Final Thoughts

The SimpliFly SF10 10-Channel RC System delivers a perfect balance of performance, reliability, and usability. Whether you're building a competition robot, testing drones, or experimenting with automation, this system ensures your control remains smooth, stable, and responsive.

SimpliFly SF10 – Precision Control. Long-Range Reliability.

Made in India. Built for Engineers.

Upgrade your control system today and take your robotics projects to the next level. -
