How to run Rotary Encoder + Arduino (with code)

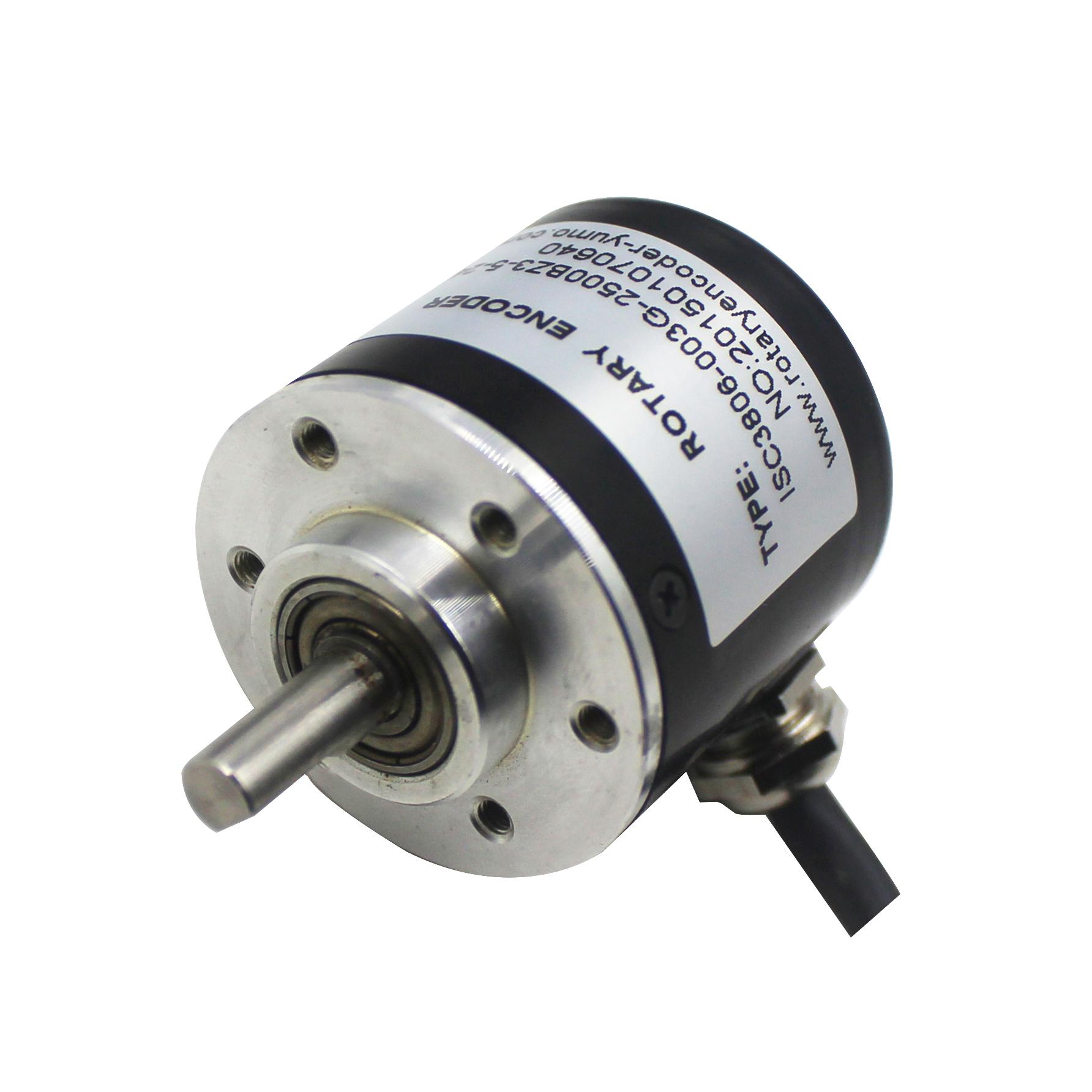

A rotary encoder is a device that you can rotate infinitely. Simple ones like this one have no real state like a pot does, so when you start up, you won’t be able to simply read from the encoder where it is turned to. But because you can keep turning it it has no beginning, middle or end anyways. However, if you keep track of that rotation in code, you can use it as a knob input you can turn up or down as much as you would like.

Most simple encoders like this only make use of 4 pins, one of those is ground and other Vcc. Those other two pins change state and are always either high or low, so they can only have a total of 4 combinations. 00, 01, 10, and 11. This is known as 2 bit gray code. So when you turn it, the arduino can say… Well you were at 01, and now you are at 00 so you move this way. Or you were at 01, but now you are at 10 so you must have moved the other way. You can see that this encoder has 5 pins, the other 2 are just a simple switch that is engaged when you press down. (see the second illustration on the right)

It sounds super simple, and it kinda is, but what we can do is every time a value changes we can check what direction it moved. Then if we increment a value every time it turned one way, and deincrement it when we move one step the other, we can keep track of how much it has moved since we started. So if you want a knob that can turn up to 11, this is your guy. (there is a double pun in there I promise)

So, the really funky thing about a rotary encoder is for it to work, we need to know every time those values change. This can be hard because if the arduino is in the middle of doing something, like delay(1000) or what have you, we will miss the change. So we need a way to say to the arduino “I don’t care what you are doing, or when you are doing it, if you see any of these two pins change state, you drop everything and attend to them”. To do this we need something called interrupts.

Interrupts Are Magic

Interrupt pins are special pins that can stop your arduino and force it to do something else before it moves on. Because they are special pins you only get a few of them on your arduino, but these pins can watch for any CHANGE (high to low / low to high), FALLING (high to low) or RISING (low to high). You can attach interrupt functions to these pins, so if a change happens, it will drop everything and run that function. It gets funky as it breaks the basic linear nature of the arduino loop, but can become the most powerful thing when you get the hang of it.

Any global variables that are used inside these functions have a special name. They are called volatile variables, and for good reason. Their values can change at any time. So if you use a volatile twice in your loop, it may not be the same value the second time if it was change during an interrupt function.


To keep track of the rotary encoder we are going to do something that will look really weird, so bear with me. The encoder has 2 digital pins that are either HIGH (1) or LOW (0) right? If we treat the pins as binary, we read them as 00, 01, 10, or 11. The sequence the encoder outputs while spinning clockwise is 00, 01, 11, 10 repeat. So if you have a reading of 01, the next reading can either be 00 or 11 depending on the direction the knob is turned. So by adding the previous encoded value to the beginning of the current encoded value we get 1 of 8 possible numbers (0001, 0010, 0100, 0111, 1000, 1011, 1110 & 1101) 1101, 0100, 0010 & 1011 all mean cockwise movement. 1110, 0111, 0001 & 1000 are all counter-clockwise.

So now we can say this: (sum is last reading + current reading)

if(sum == 0b1101 || sum == 0b0100 || sum == 0b0010 || sum == 0b1011) encoderValue ++; //clockwise movement
if(sum == 0b1110 || sum == 0b0111 || sum == 0b0001 || sum == 0b1000) encoderValue --; //counter-clockwise movement

If we wanted to treat the binary as decimal numbers we could even shorten that to this:

if(sum == 13 || sum == 4 || sum == 2 || sum == 11) encoderValue ++;
if(sum == 14 || sum == 7 || sum == 1 || sum == 8 ) encoderValue --;

Arduino Code

//these pins can not be changed 2/3 are special pins
int encoderPin1 = 2;
int encoderPin2 = 3;

volatile int lastEncoded = 0;
volatile long encoderValue = 0;

long lastencoderValue = 0;

int lastMSB = 0;
int lastLSB = 0;

void setup() {
  Serial.begin (9600);

  pinMode(encoderPin1, INPUT);
  pinMode(encoderPin2, INPUT);

  digitalWrite(encoderPin1, HIGH); //turn pullup resistor on
  digitalWrite(encoderPin2, HIGH); //turn pullup resistor on

  //call updateEncoder() when any high/low changed seen
  //on interrupt 0 (pin 2), or interrupt 1 (pin 3)
  attachInterrupt(0, updateEncoder, CHANGE);
  attachInterrupt(1, updateEncoder, CHANGE);


void loop(){
  //Do stuff here

  delay(1000); //just here to slow down the output, and show it will work  even during a delay

void updateEncoder(){
  int MSB = digitalRead(encoderPin1); //MSB = most significant bit
  int LSB = digitalRead(encoderPin2); //LSB = least significant bit

  int encoded = (MSB << 1) |LSB; //converting the 2 pin value to single number
  int sum  = (lastEncoded << 2) | encoded; //adding it to the previous encoded value

  if(sum == 0b1101 || sum == 0b0100 || sum == 0b0010 || sum == 0b1011) encoderValue ++;
  if(sum == 0b1110 || sum == 0b0111 || sum == 0b0001 || sum == 0b1000) encoderValue --;

  lastEncoded = encoded; //store this value for next time


About the Author

Related Post


Dear Team,
Your code for Arduino + Encoder was very much helpful, but Please check it once, Note the initial value and rotate the shaft of encoder left to right 360 degree. Then rotate it back to its initial position right to left 360 degree, The initial value will not be equal to new initial value. whether the rotation is 360 or anything else. Please help to figure this error out.


    How much error are you getting? There might be some noise in the system. Please mail a writeup or a small video on We would be glad to look it up for you.


Very easy to follow and I really like the way you used bitwise operators to distinguish between clockwise and counter-clockwise, excellent work.
I can you see you put a lot of thought into the code and effort into this article, well done.

my setup counts by two though which I can quick fix quite easily by dividing encoderValue by 2, The code doesnt look like its supposed to count by 2 (refering to line 44 and 45
` if(sum == 0b1101 || sum == 0b0100 || sum == 0b0010 || sum == 0b1011) encoderValue ++; `
` if(sum == 0b1110 || sum == 0b0111 || sum == 0b0001 || sum == 0b1000) encoderValue –; `
Is the code supposed to count by 2? or do you think there is some other cause, like bounce in my encoder or something?

Cheers Rhys


    Thanks, Encoder value should only increase by 1 at time. Can you please share your code, we can have look at it.
