XUNPU R181101 1 1

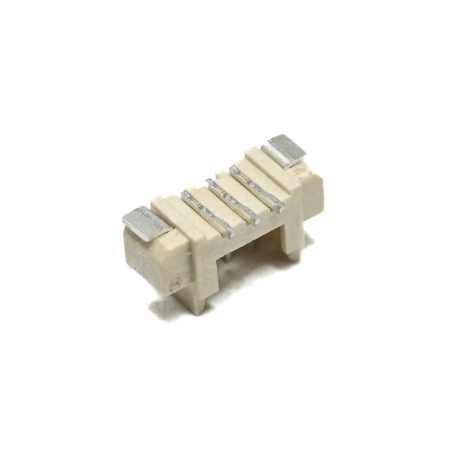

WAFER-MX1.25-3PLB-XUNPU-1x3P PicoBlade(MX 1.25) 3P 3 -25℃~+85℃ 1A 1 1.25mm Brass Standing paste SMD,P=1.25mm Wire To Board Connector ROHS

Availability:

In stock
SKU: R218842
Add to Wishlist
  1. MPN: WAFER-MX1.25-3PLB
  2. Brand: XUNPU
  3. MOQ Reel: 1500/Full Reel
  4. Packaging Type: Cut Tape

For bulk orders or B2B inquiries, email us: [email protected]

₹ 5.00 (Incl. GST)

In stock

Purchase this product now and earn 1 Robu Point!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: XUNPU
Category: Male Pin Connector

WAFER-MX1.25-3PLB-XUNPU-1x3P PicoBlade(MX 1.25) 3P 3 -25℃~+85℃ 1A 1 1.25mm Brass Standing paste SMD,P=1.25mm Wire To Board Connector ROHS.

Note: Images for reference only.

Specifications:

Manufacturer: XUNPU
Package: SMD,P=1.25mm
Y-Width of Bottom Edge on Board: 4.3mm
Pins Structure: 1x3P
Reference Series: PicoBlade(MX 1.25)
Number of Pins: 3P
Contact Plating: –
Row Spacing: –
Number of PINs Per Row: 3
Operating Temperature: -25℃~+85℃
Current Rating: 1A
Plastic Material: LCP
Color: Beige
Supplementary Features: Auxiliary soldering legs
Number of Rows: 1
Flame Retardant Rating: –
Pitch: 1.25mm
Voltage Rating: 125V
Contact Material: Brass
X-Length of Bottom Edge on Board (Spacing Line): 8.75mm
Z-Height of the Board: 4.7mm
Mounting Type: Vertical welding

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x WAFER-MX1.25-3PLB-XUNPU-1x3P PicoBlade(MX 1.25) 3P 3 -25℃~+85℃ 1A 1 1.25mm Brass Standing paste SMD,P=1.25mm Wire To Board Connector ROHS

SKU: R218842 Category:
Manufacturer:

XUNPU
No. of Contacts:

3
Pitch Spacing (mm):

No. of Rows:

1
No. of Pins:

3
Shipping Weight 0.001 kg
Shipping Dimensions 1 × 1 × 1 cm
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “WAFER-MX1.25-3PLB-XUNPU-1x3P PicoBlade(MX 1.25) 3P 3 -25℃~+85℃ 1A 1 1.25mm Brass Standing paste SMD,P=1.25mm Wire To Board Connector ROHS”

There are no reviews yet.

Datasheet

DOWNLOAD

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Only registered users are eligible to enter questions
Country Of Origin: China
