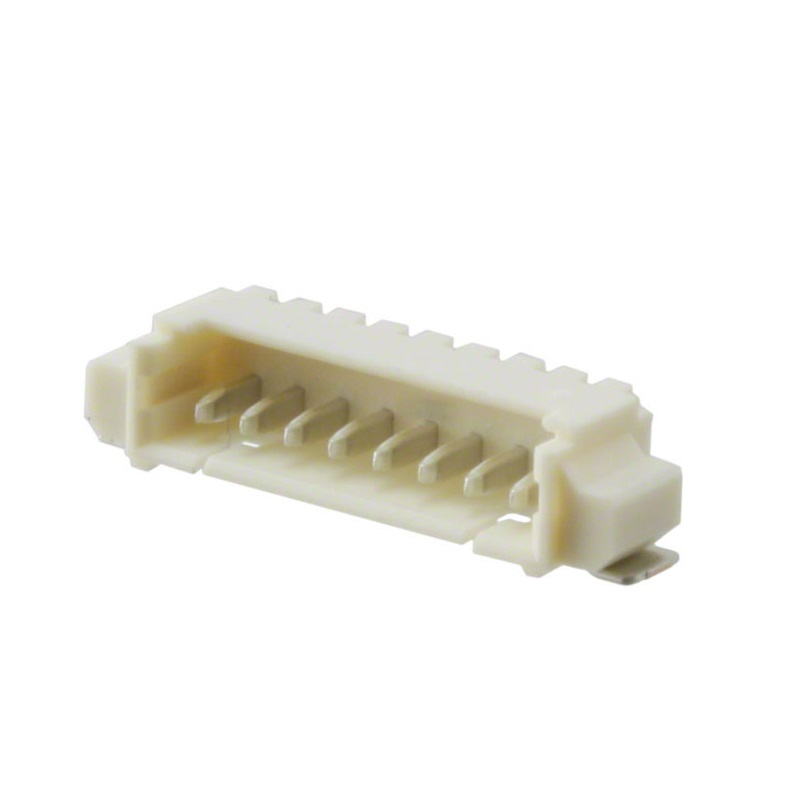

Molex 53261 0871

532610871-MOLEX-1x8P 8P PicoBlade(MX 1.25) Tin 8 -40℃~+105℃ 1A 1 1.25mm Phosphor Bronze Surface Mount SMD,P=1.25mm Wire To Board Connector ROHS

Availability:

In stock
SKU: R233668
Add to Wishlist
  1. MPN: 532610871
  2. Brand: Molex

For bulk orders or B2B inquiries, email us: [email protected]

₹ 26.00 (Incl. GST)

In stock

Purchase this product now and earn 1 Robu Point!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: Molex
Category: Male Pin Connector

532610871-MOLEX-1x8P 8P PicoBlade(MX 1.25) Tin 8 -40℃~+105℃ 1A 1 1.25mm Phosphor Bronze Surface Mount SMD,P=1.25mm Wire To Board Connector ROHS

Note: Images for reference only.

Specifications:

Manufacturer: MOLEX
Package:  SMD,P=1.25mm
Y-Width of Bottom Edge on Board:  5.2mm
Pins Structure:  1x8P
Number of Pins: 8P
Reference Series:  PicoBlade(MX 1.25)
Contact Plating:  Tin
Row Spacing:  –
Number of PINs Per Row:  8
Operating Temperature:  -40℃~+105℃
Current Rating:  1A
Plastic Material: Glass-Fiber Reinforced PA
Color: White
Supplementary Features:  Auxiliary Solder Pin
Number of Rows:  1
Flame Retardant Rating: UL94V-0
Pitch:  1.25mm
Voltage Rating: 125V

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x  532610871-MOLEX-1x8P 8P PicoBlade(MX 1.25) Tin 8 -40℃~+105℃ 1A 1 1.25mm Phosphor Bronze Surface Mount SMD,P=1.25mm Wire To Board Connector ROHS

SKU: R233668 Category:
Manufacturer:

Molex
No. of Contacts:

8
Pitch Spacing (mm):

No. of Rows:

1
No. of Pins:

8
Shipping Weight 0.001 kg
Shipping Dimensions 1 × 1 × 1 cm
