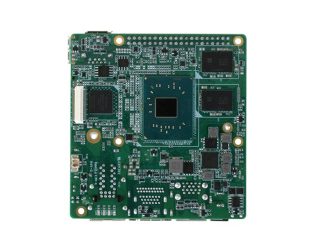

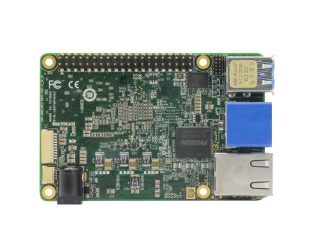

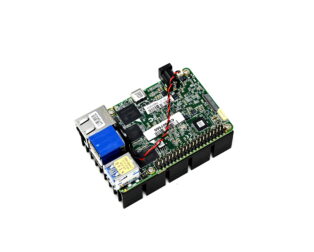

AAEON UP 4000 Single Board Computer with Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0

This is AAEON UP 4000 Single Board Computer with Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0. AAEON UP 4000 Developer Board is a credit card-sized successor to the previous UP Boards series. The 4000 Developer Board implements a more efficient and versatile platform for automation, robotics, and retail services. The AAEON UP 4000 features 12V standard industrial power input, increased memory options, and a wide range of IO options such as multiple video output ports, audio line in/out, faster USB ports, and other rich I/Os. The board achieves high performance with lower power consumption in a form factor designed to fit anywhere.

Note: Images are for reference only. See product specifications, datasheet, and manual in attachments for more technical details of the product.

Features:

1. Graphics: Intel® Gen 9 HD, supporting 4K Codec Decode and Encode for HEVC4, H.264, VP8
2. Ethernet: Gb Ethernet (full speed) RJ-45 x 1
3. Video coding: DX11.1/12, H.264 BP/MP/HP, OpenCL 1.2, OpenGL 4.2, VP8
4. Operating system support: Microsoft Windows 10 (full), Windows IOT Core, Yocto project 3.1 Kernel 5.4, Ubuntu 20.04 Kernel 5.4
5. USB: USB 3.2 Gen 1 (Type A) x 3 | USB 2.0 pin header (10 pins in total) x 2 | 1x USB3.0 OTG via USB type C
6. Expansion: 40 pin GPIO x1 || via carrier board: M.2 2230/2242/2280 x1 | M.2 3052 x1

Package Includes:

1 x AAEON UP 4000 Single Board Computer with Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0

1 x Passive Heatsink
