The Anycubic Photon Mono M7 offers an impressive 14K high-resolution exposure screen, 90mm/h printing speed, and a range of intelligent features designed to enhance print accuracy, efficiency, and user experience. This advanced resin 3D printer is a perfect solution for both hobbyists and professionals looking to produce high-quality, large-volume prints with minimal effort.

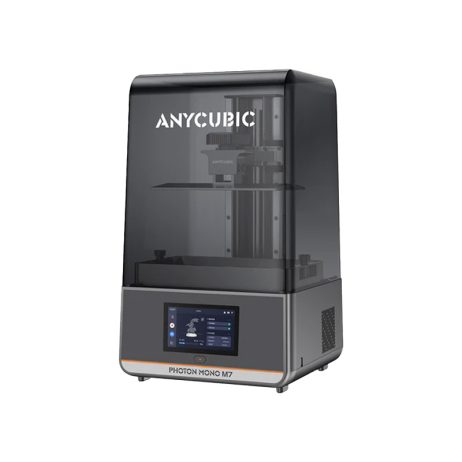

Anycubic Photon Mono M7

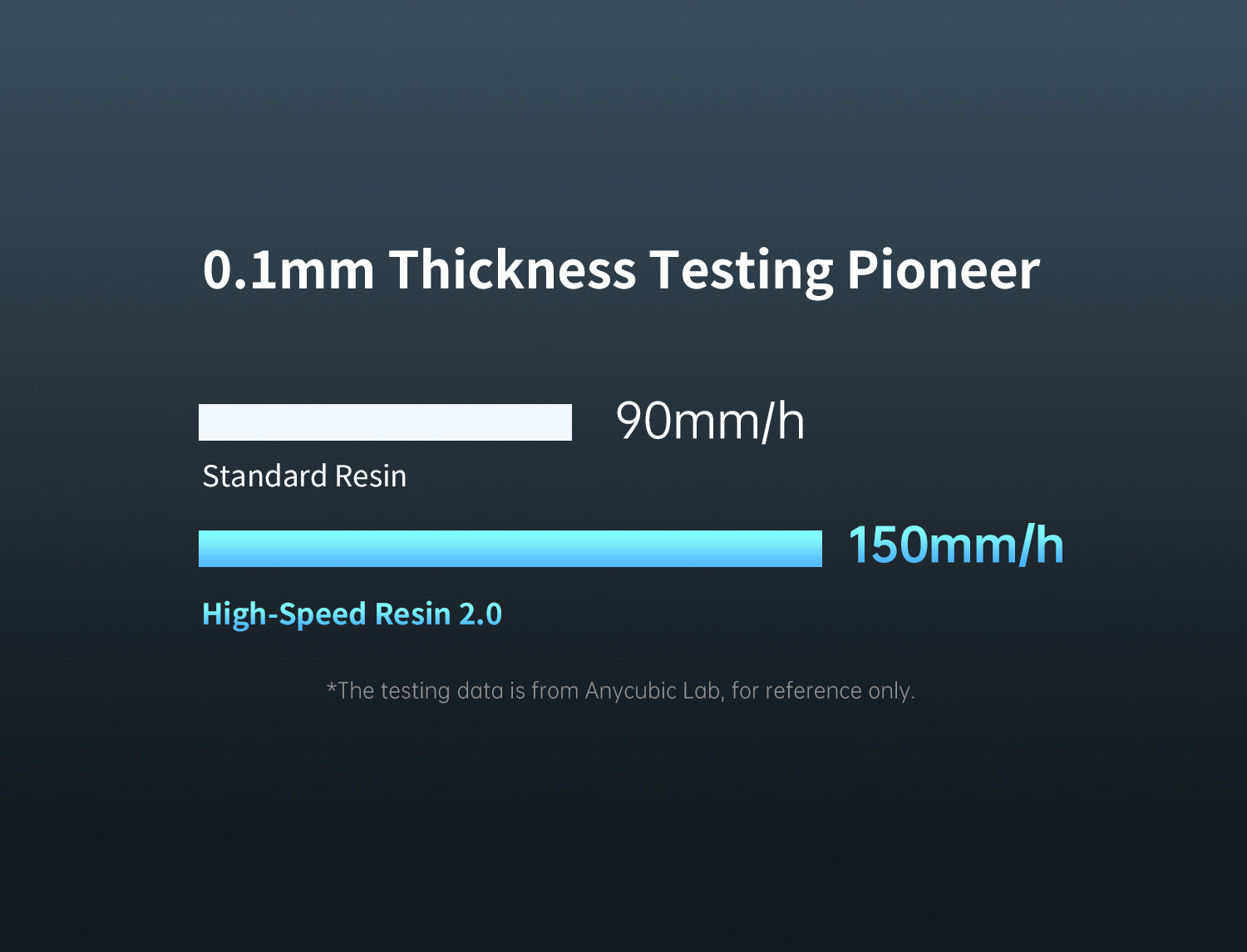

90mm/h for Even Standard Resin | 14K High-Precision Optical System | Intelligent Workflow-Assist Printing

A Perfect Match to Your Creativity

Making Each Beam of Light Precise & Uniform
The COB light source system,combined with Fresnel lenses and front-facing reflectors,precisely controls each beam of light within a 3° angle.

14K High-Resolution Exposure Screen
The 10.1-inch 14K exposure screen boasts a 13312*5120 resolution with highly detailed XY axis pixels, measuring just 16.8*24.8 microns. It offers a minimum forming diameter of 0.15mm and a minimum outlet diameter of 0.25mm.

Light Uniformity Algorithm, Precise Light Control
Equipped with a light uniformity algorithm, the light uniformity on the screen is ≥90%. achieve model accuracy errors of ± 0.01-0.05mm, and ensure full-face printing consistency.

Light-off Compensation Algorithm, Dynamic Light-off
With a light-off compensation algorithm, it adjusts light-off time based on exposure area and resin flow, ensuring successful layer exposure and detachment, boosting printing success rate.

Leveling Free
Automatic precise leveling and zeroing of the device, eliminating the need for manual leveling operations.

Failed Print Detection
When issues such as layer gaps, bottom dropouts, or detachment occur during the printing process, printing is automatically paused and a popup reminder is issued, facilitating timely adjustments to printing tasks, thus avoiding resin and time wastage. (*Layer gap and bottom dropout detection support a minimum area of 15*15mm.*)

Release Film Lifespan Management
Automatically monitor the number of times the release film is peeled off. Upon reaching 45,000 times, users are reminded to replace it promptly to avoid subsequent printing failures due to decreased release film performance

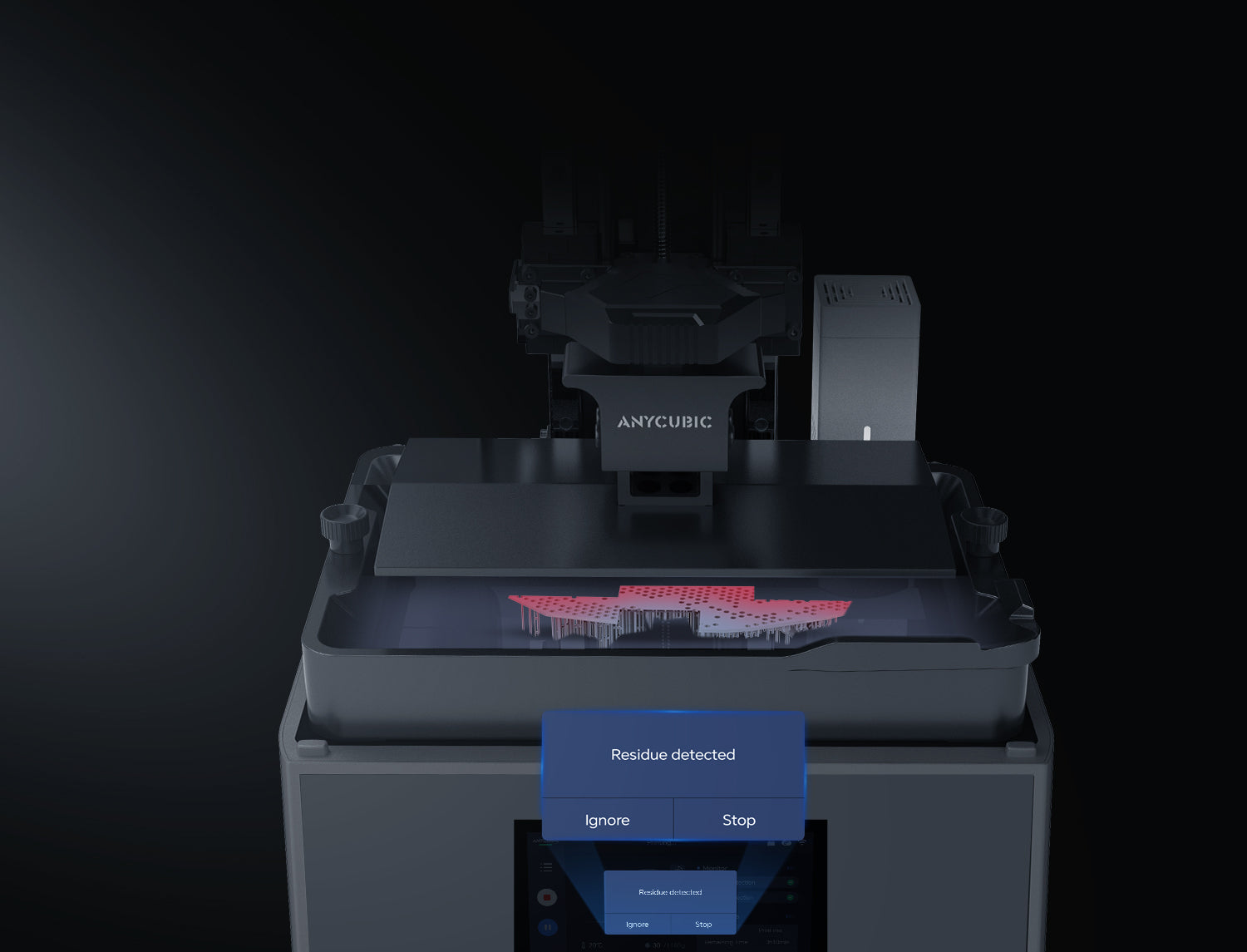

Residue Detection In The Resin Vat
Detect solid residues inside the resin vat and promptly alert the user with a pop-up window to avoid damage to the screen due to manual inspection oversights.

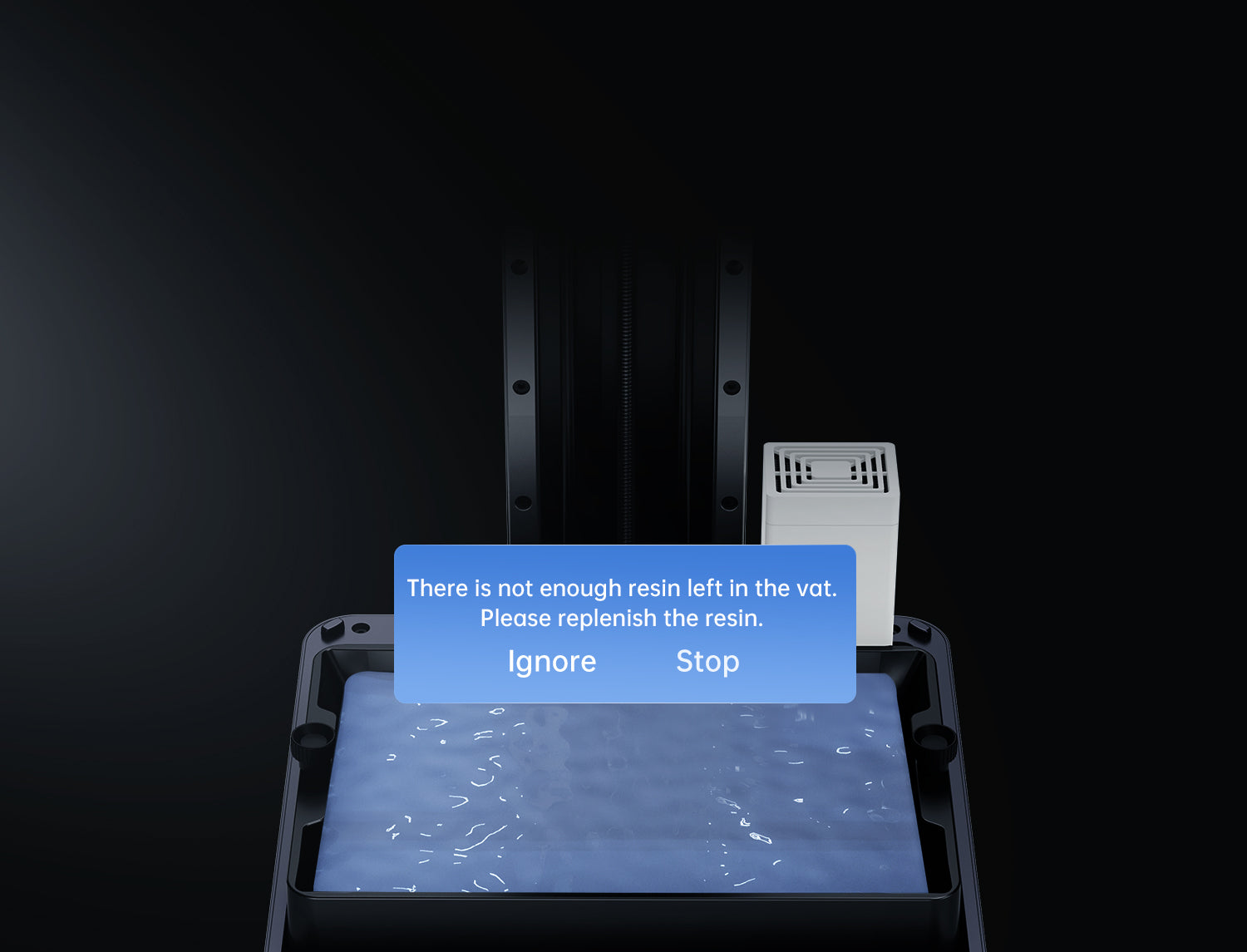

Resin Level Detection
When the resin level in the vat is below the amount required for slicing printing, users are reminded to refill it promptly.

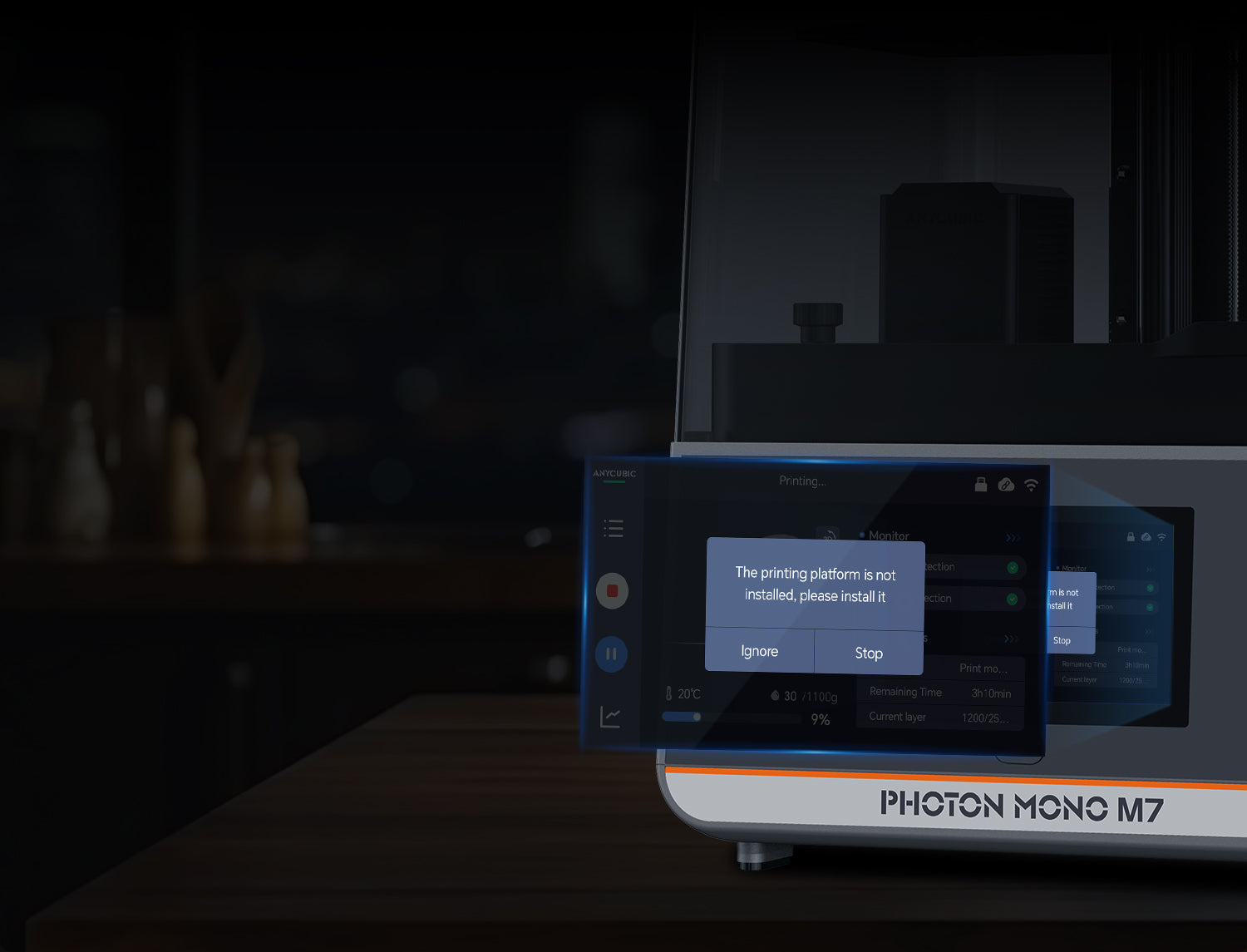

Platform Installation Status Detection
Quickly assess the platform’s installation status. In case of abnormalities, a pop-up reminder prompts timely adjustments.

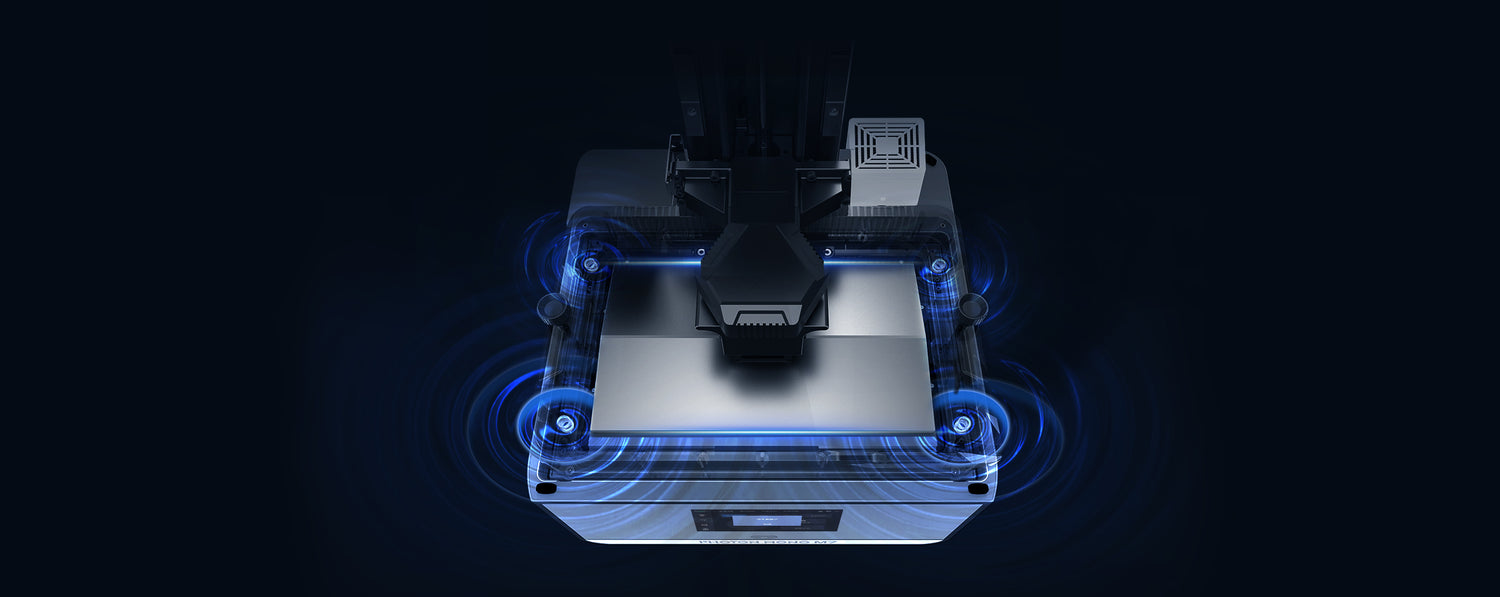

Component Connection Status Detection
Automatically check the status of release film and  Resin Auto-Fill Unit.

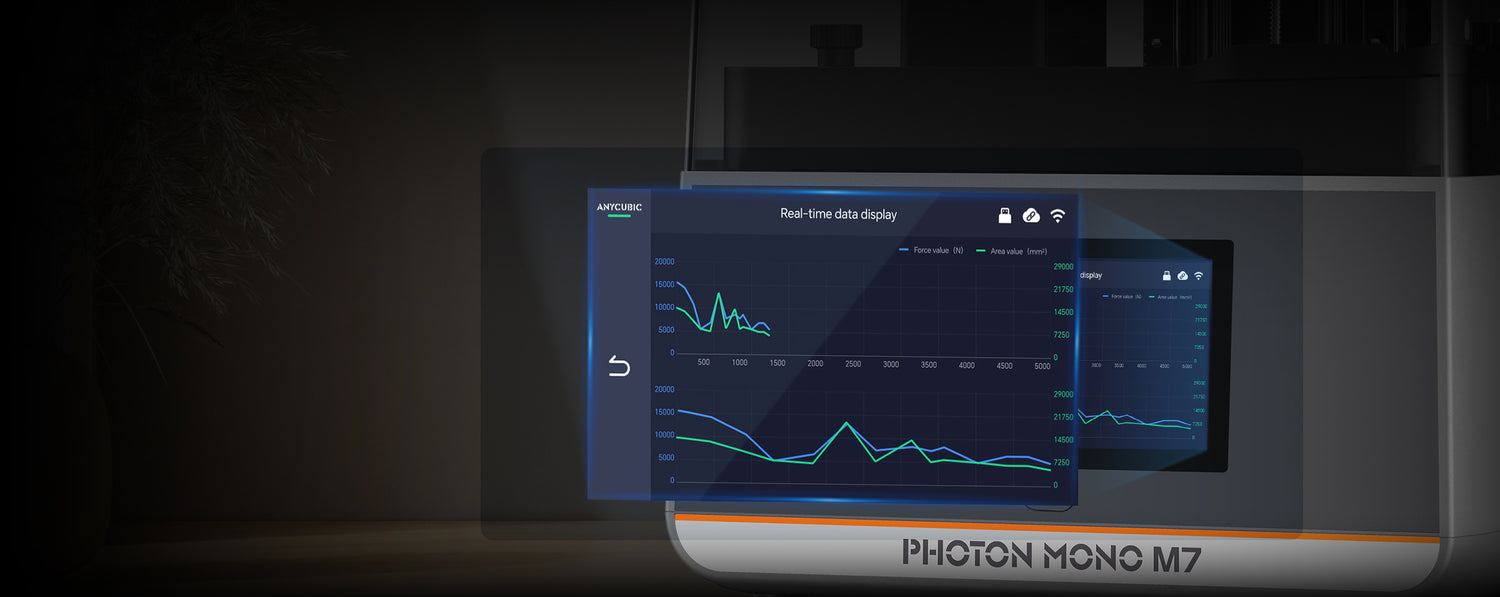

Real-time Sensing curves in printing status
Real-time presentation and monitoring of the printing area and release forse data of each model layer during printing.

Anycubic APP – 3D Printing In Just One Touch
Supports remote task from PC and Anycubic App, and USB for offline printing.Support complete 3D printing operations on the Anycubic APP.
Package Includes:
1 x Anycubic Photon Mono M7 – EU plug
