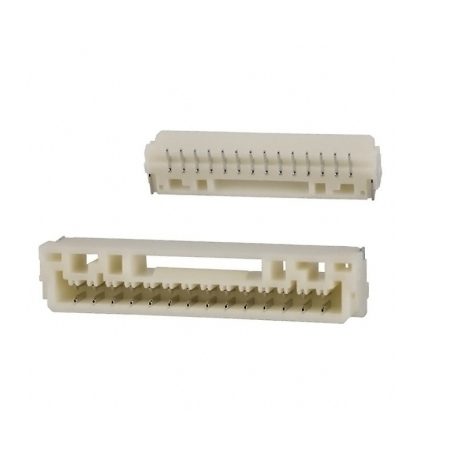

BM14B-GHS-TBT(LF)(SN)-JST-1x14P 14P GH Tin 14 -25℃~+85℃ 1A 1 1.25mm Phosphor Bronze Standing paste SMD,P=1.25mm Wire To Board Connector ROHS.1x14P 14P GH Tin 14 -25℃~+85℃ 1A 1 1.25mm Phosphor Bronze Standing paste SMD,P=1.25mm Wire To Board Connector ROHS
Note: Images for reference only.
Specifications:
Y-Width of Bottom Edge on Board: 4.32mm
Pins Structure: 1x14P
Number of Pins: 14P
Reference Series: GH
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 14
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 1A
Plastic Material: PA9T
Colour: White
Supplementary Features: Auxiliary soldering legs
Number of Rows: 1
Flame Retardant Rating: UL94V-0
Pitch: 1.25mm
Rated Voltage (Max): 50V
Contact Material: Phosphor Bronze
X-Length of Bottom Edge on Board (Spacing Line): 20.75mm
Z-Height of the Board: 4.05mm
Mounting Style: Standing paste
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x BM14B-GHS-TBT(LF)(SN)-JST-1x14P 14P GH Tin 14 -25℃~+85℃ 1A 1 1.25mm Phosphor Bronze Standing paste SMD,P=1.25mm Wire To Board Connector ROHS
